Perimeter Air Quality Monitors

Aeroqual outdoor air quality monitors provide continuous, simultaneous measurement of up to 20 different gaseous and particulate pollutants and environmental parameters in real-time. Aeroqual systems are portable, weatherpoof and reliable, arriving on your site pre-assembled and ready to monitor.

Product Comparison Table

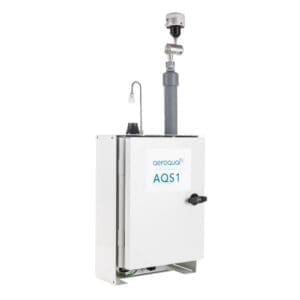

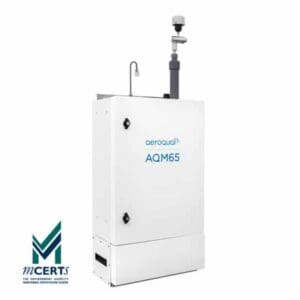

AQM65 AQM 65 AQS-1-PCX-Inside-1280x1280 AQS 1 Dust-Sentry-PM2.5-Dust-Monitor Dust Sentry Ranger-PMX-head Ranger HHS500L_2-3-1 S Series
Measurement Parameters PM1, PM2.5, PM10, TSP, O3, NO2, NOx, CO, SO2, VOC, H2S, CO2, CH4, BTEX, Noise, Meteorological PM1, PM2.5, PM4, PM10, TSP, O3, NO2, CO, SO2, VOC, H2S, CH4, Noise, Meteorological PM1, PM2.5, PM4, PM10, TSP, Noise, Meteorological PM1, PM2.5, PMrsp, PM10, TSP O3, NO2, CO, SO2, VOC, H2S, CO2, Formaldehyde, Ammonia, CI2, CH4, H2, NMHC, C2CI4 PM2.5, PM10 O3, NO2, CO, SO2, VOC, H2S, CO2, Formaldehyde, Ammonia, CI2, CH4, H2, NMHC, C2CI4, T/RH
Power Supply Mains recommended Mains, solar, battery Mains, solar, battery Mains, battery (>20 hours) Mains, battery (>6 hours)
Operating Range -35°C to +50°C
-31°F to +122°F
-10°C to +45°C
14°F to +113°F (low temp extendable with winterization kit)
-10°C to +45°C
14°F to +113°F
(low temp extendable with winterization kit)
10°C to +40°C
-14°F to +104°F
-5°C to +45°C
23°F to +113°F
Key Features
  • Near reference gas and PM measurement
  • Patented ABC gas module technology
  • Thermally controlled enclosure
  • Extended environmental operating range
  • Heated PM inlet
  • Choice of multi-channel OPC or Nephelometer
  • Near reference gas and PM measurement
  • Patented ABC gas module technology
  • Multi-channel PCX or Nephelometer with cyclone
  • Heated PM inlet
  • PM flow measurement and regulation1
  • Near-reference PM measurement
  • Multi-channel PCX or Nephelometer with cyclone
  • Heated PM inlet
  • PM flow measurement and regulation1
  • Real-time, active-sampling handheld monitor
  • Can be configured with a wide range of swappable sensor heads
  • Multichannel OPC for PM
  • 20+ hour battery
  • Large display
  • Remote monitoring and alerts
  • Wi-Fi and USB data transfer
  • Real-time, active-sampling handheld monitor
  • Can be configured with a wide range of swappable sensor heads
  • 6+ hour battery
  • RS-232 USB data transfer
IP Rating IP65 IP65 IP65 IP20 IP20
Weight < 30 kg; < 65 lb < 13 kg; < 28.6 lb < 13 kg; < 28.6 lb < 430 g; < 15 oz < 460 g; < 16 oz (with sensor head & battery)
Software / Connectivity Cloud via Wi-Fi/Cellular Cloud via Wi-Fi/Cellular Cloud via Wi-Fi/Cellular Cloud via Wi-Fi; USB RS-232 to USB
System Design Life (with routine servicing and maintenance) 10 years 10 years 10 years 10 years 5 years
Sampling Method Pump Pump Pump Fan Fan
Calibration Factory/Lab; Co-location; MOMA; Calibration gas Factory/Lab; Co-location; MOMA; Calibration gas Factory/Lab; Co-location; MOMA Factory/Lab; Hot-swap Factory/Lab; Hot-swap
Approvals PM10 MCERTS PM2.52, PM10 MCERTS, Rule 1466 PM2.52, PM10 MCERTS, Rule 1466
1Only available on PCX equipped instruments.
2Certification Pending
Aeroqual AQM 65 Datasheet Aeroqual AQS1 Datasheet Aeroqual Dust Sentry Datasheet Ranger Spec Sheet Portable Air Quality Monitors

Our Methodology - How We Work With You

Step 1

Discovery

We begin by learning details of your projects, including timeframe, regulations, potential issues, budget and other requirements

Step 2

Development

Once we understand your needs, we develop a complete, turnkey solution with hardware and software that will not onlu meet, but exceed your requirements, keeping both the budget and timeframe in mind.

Step 3

Implementation

We support you every step of the way, providing hands-on equipment and software training for your team to ensure that your monitoring program is successful
