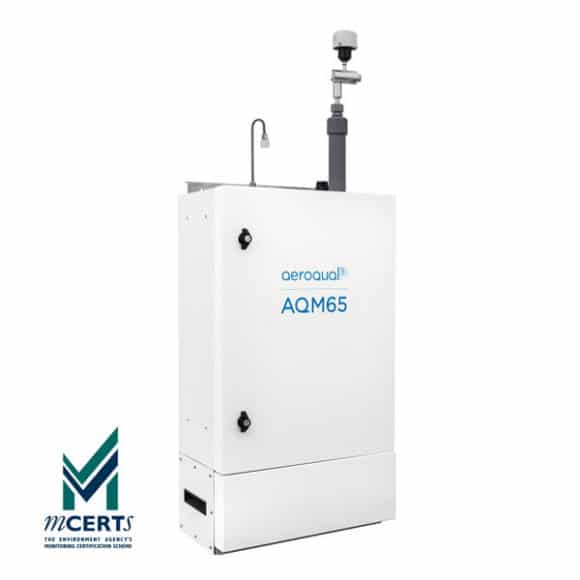

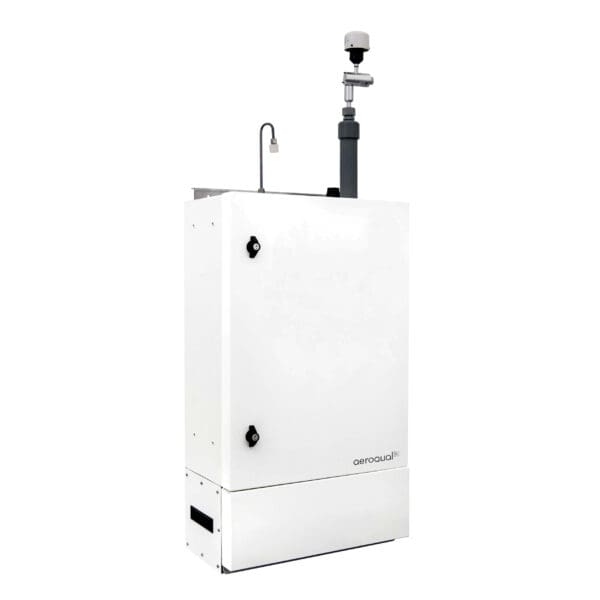

Aeroqual AQM 65 Ambient Air Monitoring Station

Aeroqual AQM 65 Ambient Air Monitoring Station

  • Aeroqual AQM 65 Ambient Air Monitoring Station measures up to 20 different gaseous, particulate pollutants and environmental parameters simultaneously and in real-time
  • Provides real-time measurement of common pollutants to WHO air quality standards
Description

Aeroqual AQM 65 Ambient Air Monitoring Station from Specto Technology

Specto Technology is proud to offer you the Aeroqual AQM 65 – a fully integrated, compact air monitoring station that delivers Near Reference levels of performance for 3-5 times less cost than traditional reference stations built on analyzers. It can measure up to 20 different gaseous and particulate pollutants and environmental parameters simultaneously.

PRODUCT FEATURES:

  • Real-time measurement of common pollutants to WHO air quality standards
  • Measures criteria pollutants: ozone (O3), nitrogen dioxide (NO2), nitrogen oxides (NOx), carbon monoxide (CO), sulfur dioxide (SO2), particulate matter (TSP, PM10, PM2.5, PM1)
  • Measures other special interest pollutants: volatile organic compounds (VOC), hydrogen sulfide (H2S), carbon dioxide (CO2)
  • Monitors noise and meteorological parameters such as temperature, humidity, wind speed and direction, barometric pressure, precipitation and solar radiation
  • Can be installed by one person in less than 30 minutes
  • Remote data acquisition system with fail safe on board storage
  • Network mode for urban and national air monitoring
  • Modularity allows addition of sensors as needs change
  • Temperature control permits long-term operation in extreme climates
  • Can be calibrated onsite to traceable reference standards

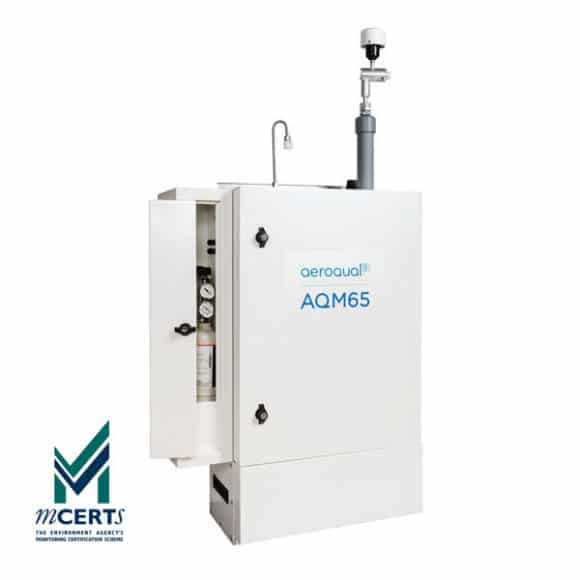

  • Integrated and automatic calibration (optional)
  • Plug and play environmental sensors (optional)

PRODUCT BENEFITS:

  • Continuously measure up to 10 common air pollutants
  • Continuously monitor up to 10 different environmental parameters
  • Ensures air quality data is reliable and robust, and traceable back to recognized international standards [USEPA (40 CFR Part 53) and EU (2008/50/EC)].
  • Secure wireless communications and a cloud-based user interface let you retrieve data remotely in real-time
  • Compact size opens up new monitoring locations and applications
  • Easy to move from one location to another; install and start measuring in under an hour
  • Can be mounted to a small vehicle for mobile monitoring
  • Measure, log, report and respond all in real-time
  • Remotely configure, diagnose, and adapt via online user interface
  • Modular design allows for ease of maintenance and repairs
  • 1ppb detection of O3, NO2, NOx; <10ppb for SO2, H2S, and VOCs
  • Pre-approved for Rule 1466 compliance by SCAQMD, USA
  • May be used to monitor in accordance with NY DER-10 regulations

TYPICAL APPLICATIONS INCLUDE:

  • Urban air monitoring networks
  • National air monitoring networks
  • Roadside air monitoring
  • Industrial perimeter monitoring
  • Mobile vehicle-mounted monitoring
  • Environmental impact assessments
  • Air Quality Research/Community Exposure Studies
  • Research and consultancy projects
  • Short term hot spot monitoring

CLICK HERE to view our full line of Aeroqual Products.

To view an AQM 65 Case Study, click here.

Video

Downloads

Additional Information on Aeroqual AQM 65

  • With the AQM 65 air quality monitor you can measure outdoor air pollutants in real-time with high data quality, at a price you can afford.
  • The AQM 65 air quality monitoring system offers the optimal balance between performance and price – measuring criteria pollutants to WHO air quality limits yet costing 3-5 times less than a traditional station based on analyzer technology.
  • Compared to cheap alternatives this air pollution monitoring device offers much higher levels of data quality and can be calibrated in the field against certified reference standards for maximum traceability.
  • Simultaneous gas, particulate and environmental data monitoring are benefits of this air pollution monitoring system.
  • The AQM 65 air pollution monitoring tool continuously measures common air pollutants including ozone (O3), nitrogen dioxide (NO2), nitrogen oxides (NOx), carbon monoxide (Co), sulfur dioxide (SO2), volatile organic compounds (VOC), hydrogen sulfide (H2S), carbon dioxide (CO2), particulate matter (TSP, PM10, PM2.5, PM1) and noise.
  • Continuously monitor up to 10 different environmental parameters such as rainfall, temperature, humidity, pressure, wind speed and direction with this ambient air quality monitor.
  • The compact size of this dust analyzer has numerous advantages. The unit can be transported by car, carried by two people, and installed and operational in under 30 minutes.
  • Because the enclosure for this particulate monitor is small, the energy required to temperature control it is much lower than for a traditional air quality monitoring station. Lower power consumption opens up the possibility of remote power supply and further decreases the total cost of ownership of the air monitoring equipment.
  • Modular design of the AQM 65 environmental monitoring system increases flexibility and makes maintenance and servicing easy.
  • You can order your AQM 65 air quality monitoring system with as many or as few sensors as you like – then purchase additional sensors when you need them.

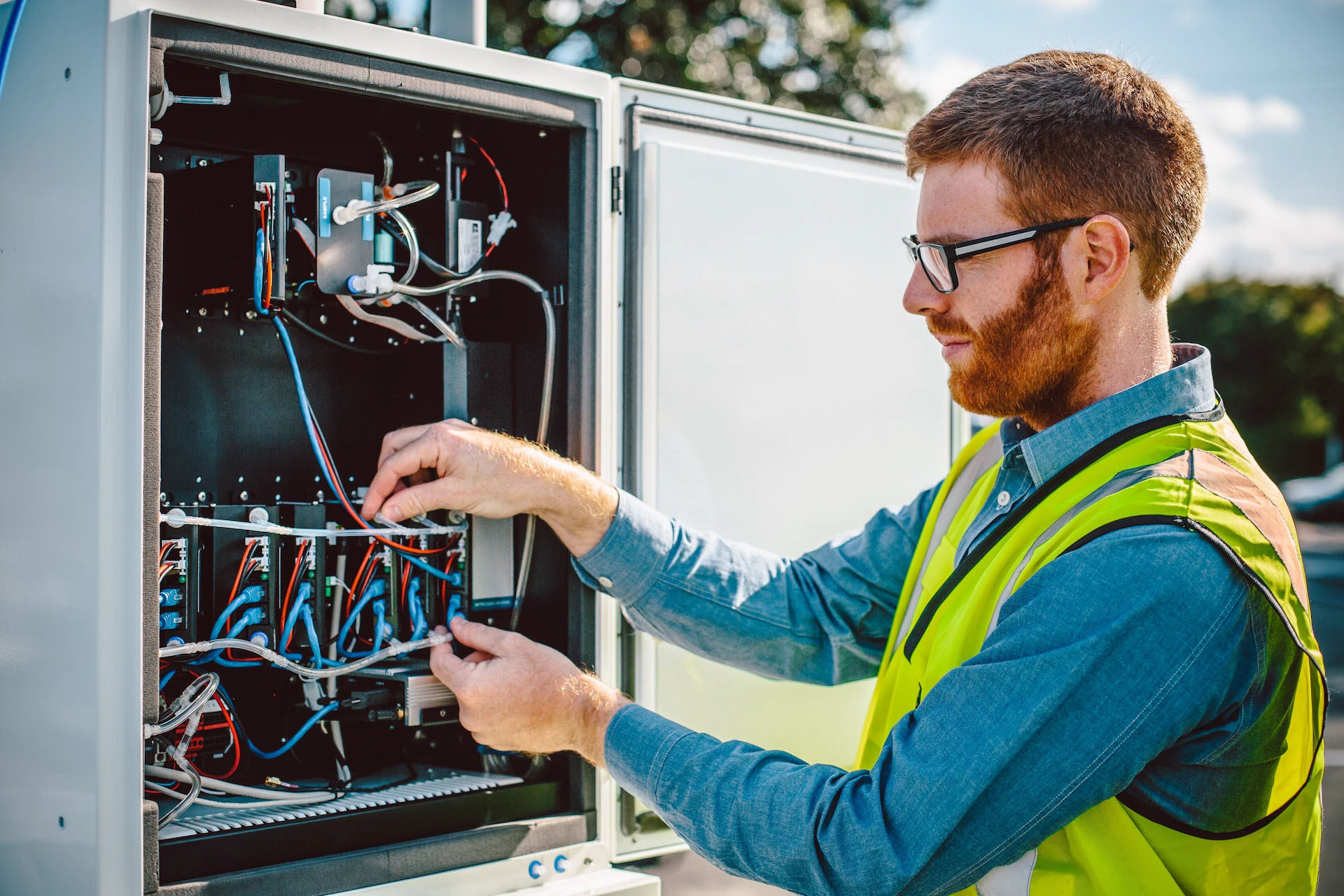

  • The sensors on this pollution analyzer, which are packaged in modules, can be individually removed from the enclosure and sent away for servicing or simply swapped out for a new one.
  • In a network you can also move sensor modules from one air quality monitoring location to another according to your needs.
  • Once the air pollution monitoring instrument operating system is installed- Aeroqual Connect – lets you access data, assess performance and diagnose faults remotely.
  • Online dust monitoring systems let you view data remotely in real-time on PC, tablet, or phone.
  • The AQM 65 air pollution monitoring instrument is a fully integrated system installed and supported by a global service network.
  • Lockable IP65 enclosure with insulated aluminum construction protect the dust monitoring instruments.
  • The AQM 65 air pollution measuring device includes a Gas Sampling System (brushless DC pump, sampling system).
  • A Thermal Management System with Danfoss compressor, heater and TMS controller is also a feature of Aeroqual’s AQM 65 environmental monitoring system.
  • This pollution analyzer utilizes a 90-264 VAC, 47-63Hz Power Module.
  • The External Temperature & Humidity Sensor in this dust monitoring system can measure temperatures from -40 to 120° C and relative humidity from0-100%.
  • The AQM 65 dust measuring devices include free unlimited access to Aeroqual’s online training system.
  • These ambient air quality monitors include web-based data and diagnostics software.
  • The AQM 65 air monitoring equipment is perfect for industrial perimeter monitoring including petrochemical, power plants, waste sites, mining, heavy industry, airports, ports, railways, construction sites.
  • These air pollution monitoring systems are also ideal for near road/roadside air monitoring: motorways, street canyons, traffic information systems.
  • The air pollution monitoring tools are used to measure community exposure: epidemiological studies, microenvironment, residential, schools, hospitals.
  • The AQM 65 dust monitoring system is supported by a global distribution network, meaning you’re never too far from a skilled technician ready to provide assistance and spare parts.
  • In addition Aeroqual’s online training system is free to all our customers, meaning you can become an expert on your AQM online dust monitoring system before it even arrives.
  • Aeroqual Dust Sentry is pre-approved for Rule 1466 compliance by SCAQMD, USA. This rule applies PM10 as a surrogate for determining maximum fugitive airborne concentrations of metals and polycyclic aromatic hydrocarbons.
  • Aeroqual Dust Sentry may be used to monitor in accordance with NY DER-10 regulations.
