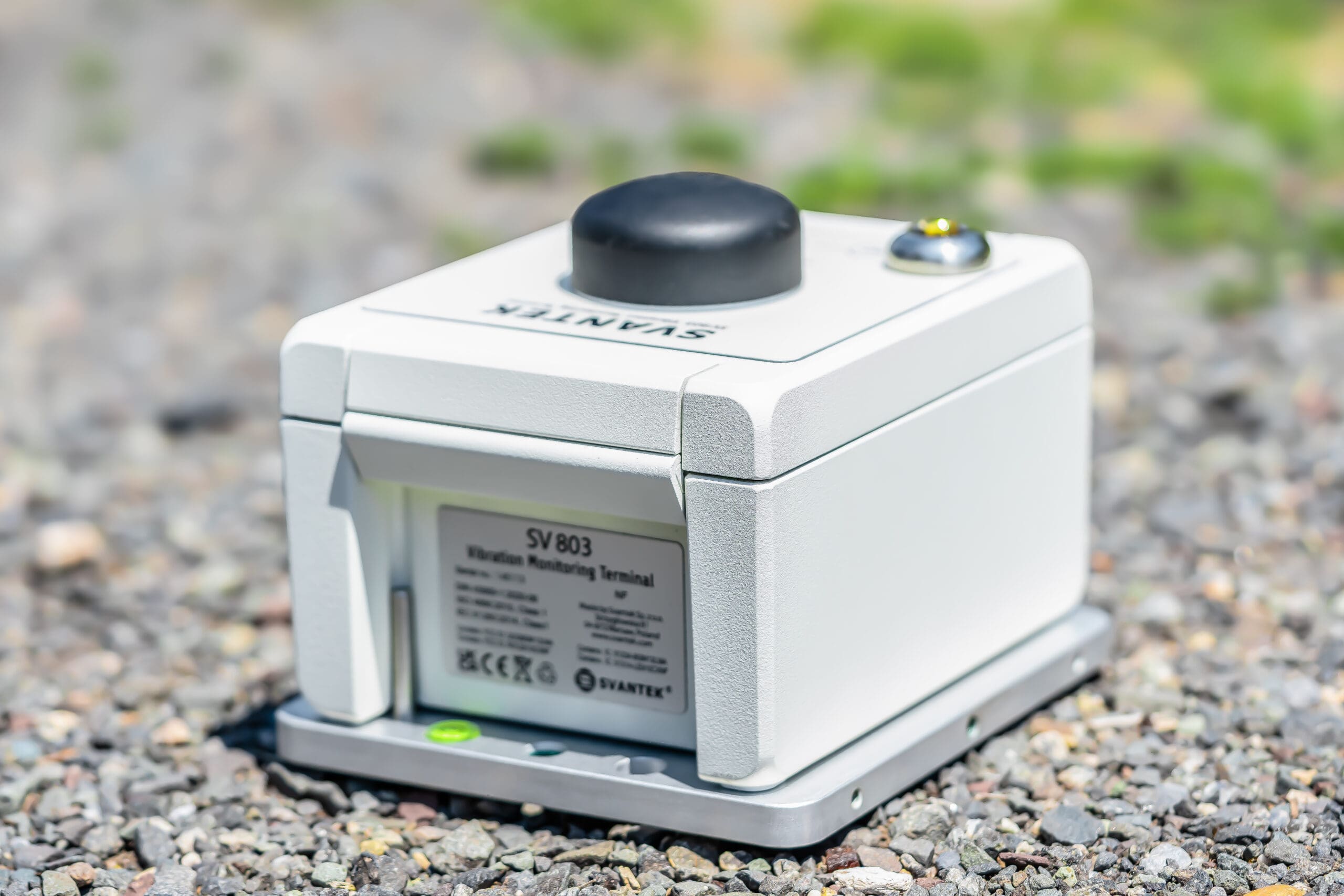

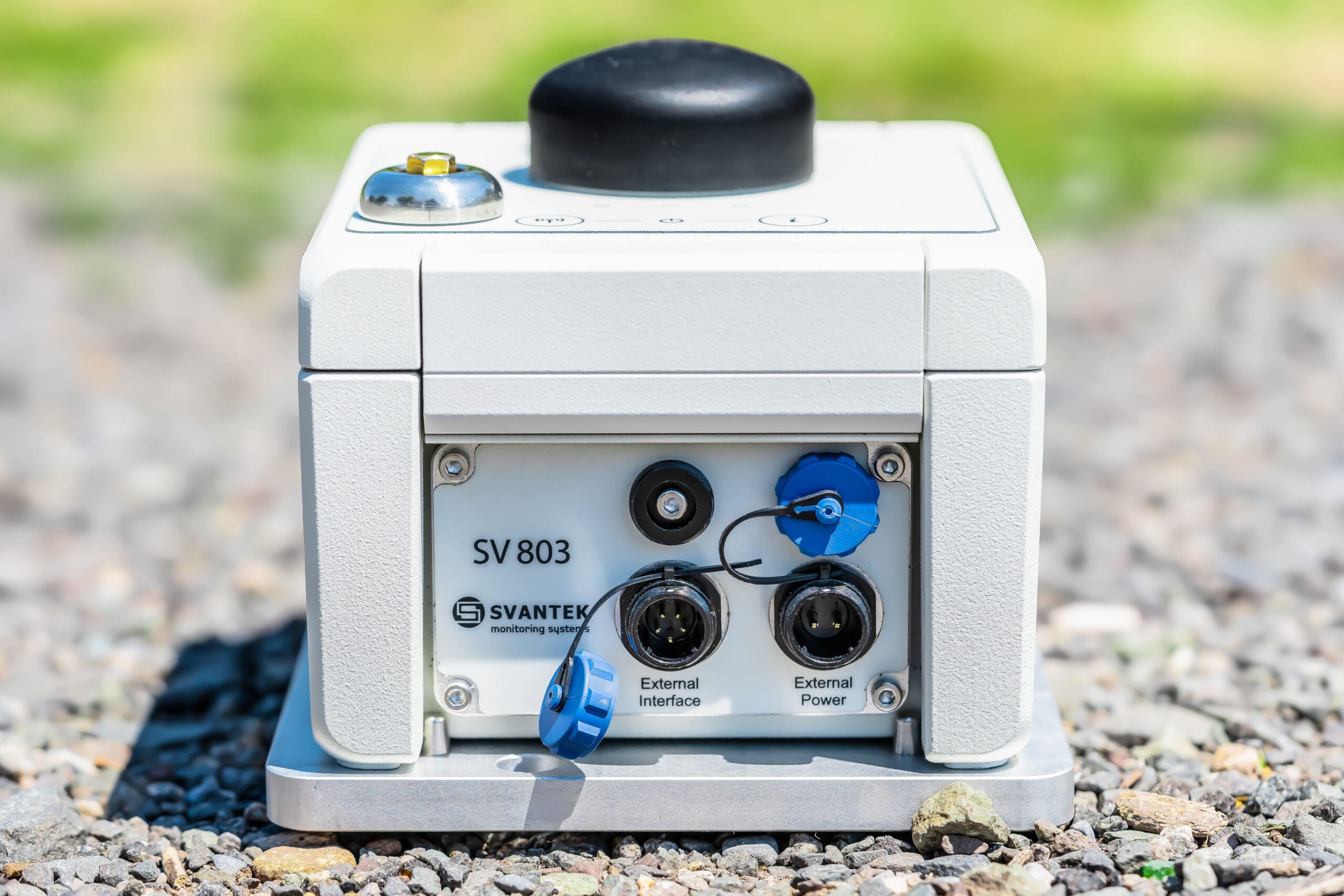

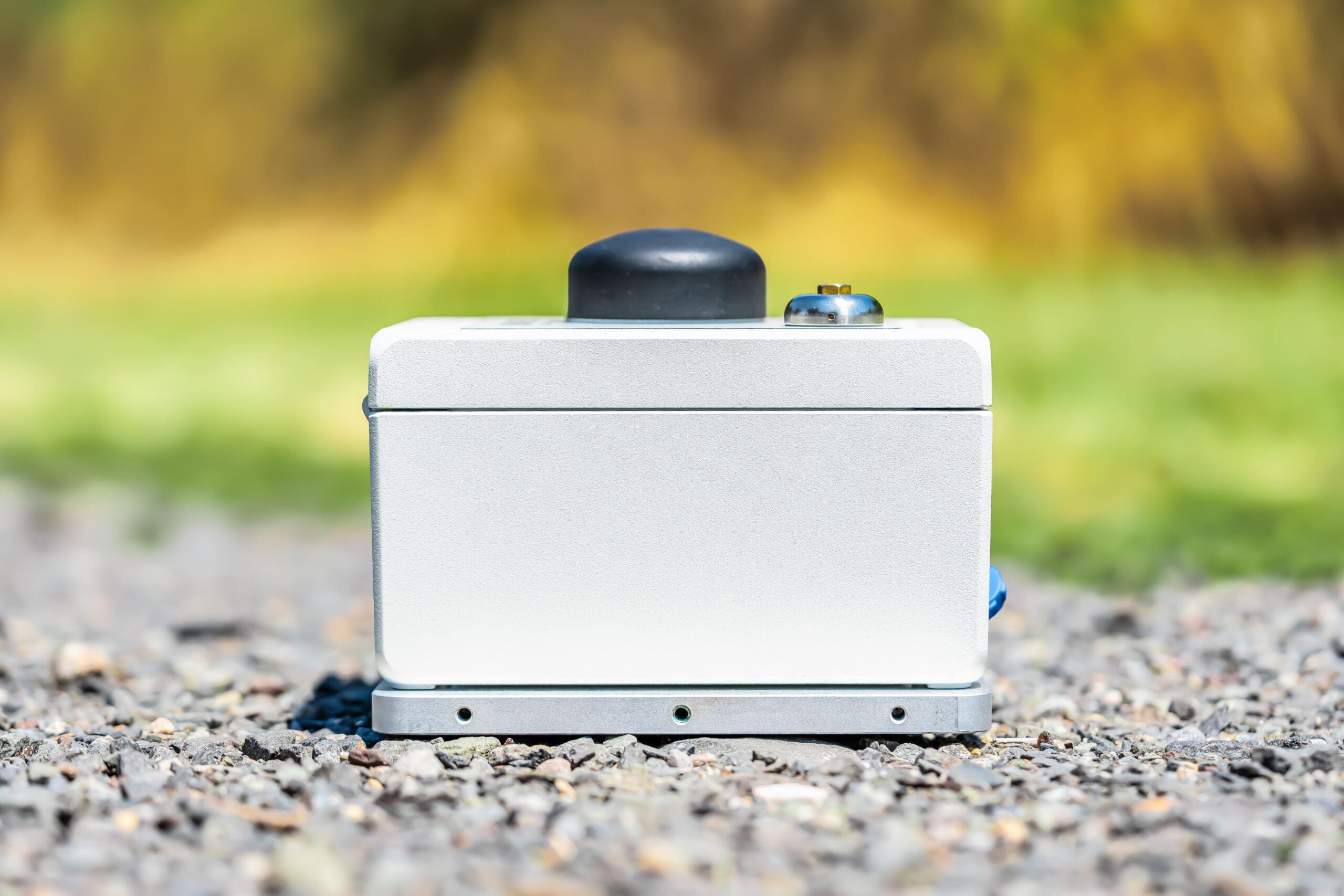

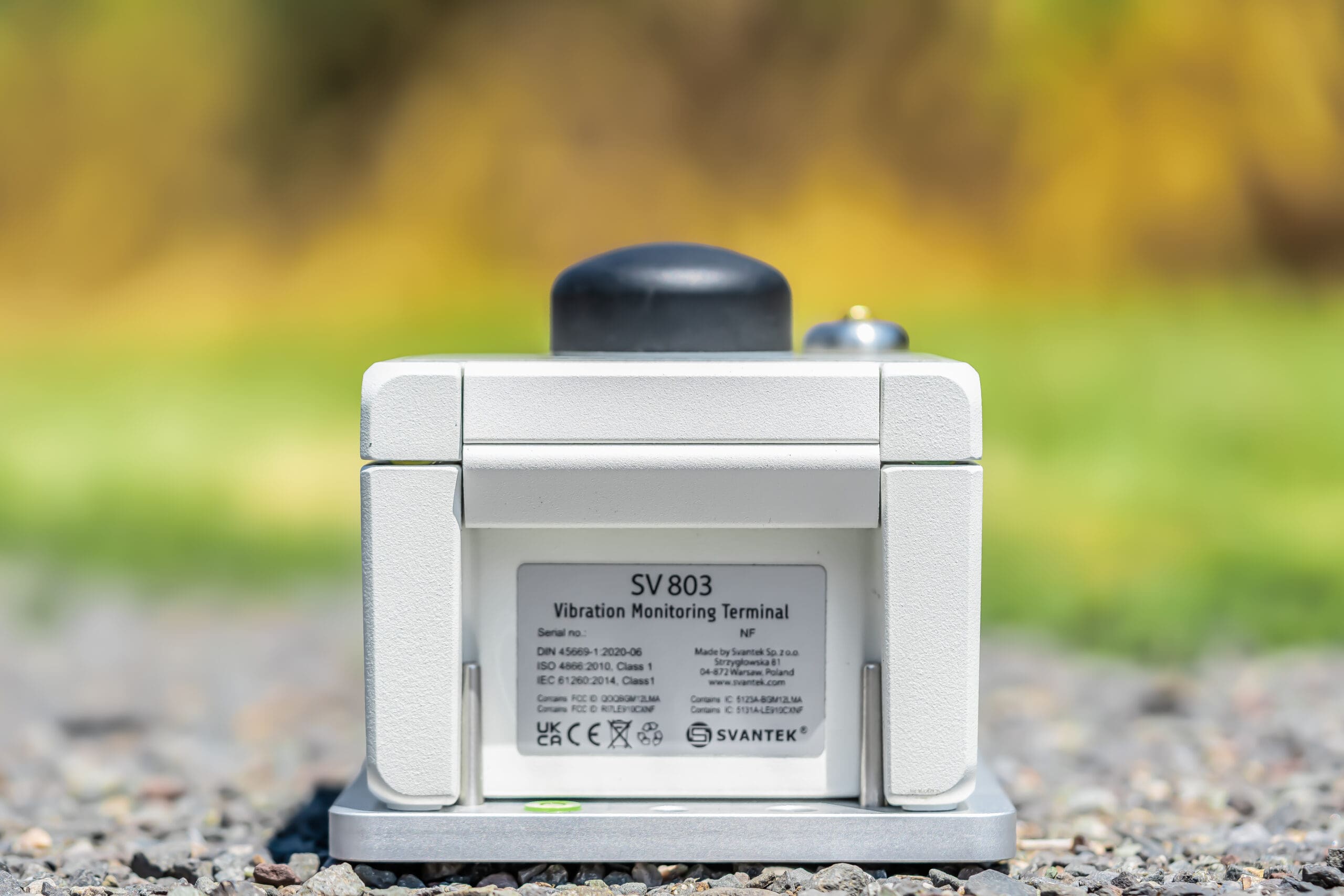

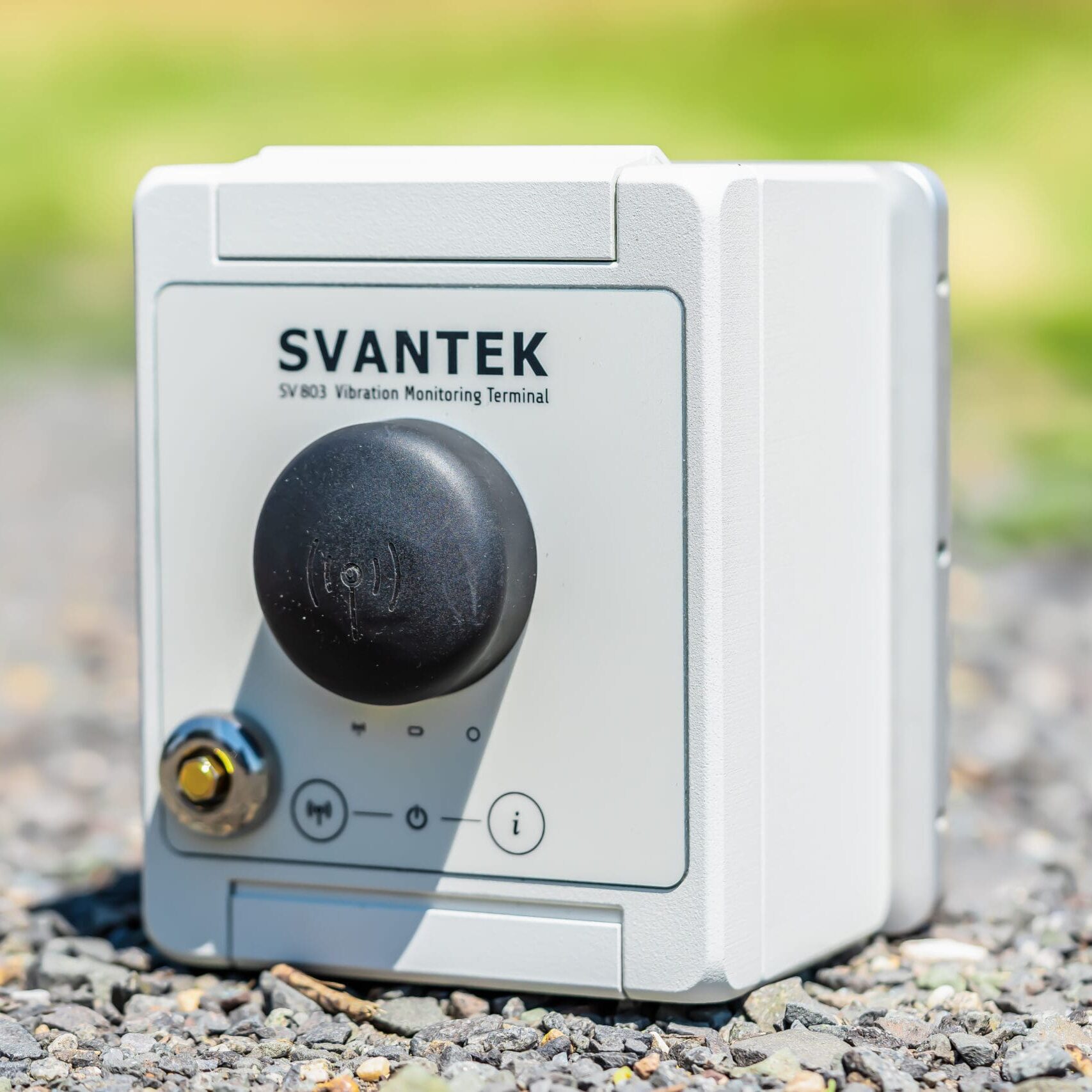

SV 803 Wireless Vibration Monitor

Product Information

The SV 803, a new wireless vibration monitor from Svantek, represents the cutting edge of high-technology monitoring devices. Specifically designed for wireless vibration monitoring of both building and ground vibrations in a variety of environmental conditions, this device utilizes geophones as its primary vibration sensors. Geophones are well-known for their high sensitivity and, more importantly, their minimal impact on battery life. This means that the SV 803 can measure vibrations for prolonged periods without the need for frequent battery charging. The vibration monitoring terminal features a battery life of up to 6 months and, when connected to a solar panel, it can sustain ongoing operation.

Class 1 wireless vibration monitoring system

The new SV 803 vibration monitor has been engineered to meet the rigorous performance specifications of Class 1 as outlined in ISO 4866, BS 7385-1, and DIN 45669-1. These superior specifications enable the device to conduct building and ground vibration monitoring in accordance with measurement techniques outlined in DIN 4150-3 and BS 7385-2. The Class 1 classification of the device makes it an ideal choice for both engineering analysis and field monitoring, as it can provide reliable and accurate measurements.

PRODUCT FEATURES:

• Triaxial Vibration Monitoring
• Weatherproof outdoor monitoring system
• Peak Particle Velocity (PPV) and PPV Vector Sum are measured simultaneously in THREE AXES and logged in the time history
• Station is fully configurable to measurement of human vibration in buildings in accordance DIN 4150-2 and BS 6472-1
• GPS, 4G modem, Bluetooth and Vibration sensors
• Cloud based data management with SvanNET (4G/WiFi)
• If you can’t find the vibration standard on the list of implemented ones, you can always input customized values to create a criterion curve based on FFT or 1/3 octave spectrum (RMS, PEAK or MAX)
• With WAV analysis software you can search for peaks and calculate FFT or 1/3 octave spectrum on selected time periods and calculate various other parameters using the raw WAV signal
• Custom reporting tools for complex projects

PRODUCT BENEFITS:

• Easy to install and operate – save time in the field
• Long Battery Life and Solar Panel Powering. It can run up to 6 months on batteries. Station can be powered from internal battery or outdoor DC power supply and is ready for direct connection of solar panel
• Reporting tool allows full customization for any project
• SMS/Email alerting system when project noise levels are exceeded
• Alerts for system health and theft
• Advanced data analysis and editing for acoustic professionals

TYPICAL APPLICATIONS INCLUDE:

• Construction
• Blasting
• Demolitions
• Pile Driving
• Compaction
• Heavy Transportation
• Environmental Monitoring
• Tunnels and Subways
• Sound/Noise Monitoring
• Structural Monitoring
• Bridges
