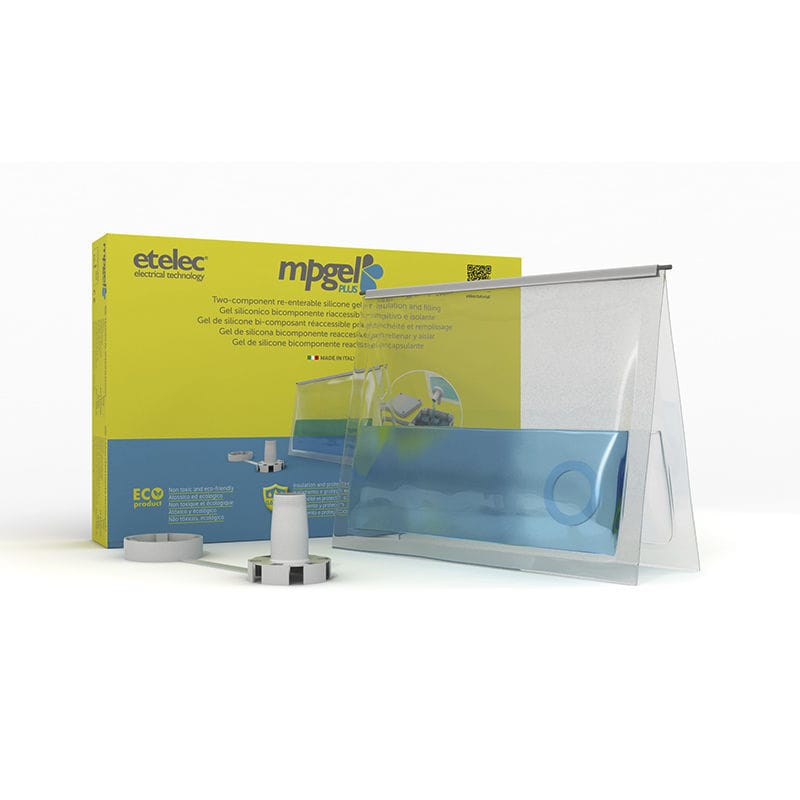

Etelec MPgel Plus [0.42 Liters/14 oz] Electrical Reenterable Encapsulating Potting Gel Seal Compound (Two Components)

$25.00

  • 0.42 Liters (14oz) – Re-enterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components.

158 in stock (can be backordered)

SKU: ET-MP420 Categories: , ,
Description

Reenterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components.| Waterproof, dust Protection, Electrical Insulation, Critter proofing

Additional Information
Weight 1.25 lbs
Dimensions 10 × 6.75 × 2 in
Shop

Shop

$25.00Add to cart

Free Shipping |
Minimum purchase of 5 qty required | 158 available
$350.00/Box of 16
Product Information

Product Information

Etelec MPGel Plus from Specto Technology

Specto Technology is proud to offer you Etelec MPgel Plus [1 Liter/1 qt]: Electrical Reenterable Encapsulating Potting Gel Seal Compound (Two Part)

MPgel plus is a reenterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components, suitable for a wide range of applications and industries.

MPgel is a better alternative to resins because of shorter hardening/cross-linking time than resins and easy 1:1 mixing ratio.

PRODUCT FEATURES:

  • Very fast cross-linking: Cross-linking time: 12 min at 23° C
  • Dielectric strength: 25.5 kV/mm
  • Mixing ratio 1:1
  • Working time at 23° C: 5 min
  • Operating temperature: -60 to 200° C
  • Color: pale blue Classified as non-hazardous according to European Regulation no. 1272/2008 (CLP)
  • No waste thanks to PPS Suitable when a limited amount of product is needed

PRODUCT BENEFITS:

  • Simple – The two components are supplied in separate containers, thus ensuring the correct 1:1 mixing ratio. MPgel plus may be partially used as needed, and reused even after the pack has been opened, providing maximum yield.
  • Rapid cross-linking – MPgel plus has an extremely short cross-linking time, allowing rapid installation and reducing delays before activation.
  • Non-toxic
  • Re-enterable
  • Eco-friendly
  • Easy pouring
  • Very fast cross-linking
  • Excellent electrical insulation
  • Good mechanical resistance
  • UV resistant
  • Protection from elements (rain, moisture), dust, animals, insects, leaves
  • No expiration date
  • Reusable after opening

TYPICAL APPLICATIONS INCLUDE:

  • Filling junction boxes Insulation of 0.6/1 kV electrical connections
  • Insulation of electronic boards and components
  • FILL, ENCAPSULATION, POTTING: Filling junction boxes. Encapsulating or potting electrical components or enclosures. Encapsulating electronic boards and components
  • INSULATION: Insulation of 0.6/1 kV electrical connections
  • BURIED & SUBMERGED: Buried, submerged, or exposed electronics.
  • INDUSTRIES: Electrical contracting Telecommunications Manufacturing Robotics Marine and Aquatics DIY Electronics
  • PROTECTION: Water protection, dust protection, electrical / thermal insulation, flame resistance, critter proofing.

Video



Downloads

Downloads

MPGel Datasheet

Additional Information on Etelec MPGel Plus

  • The two components of these quick setting potting gels are supplied in separate containers, thus ensuring the correct 1:1 mixing ratio.
  • MPgel PLUS waterproof silicone gels for electronics may be partially used as needed, and reused even after the pack of fast setting potting gels has been opened, providing maximum yield.
  • The measuring jug provided with the 1 and 10-liter sizes of these fast setting encapsulants ensures accurate mixing and prevents waste.
  • The MPgel 100 silicone sealants are supplied with a new 1 liter jug, which allows you to mix the entire contents of the bottles in one go, making installation of these room temperature cure potting gels even faster.
  • MPgel bags are provided with a special Perforation Pouring System (PPS) which allows the operator to avoid contact with the quick setting silicon potting gel when opening it.
  • These fast setting silicone gels containers feature a nozzle that has a toothed cylindrical end that fits securely into a ring inside the bag and punctures it, allowing the waterproof gel for electrical connectors to flow evenly without accidental spills.
  • MPgel PLUS quick drying silicone encapsulants have extremely short cross-linking time, allowing rapid installation and reducing delays before activation of the waterproof potting gels.
  • Their low viscosity makes these room temperature cure waterproof encapsulants easy to pour and also ensures fast and safe filling of the containers and gaps.
  • Once cross-linked, silicone encapsulates for electronics can easily be removed without the need for tools even after long periods of time.
  • The MPgel fast curing silicone gels for electronics have High dielectric strength (25.5 kV/mm).
  • These liquid silicone gels for electronics operate in a wide range of temperatures (-60 to 200° C).
  • MPgel plus quick setting waterproof encapsulants are resistant to UV rays enabling them to be used outdoors and exposed to the elements.
  • MPgel PLUS is non-toxic, non-irritating, odorless, and solvent-free fast setting potting encapsulant that is classified as non-hazardous under European Regulation no. 1272/2008 (CLP).
  • MPgel plus, an electrical waterproofing compound, is resistant to UV rays can be used indoors as room temperature cure encapsulants or outdoors where they are exposed to the elements.
  • These quick drying potting gels are available in bags with removable baffle, in bottles of different sizes, and in jerrycans, for efficient use whatever the quantity of potting silicone required.
  • Bottle kits of the MPgel fast curing silicone gels for electronics include 2 transparent 150 ml or 500 ml bottles and 1 liter measuring jug.
  • Jerrycan kit includes two transparent 5 liter jerrycans which are suitable when a large amount of electrical insulating gel is needed and/or for later use.
  • These electrical silicone gels are non-toxic, re-enterable, and eco-friendly.
  • This gel for electric connections provides very fast cross-linking, excellent electrical insulation and good mechanical resistance.
  • The MPgel waterproof room temperature cure potting encapsulants are reusable after opening and never expire.
  • These easy pouring, two part liquid silicone gels are UV resistant.
  • Waterproof silicone potting compounds provide protection from the elements (rain, moisture), dust, animals, insects, and leaves.
