Etelec MPgel Plus [10 Liters/2.6 qt] Electrical Reenterable Encapsulating Potting Gel Seal Compoun
10 Liters (2.6 gal) – Re-enterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components.
Reenterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components.| Waterproof, dust Protection, Electrical Insulation, Critter proofing
Specto Technology is proud to offer you Etelec MPgel Plus [10 Liter/2.6 gals]: Electrical Reenterable Encapsulating Potting Gel Seal Compound (Two Part)
MPgel plus is a reenterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components, suitable for a wide range of applications and industries.
MPgel is a better alternative to resins because of shorter hardening/cross-linking time than resins and easy 1:1 mixing ratio.
Very fast cross-linking: Cross-linking time: 12 min at 23° C
Dielectric strength: 25.5 kV/mm
Mixing ratio 1:1
Working time at 23° C: 5 min
Operating temperature: -60 to 200° C
Color: pale blue Classified as non-hazardous according to European Regulation no. 1272/2008 (CLP)
No waste thanks to PPS Suitable when a limited amount of product is needed
Simple – The two components are supplied in separate containers, thus ensuring the correct 1:1 mixing ratio. MPgel plus may be partially used as needed, and reused even after the pack has been opened, providing maximum yield.
Rapid cross-linking – MPgel plus has an extremely short cross-linking time, allowing rapid installation and reducing delays before activation.
Very fast cross-linking
Excellent electrical insulation
Good mechanical resistance
Protection from elements (rain, moisture), dust, animals, insects, leaves
No expiration date
Reusable after opening
TYPICAL APPLICATIONS INCLUDE:
Filling junction boxes Insulation of 0.6/1 kV electrical connections
Insulation of electronic boards and components
FILL, ENCAPSULATION, POTTING: Filling junction boxes. Encapsulating or potting electrical components or enclosures. Encapsulating electronic boards and components
INSULATION: Insulation of 0.6/1 kV electrical connections
BURIED & SUBMERGED: Buried, submerged, or exposed electronics.

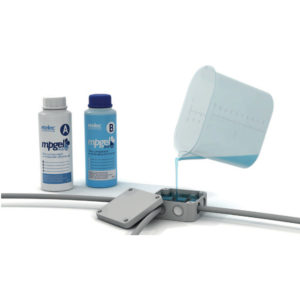

The two components of these quick setting potting gels are supplied in separate containers, thus ensuring the correct 1:1 mixing ratio.
MPgel PLUS waterproof silicone gels for electronics may be partially used as needed, and reused even after the pack of fast setting potting gels has been opened, providing maximum yield.
The measuring jug provided with the 1 and 10-liter sizes of these fast setting encapsulants ensures accurate mixing and prevents waste.
The MPgel 100 silicone sealants are supplied with a new 1 liter jug, which allows you to mix the entire contents of the bottles in one go, making installation of these room temperature cure potting gels even faster.
MPgel bags are provided with a special Perforation Pouring System (PPS) which allows the operator to avoid contact with the quick setting silicon potting gel when opening it.
These fast setting silicone gels containers feature a nozzle that has a toothed cylindrical end that fits securely into a ring inside the bag and punctures it, allowing the waterproof gel for electrical connectors to flow evenly without accidental spills.
MPgel PLUS quick drying silicone encapsulants have extremely short cross-linking time, allowing rapid installation and reducing delays before activation of the waterproof potting gels.
Their low viscosity makes these room temperature cure waterproof encapsulants easy to pour and also ensures fast and safe filling of the containers and gaps.
Once cross-linked, silicone encapsulates for electronics can easily be removed without the need for tools even after long periods of time.
The MPgel fast curing silicone gels for electronics have High dielectric strength (25.5 kV/mm).
These liquid silicone gels for electronics operate in a wide range of temperatures (-60 to 200° C).
MPgel plus quick setting waterproof encapsulants are resistant to UV rays enabling them to be used outdoors and exposed to the elements.
MPgel PLUS is non-toxic, non-irritating, odorless, and solvent-free fast setting potting encapsulant that is classified as non-hazardous under European Regulation no. 1272/2008 (CLP).
MPgel plus, an electrical waterproofing compound, is resistant to UV rays can be used indoors as room temperature cure encapsulants or outdoors where they are exposed to the elements.
These quick drying potting gels are available in bags with removable baffle, in bottles of different sizes, and in jerrycans, for efficient use whatever the quantity of potting silicone required.
Bottle kits of the MPgel fast curing silicone gels for electronics include 2 transparent 150 ml or 500 ml bottles and 1 liter measuring jug.
Jerrycan kit includes two transparent 5 liter jerrycans which are suitable when a large amount of electrical insulating gel is needed and/or for later use.
These electrical silicone gels are non-toxic, re-enterable, and eco-friendly.
This gel for electric connections provides very fast cross-linking, excellent electrical insulation and good mechanical resistance.
The MPgel waterproof room temperature cure potting encapsulants are reusable after opening and never expire.
These easy pouring, two part liquid silicone gels are UV resistant.
Waterproof silicone potting compounds provide protection from the elements (rain, moisture), dust, animals, insects, and leaves.
