Etelec ONEGEL [0.3 Liter/10 oz] Electrical Reenterable [VERY THICK & STICKY] Encapsulating Potting G

$19.00

  • 0.3 Liter (10 oz) – Re-enterable one-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components.

97 in stock (can be backordered)

SKU: ET-ONEGEL Categories: , ,
Description

ONEGEL is a reenterable one-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components, suitable for a wide range of applications and industries.

Additional Information
Weight 0.7 lbs
Dimensions 9.5 × 2 × 2 in
Shop

Shop

$19.00Add to cart

Free Shipping |
Minimum purchase of 5 qty required | 97 available
$210.00/Box of 12
Product Information

Product Information

Etelec ONEGel from Specto Technology

Specto Technology is proud to offer you ONEGEL, a re-enterable one-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components, suitable for a wide range of applications and industries.ONEGEL is a better alternative to resins because of shorter hardening/cross-linking time than resins and no mixing required.

PRODUCT FEATURES:

  • The single component cartrige is easy to use with your own applicator. ONEGEL may be partially used as needed, and reused even after the pack has been opened, providing maximum yield. Please note: Unlike the MPgel this product is thick and does not settle like a liquid.
  • Very fast cross-linking: Cross-linking time: 12 min at 23° C
  • Dielectric strength: 25.5 kV/mm
  • Working time at 23° C: 5 min
  • Operating temperature: -60 to 200° C
  • Color: pale blue Classified as non-hazardous according to European Regulation no. 1272/2008 (CLP)
  • No waste thanks to PPS Suitable when a limited amount of product is needed

PRODUCT BENEFITS:

  • Simple – The two components are supplied in separate containers, thus ensuring the correct 1:1 mixing ratio. MPgel plus may be partially used as needed, and reused even after the pack has been opened, providing maximum yield.
  • Rapid cross-linking – ONEGEL has an extremely short cross-linking time, allowing rapid installation and reducing delays before activation.
  • Non-toxicRe-enterable
  • Eco-friendly
  • Easy pouring
  • Very fast cross-linking
  • Excellent electrical insulation
  • Good mechanical resistance
  • UV resistant
  • Protection from elements (rain, moisture), dust, animals, insects, leaves
  • No expiration date
  • Reusable after opening

TYPICAL APPLICATIONS INCLUDE:

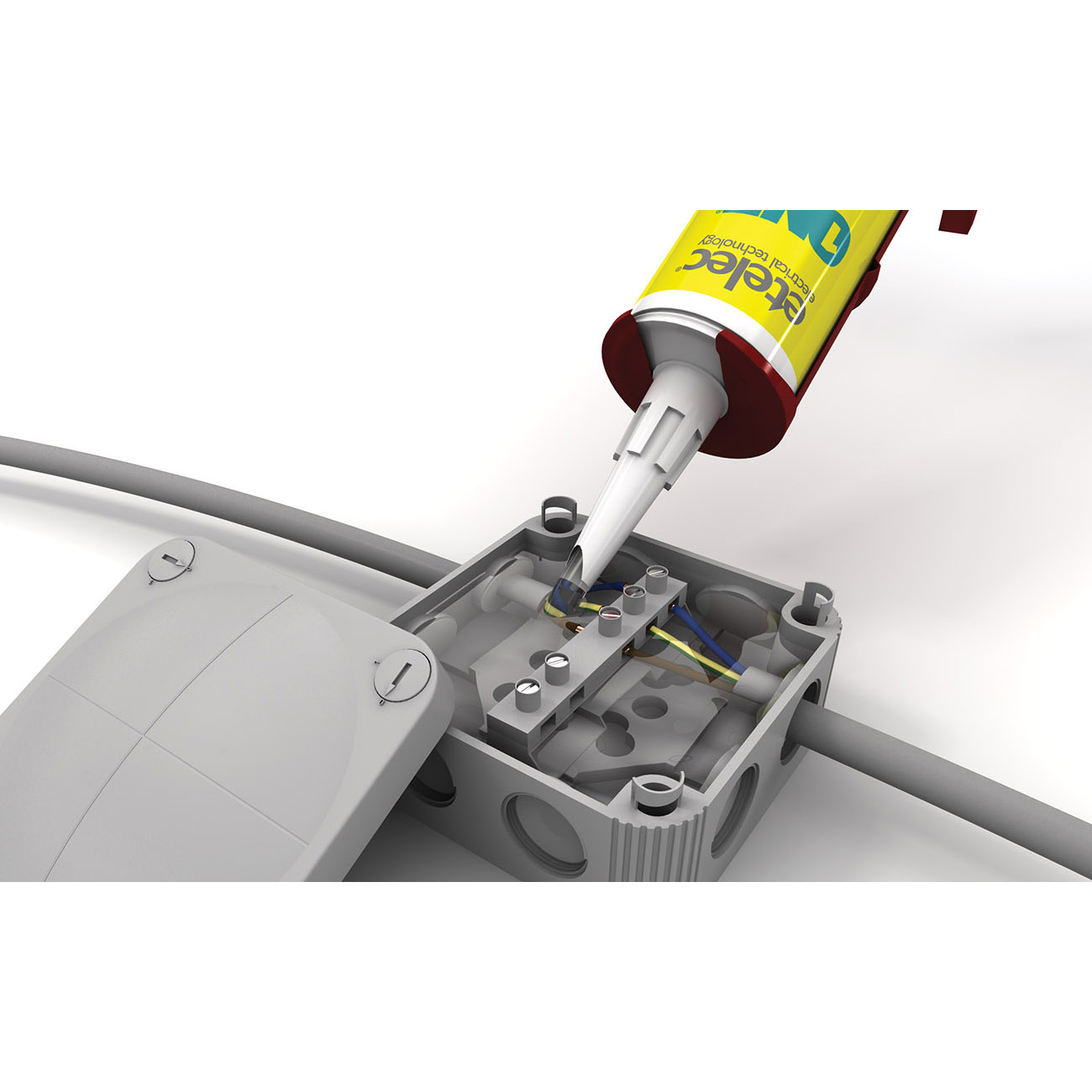

  • Filling junction boxes Insulation of 0.6/1 kV electrical connections
  • Insulation of electronic boards and components
  • FILL, ENCAPSULATION, POTTING: Filling junction boxes. Encapsulating or potting electrical components or enclosures. Encapsulating electronic boards and components.
  • INSULATION: Insulation of 0.6/1 kV electrical connections
  • BURIED & SUBMERGED: Buried, submerged, or exposed electronics.
  • INDUSTRIES: Electrical contracting Telecommunications Manufacturing Robotics Marine and Aquatics DIY Electronics
  • PROTECTION: Water protection, dust protection, electrical / thermal insulation, flame resistance, critter proofing. NOTE: Unlike the MPgel this product is thick and does not settle like a liquid.



Downloads

Additional Information on Etelec One Gel

  • One Gel single-component, re-enterable electrical silicone gel comes in a ready-to-use cartridge.
  • The One Gel fast curing silicone gel for electronics is used for insulated filling and sealing of casings and junction boxes housing electrical connections of up to 1 kV or electronic components.
  • This quick setting encapsulant is already cross-linked and ready to use with no need for mixing or waiting for cross-linking as with conventional two-component waterproof encapsulants gels.
  • Thanks to its special characteristics, the One Gel fast setting silicone gels come in a standard cartridge that can be used with a normal sealant gun, allowing rapid installation.
  • These waterproof room temperature cure encapsulants do not dry, and always stay soft, preserving its characteristics and remaining re-enterable over time.
  • Insulation and protection are key benefits of these electrical insulating gels.
  • Its excellent chemical and physical properties make the One Gel waterproof potting gels ideal for a wide range of applications requiring a high level of electrical insulation and protection from moisture.
  • The excellent adhesive properties of the room temperature cure potting encapsulants ensure rapid and correct application of the electrical silicone gel even in vertical position or in cases of difficult access to a casing or connection.
  • One Gel fast setting potting gels are non-toxic, and are classified as non-hazardous under European Regulation no. 1272/2008 (CLP).
  • These quick setting silicone potting gels have a thixotropic consistency.
  • These waterproof silicone gels for electronics are transparent pale blue.
  • These quick drying potting gels are odorless and solvent-free.

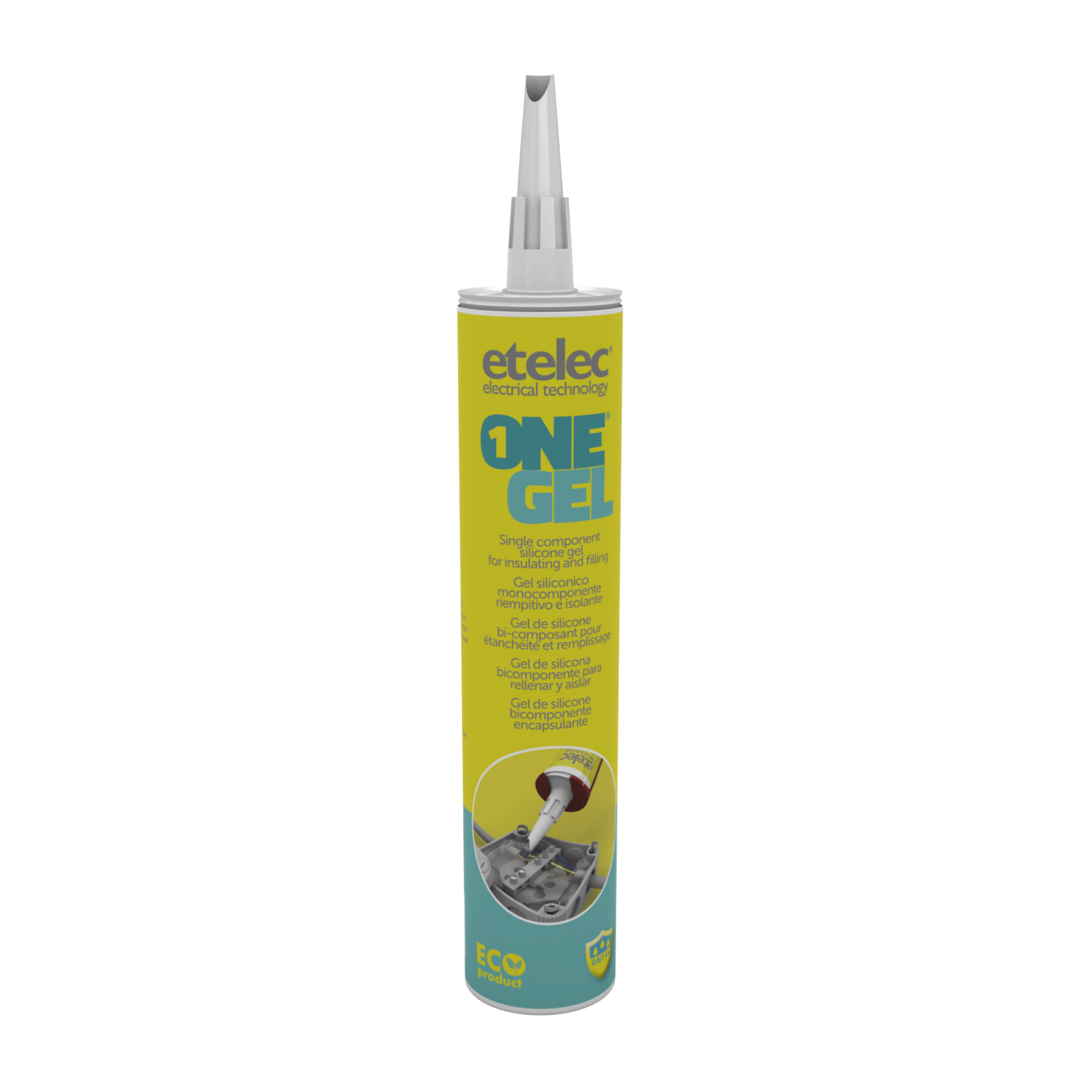

  • This waterproof gel for electrical connectors comes in a 300 ml cartridge.
  • This silicone gel for electronics provides Insulation of electronic boards and components.
  • The One Gel room temperature cure encapsulants are used for filling of electrical junction boxes.
  • These quick setting silicone encapsulants are used for insulation of 0.6/1 kV electrical connections.
  • Fast setting potting encapsulants are suitable in cases of difficult access to a casing and/or connection.
  • One Gel quick drying silicone encapsulants are suitable for vertical or upside down installation.
  • Electronic silicone gels are typically used in civil, industrial, nautical, aeronautical, and automotive areas.
  • No mixing is required for these quick setting potting gels.
  • The cartridge of these connector potting compounds can be used with a normal sealant gun.
  • One Gel electrical potting resin allows for precise, waste-free dosage.
  • These UV Ray-resistant, fast setting encapsulants are re-enterable, removable, transparent, and eco-friendly.
  • The waterproof room temperature cure encapsulants are reusable after opening and never expire.
  • Electronics potting compounds provide protection from the elements (rain, moisture), dust, animals, insects, and leaves.
  • One Gel room temperature cure potting gels have a dielectric strength of 25 kV/mm.
  • These electronic potting compound silicones operate in temperatures ranging from –60 / 200° C.
