Etelec Replaygel [1 Liter/1 qt] Electrical Reenterable and repositionable Encapsulating Potting Gel

$54.00

  • 1 Liter (1 qt) – Re-enterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical components and connections of up to 1 kV or electronic components.

8 in stock (can be backordered)

SKU: ET-MP3100 Categories: , ,
Description

Replaygel is a repositionable and reusable re-enterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical connections of up to 1 kV or electronic components, suitable for a wide range of applications.

Additional Information
Weight 2.6 lbs
Dimensions 7.5 × 7 × 3.25 in
Shop

Shop

$54.00Add to cart

Free Shipping8 available

Product Information

Product Information

Etelec Replaygel from Specto Technology

Specto Technology is proud to offer you Replaygel: electrical reenterable and repositionable Encapsulating Potting Gel Seal Compound.

Replaygel is a repositionable and reusable re-enterable two-component silicone gel for insulated filling and sealing of casings and junction boxes housing electrical connections of up to 1 kV or electronic components, suitable for a wide range of applications.

PRODUCT FEATURES:

  • Repositionable and reusable
  • Dielectric strength: 24 kV/mm
  • Mixing ratio 1:1
  • Working time at 23° C: 10 min
  • Cross-linking time at 23° C: 25 min
  • Operating temperature: -60 to 200° C
  • Colour: pale green
  • Classified as non-hazardous under European Regulation no. 1272/2008 (CLP)
  • No waste thanks to separate bottles and measuring jug
  • Can be mixed in one go with the new 1 lt jug

PRODUCT BENEFITS:

  • Simple – The two components are supplied in separate containers, thus ensuring the correct 1:1 mixing ratio. MPgel plus may be partially used as needed, and reused even after the pack has been opened, providing maximum yield.
  • Rapid cross-linking – MPgel plus has an extremely short cross-linking time, allowing rapid installation and reducing delays before activation.
  • Non-toxic
  • Re-enterable
  • Eco-friendly
  • Easy pouring
  • Very fast cross-linking
  • Excellent electrical insulation
  • Good mechanical resistance
  • UV resistant
  • Protection from elements (rain, moisture), dust, animals, insects, leaves
  • No expiration date
  • Reusable after opening

TYPICAL APPLICATIONS INCLUDE:

  • Filling junction boxes Insulation of 0.6/1 kV electrical connections
  • Insulation of electronic boards and components
  • PROTECTION: Water protection, dust protection, electrical / thermal insulation, flame resistance, critter proofing.
  • FILL, ENCAPSULATION, POTTING: Filling junction boxes. Encapsulating or potting electrical components or enclosures. Encapsulating electronic boards and components
  • INSULATION: Insulation of 0.6/1 kV electrical connections
  • BURIED & SUBMERGED: Buried, submerged, or exposed electronics.
  • INDUSTRIES: Electrical contracting Telecommunications Manufacturing Robotics Marine and Aquatics DIY Electronic



Video



Downloads

Additional Information on Etelec ReplayGel

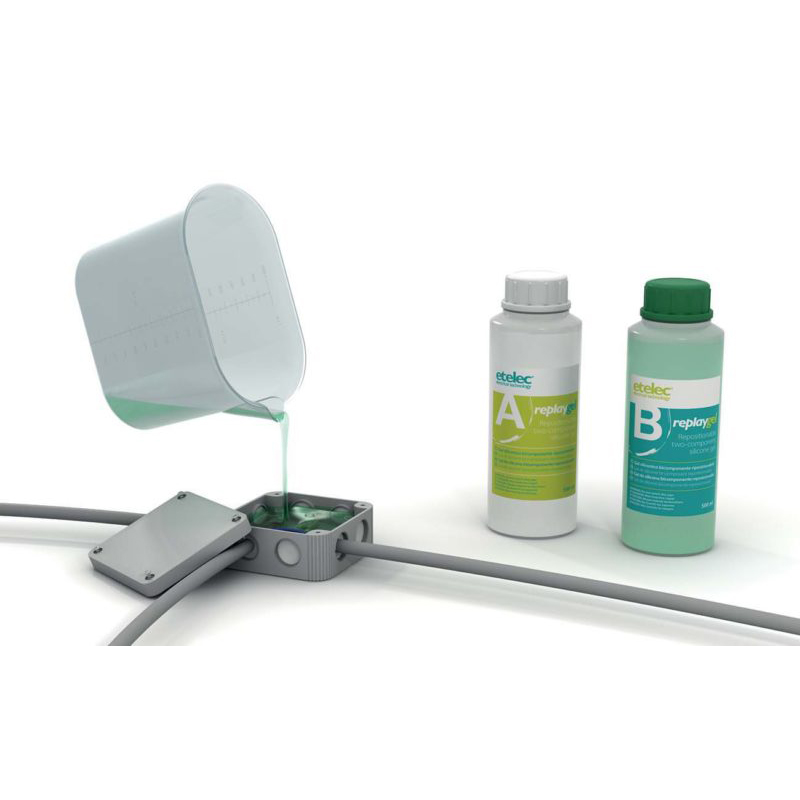

  • The two components of these quick setting potting gels are supplied in separate containers, thus ensuring the correct 1:1 mixing ratio.
  • The two parts are supplied in separate containers to always guarantee the correct 1:1 mixing ratio. The new 1-liter measuring jug ensures a precise wastefree mix and allows to mix the entire contents of the bottles in one go, making installation even faster. Replaygel may be partially used as needed, and reused even after the pack has been opened, providing maximum yield. Being repositionable, the gel can be cross-linked before use.
  • Replaygel can be penetrated using tools such as screwdrivers, thus enabling work on the connection without removing the gel.
  • Its low viscosity makes Replaygel easy to pour and also ensures fast and safe filling of the containers and gaps.
  • High dielectric strength: 24 kV/mm. Wide range of operating temperatures (-60 to 200° C)
  • Replaygel is non-toxic, non-irritating, odourless and solvent-free, and is classified as non-hazardous under European Regulation no. 1272/2008 (CLP).
