Suitable for the straight connection of single-core cables, and for the connection and insulation of electronic boards and components.

Shop

$32.00Add to cart

Product Information

SHARK® 315 (4 pcs) Classic Series Gel Insulated Joints for Straight Connections from Specto Technology

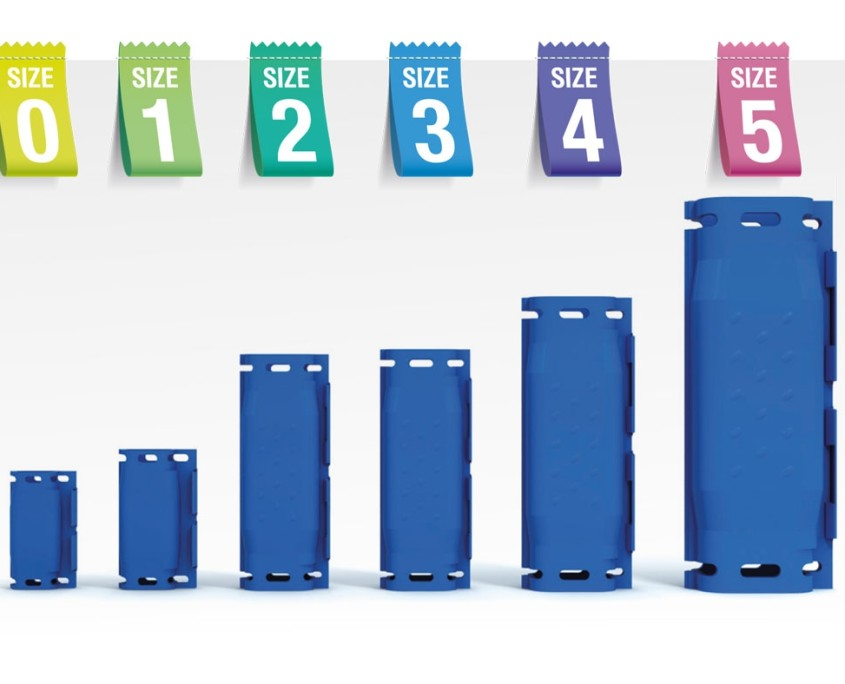

SHARK® Classic Series gel insulated joints can be used to make straight connections on 0.6/1 kV single or multicore low voltage cables with up to four cores.

• Greater space available inside the joint, the versions without terminal blocks are suitable for the straight connection of single-core cables, and for the connection and insulation of electronic boards and components.

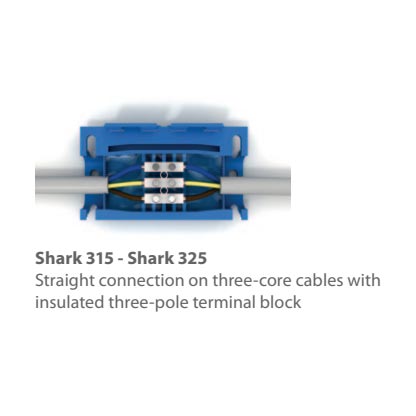

• The versions with terminal block allow the straight connection with double insulation of cables with up to five cores and are available with tin-plated aluminium connectors for copper-copper, aluminium-aluminum, and copper-aluminium connections on request.

PRODUCT FEATURES:

• Compliant with CEI EN 50393 standard for low voltage joints
• Self-extinguishing in accordance with EN 60695-2-11 standard
• Low smoke and toxic gas emission in accordance with CEI 20-37/2-1 and CEI 20-37/4 standards
• Protection level: equivalent to IPX8 (CEI EN 60529) tested in water at a depth of one metre (CEI EN 50393 par. 8.6.3)
• No accidental contact with live parts: the cable ties supplied prevent the reopening of the joint without the use of tools, as required by CEI 64-8 standard
• Operating temperature: -20° C to 90° C
• Compliant with directive 2011/65/UE (RoHS 2)

PRODUCT BENEFITS:

• Ready to use
• Re-enterable
• No resin mixing and casting
• Usable immediately
• Excellent electrical insulation
• Good mechanical resistance
• No expiry date

TYPICAL APPLICATIONS INCLUDE:

• Straight connections of single and multicore cables with up to 4 cores
• Versions without terminal blocks: insulation of joints on multi-paired telecommunications cables and insulation of electronic boards and components
• Installation in cable ducts, underground, overhead, or underwater
• Street lighting systems
