Optical Survey Prism with lightweight metal flange mount

Optical Survey Monitoring Prism with lightweight metal flange mount, for use with Topcon, Sokkia, Leica, Trimble and other total stations

$75.00

Availability: 451 in stock

Product Information

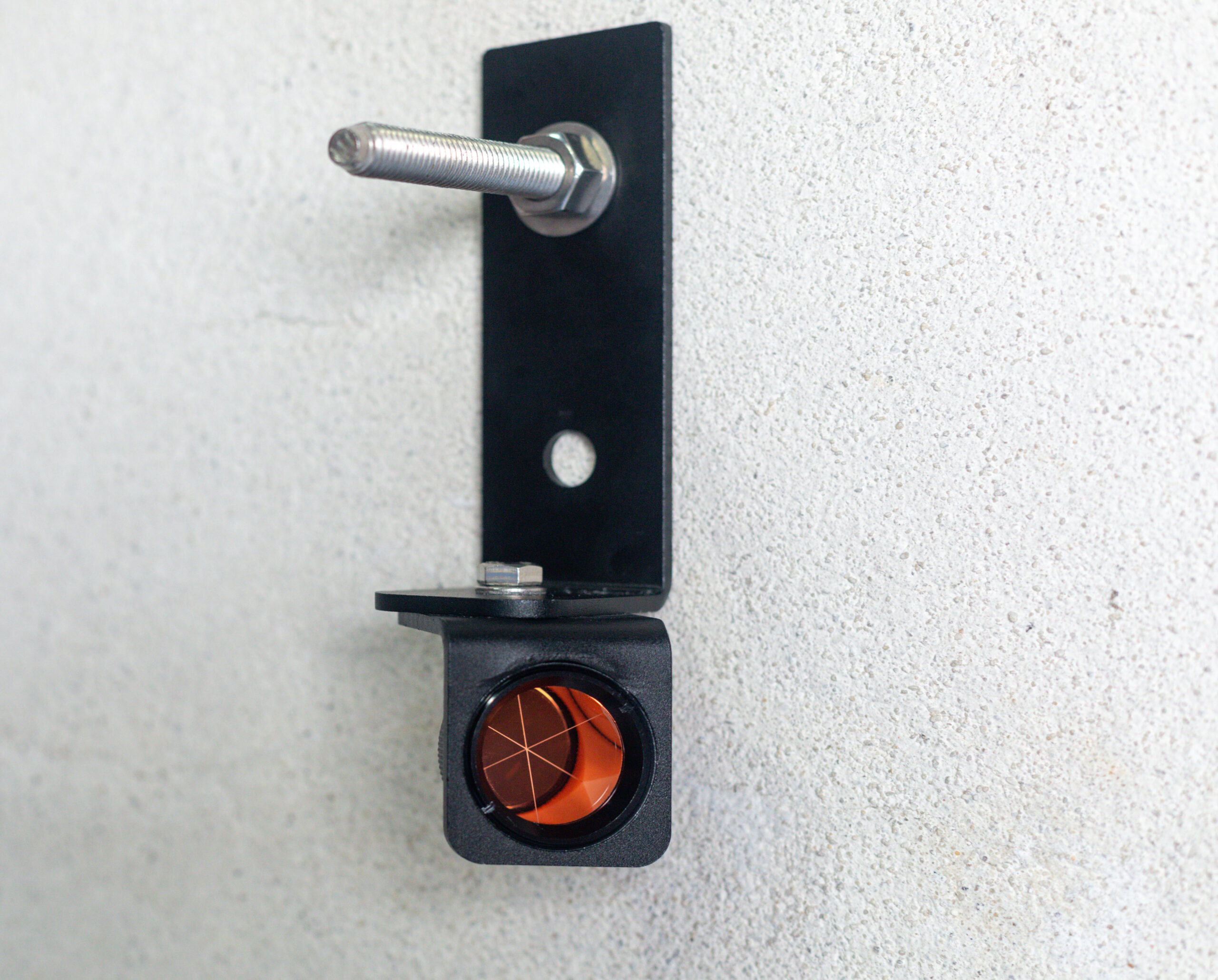

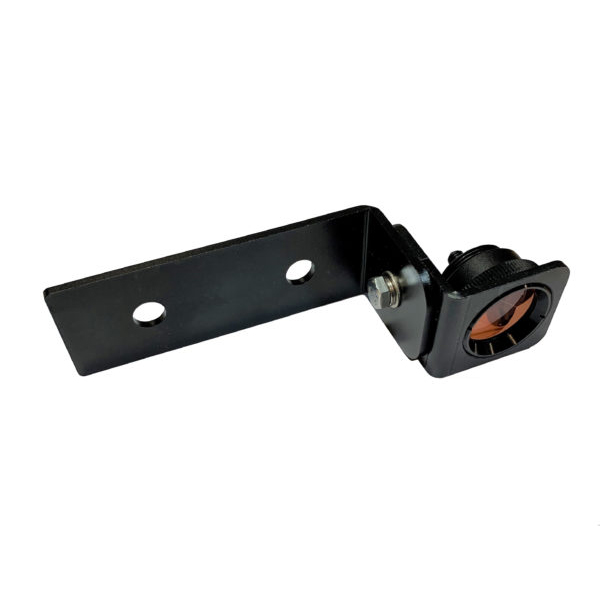

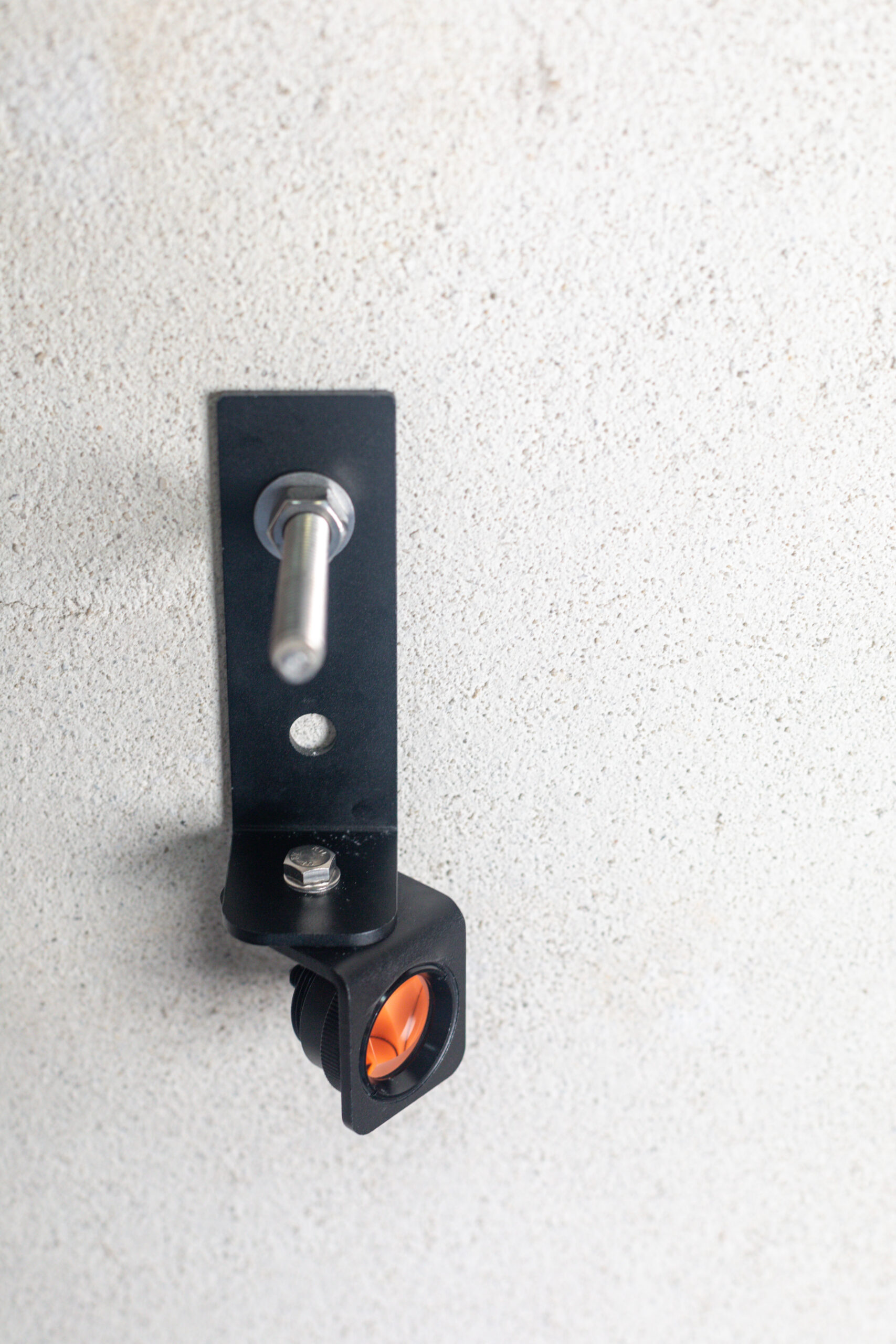

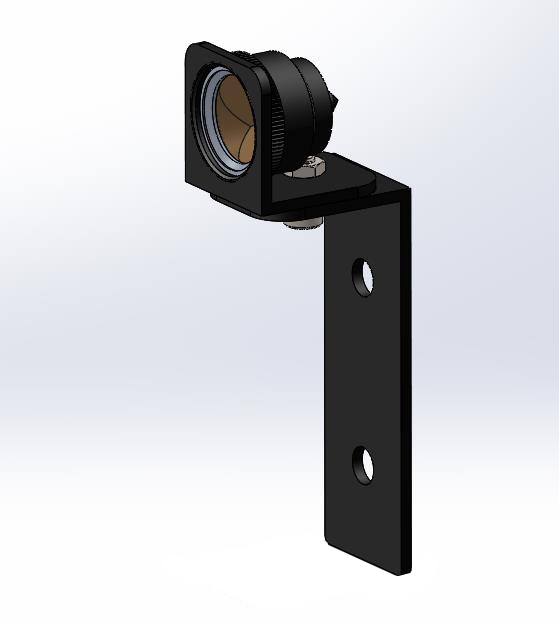

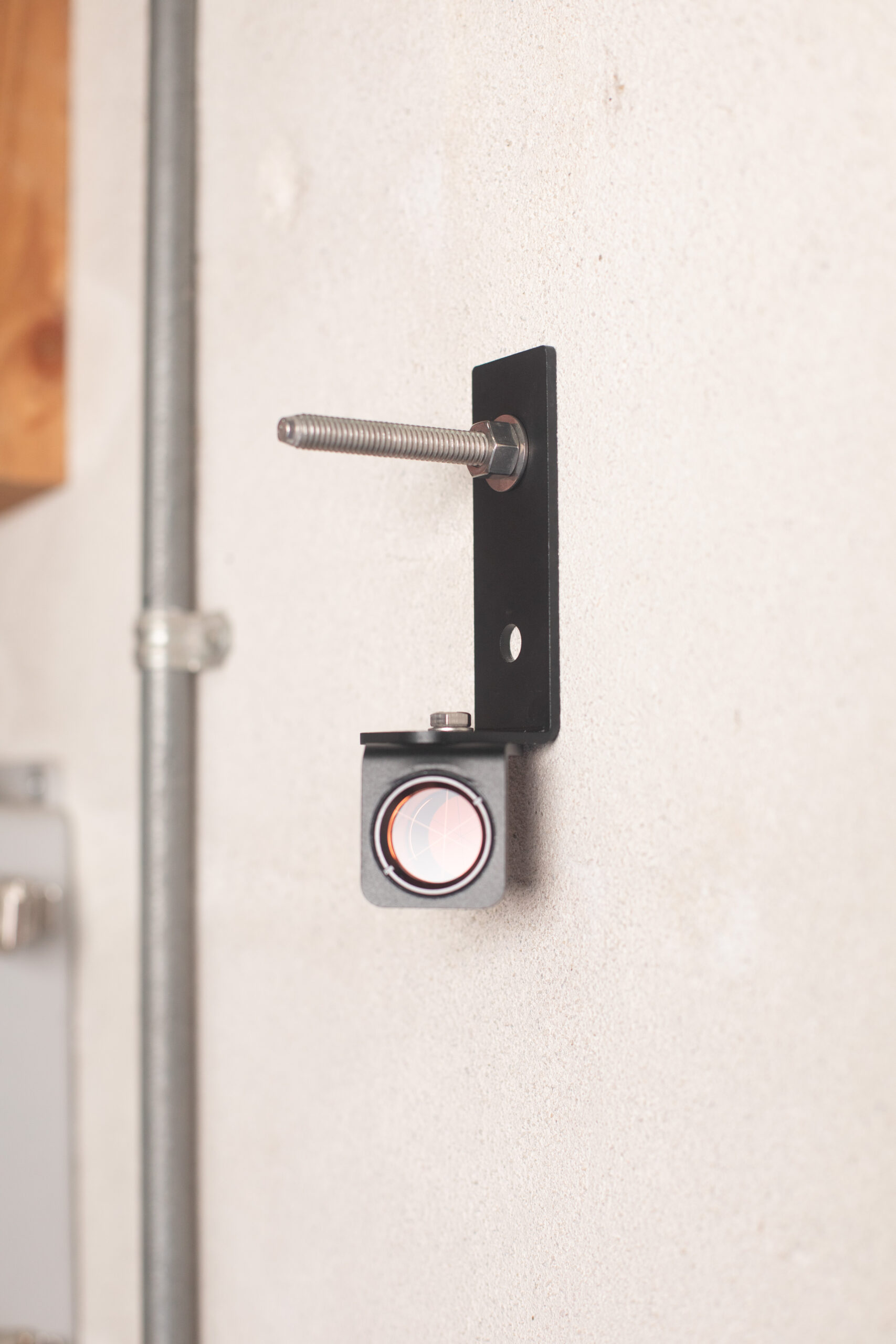

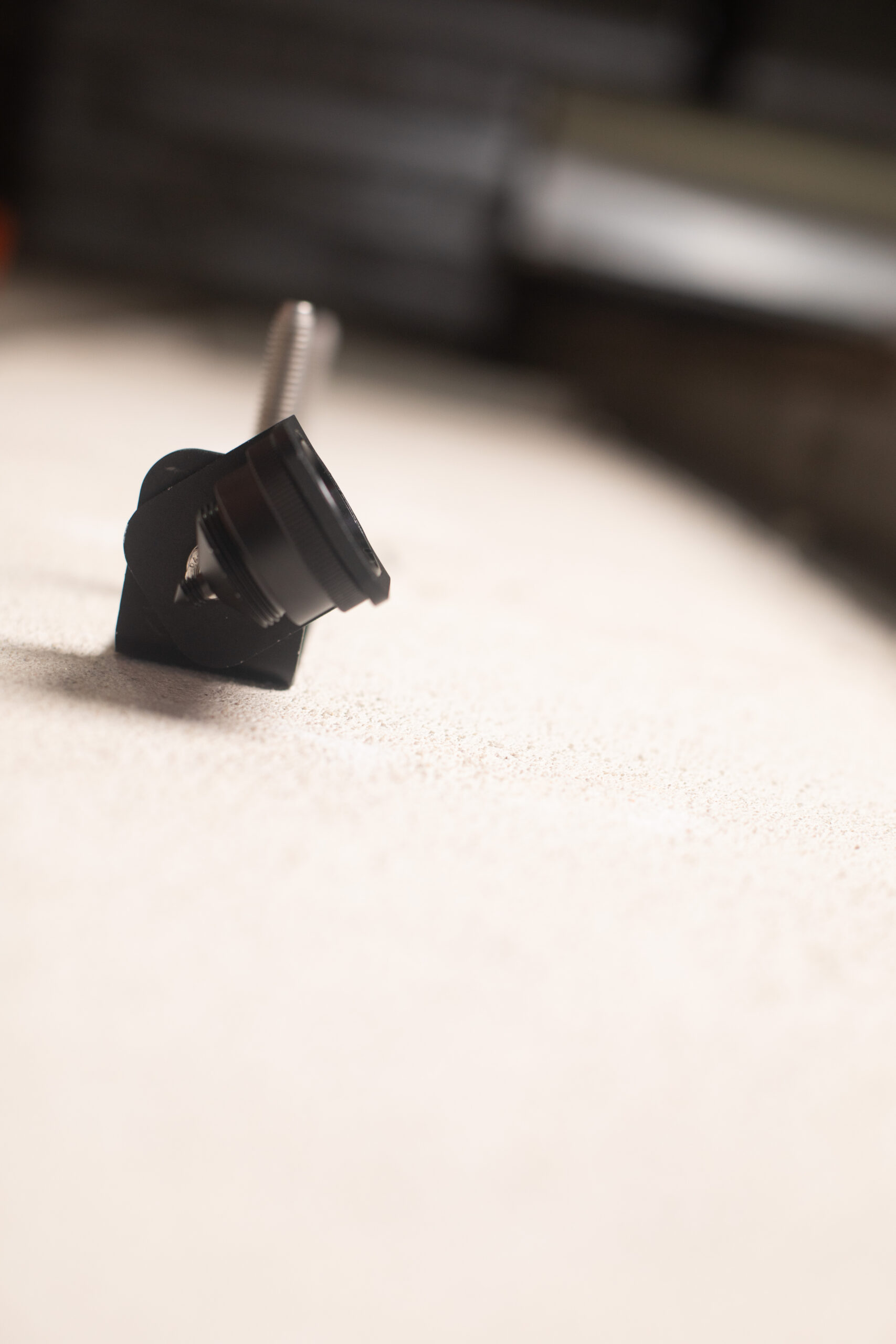

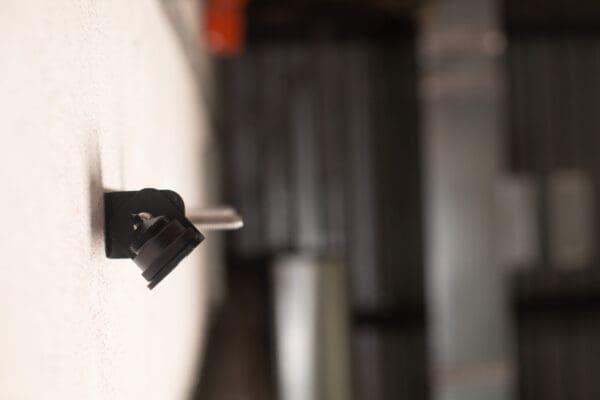

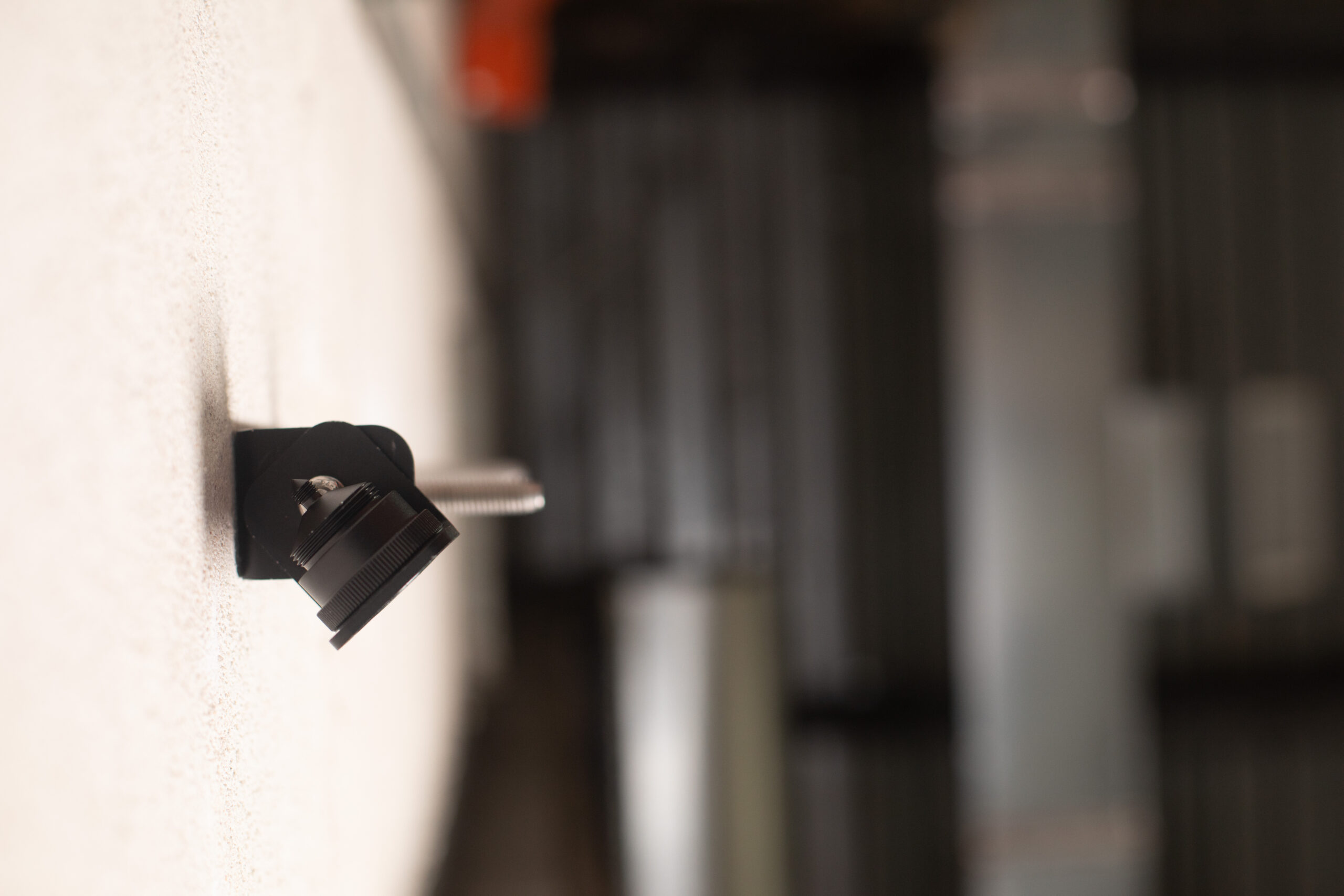

The light weight, low profile monitoring prism is secured onto a light weight aluminum L-shaped flange.

The light weight design allows the prism assembly to be epoxied to a surface when anchor bolts are not able to be used.

  We carry stock of Light Weight Monitoring Prisms. Same-day shipping or pickup is available!

PRODUCT FEATURES:

  • Small size
  • Prism diameter:  24.5mm
  • Measuring distance:  2,000m
  • Offset:  -25.4mm (Topcon, Trimble), +8.92 (Leica)
  • Accuracy:  2 arc sec
  • Hermetically sealed prism
  • Lightweight, wide aluminum plate suits epoxy bonding
  • Option to remove prism if flange is damaged during removal
  • Prism has ability to swivel 360°

SPECIFICATIONS:

  • 25.4mm diameter Prism
  • Prism accuracy: 5 arc seconds
  • Prism offset (Leica): +8.92mm
  • Prism offset (Trimble & Others): -25.4mm
  • Measuring range: 2,000m
  • Outer dimensions: 5.94” x 2.00” x 1.44”
  • Weight: 3.4 oz (90g)

PRODUCT BENEFITS:

  • Possible to secure to surfaces with epoxy due to light weight
  • Discrete due to low profile and small prism size

TYPICAL APPLICATIONS:

  • Monitoring prisms are designed for use with an automated total station (AMTS) to monitor settlement and deformation of roads, buildings, pavement, and other surfaces.
