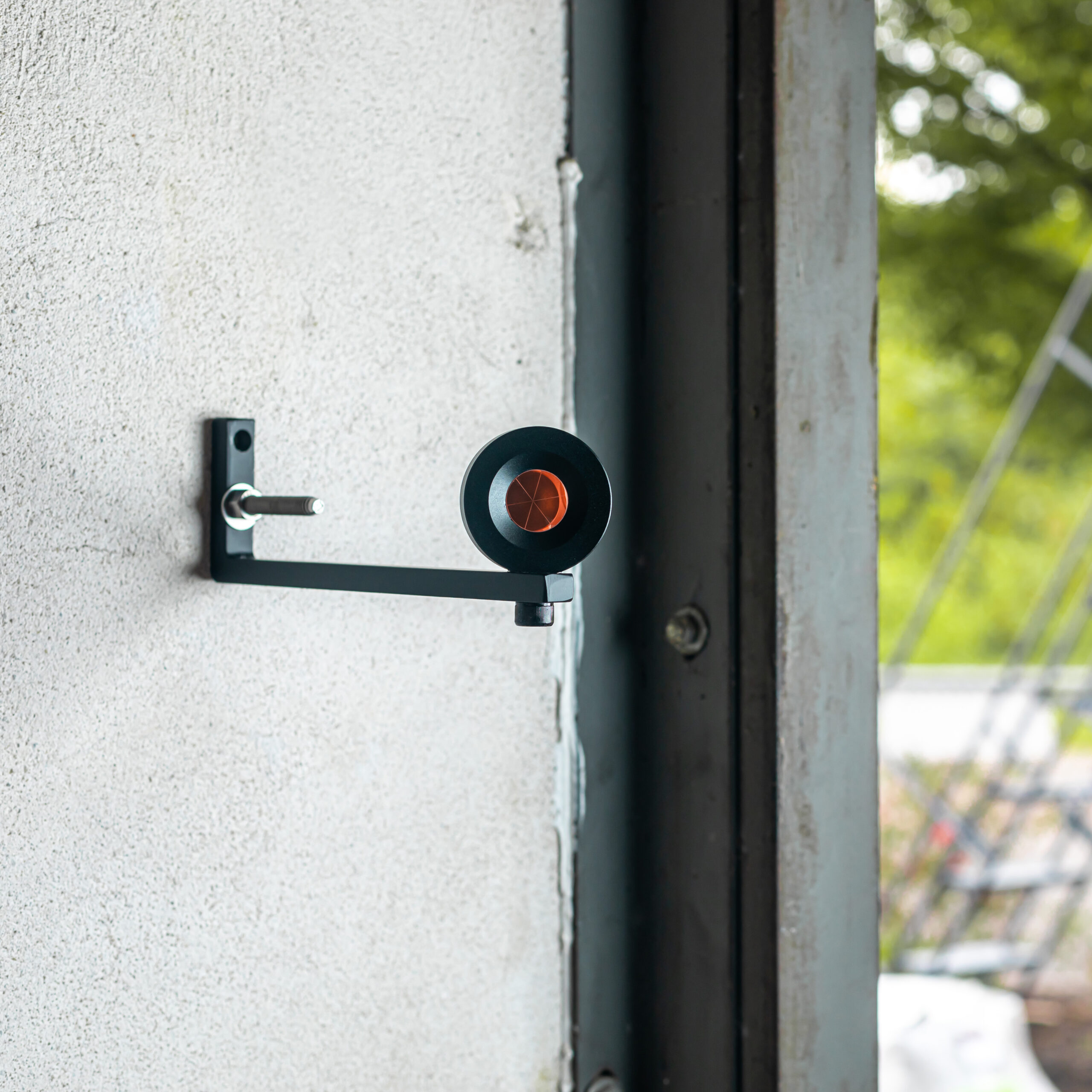

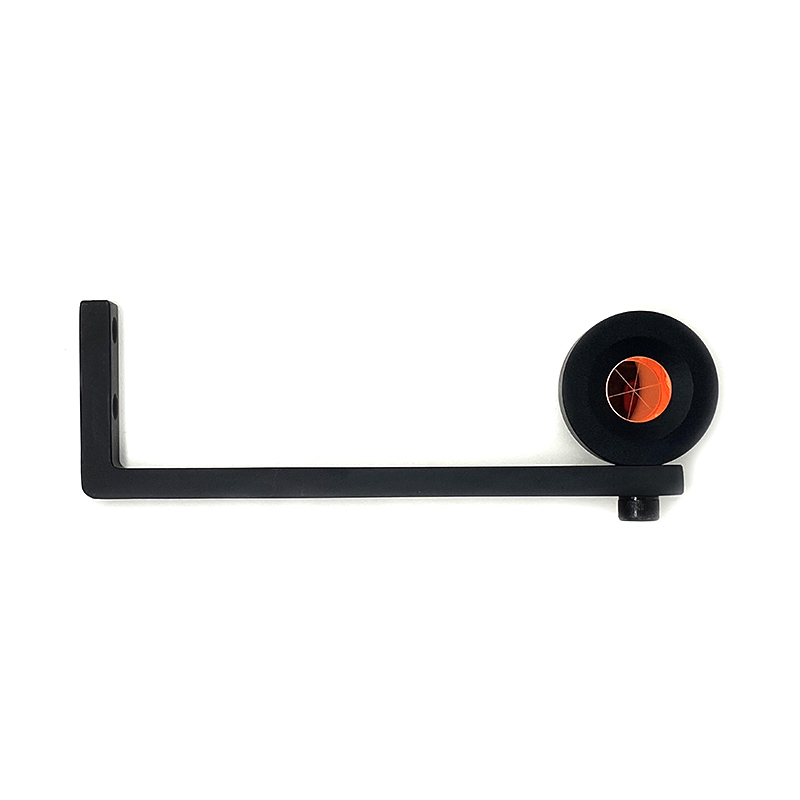

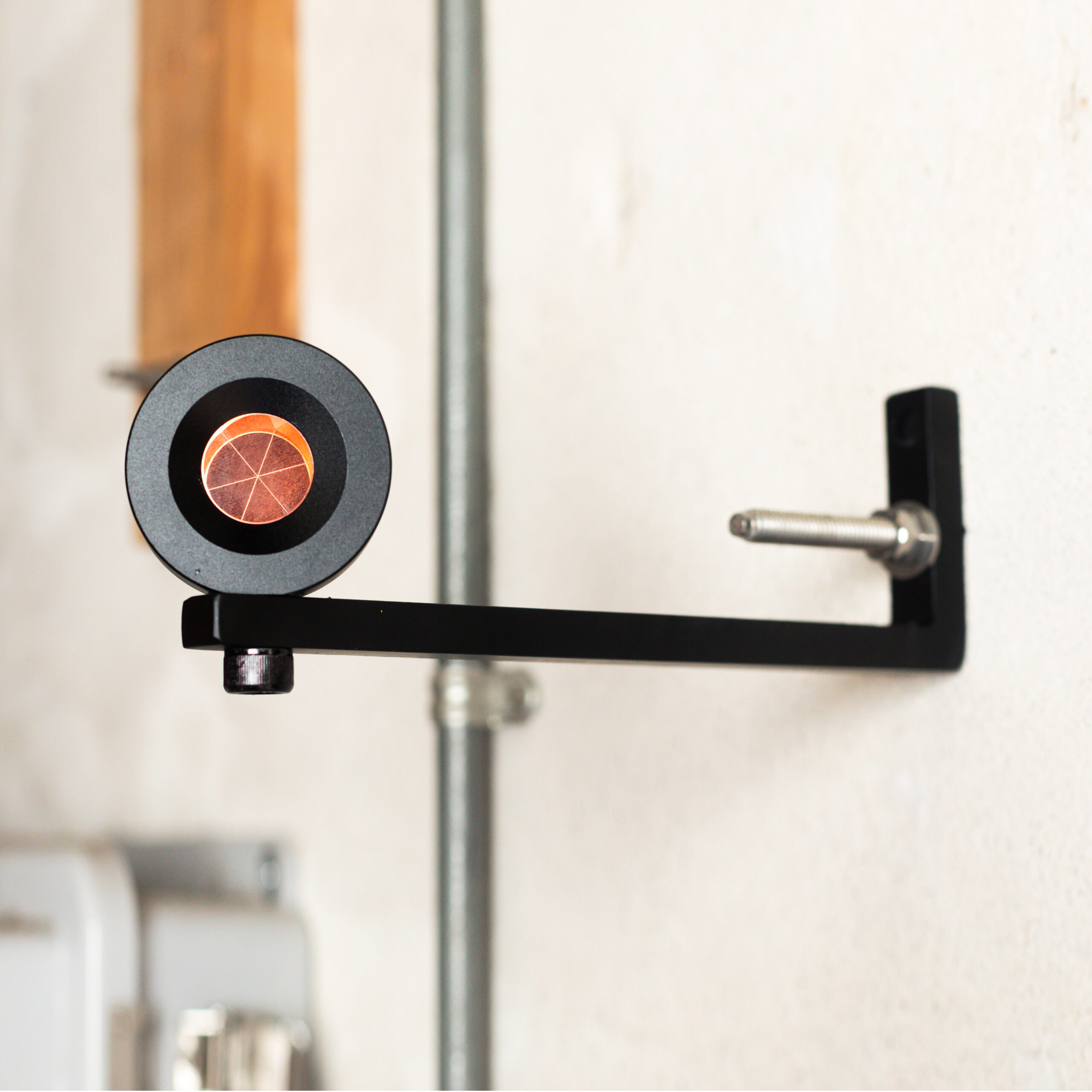

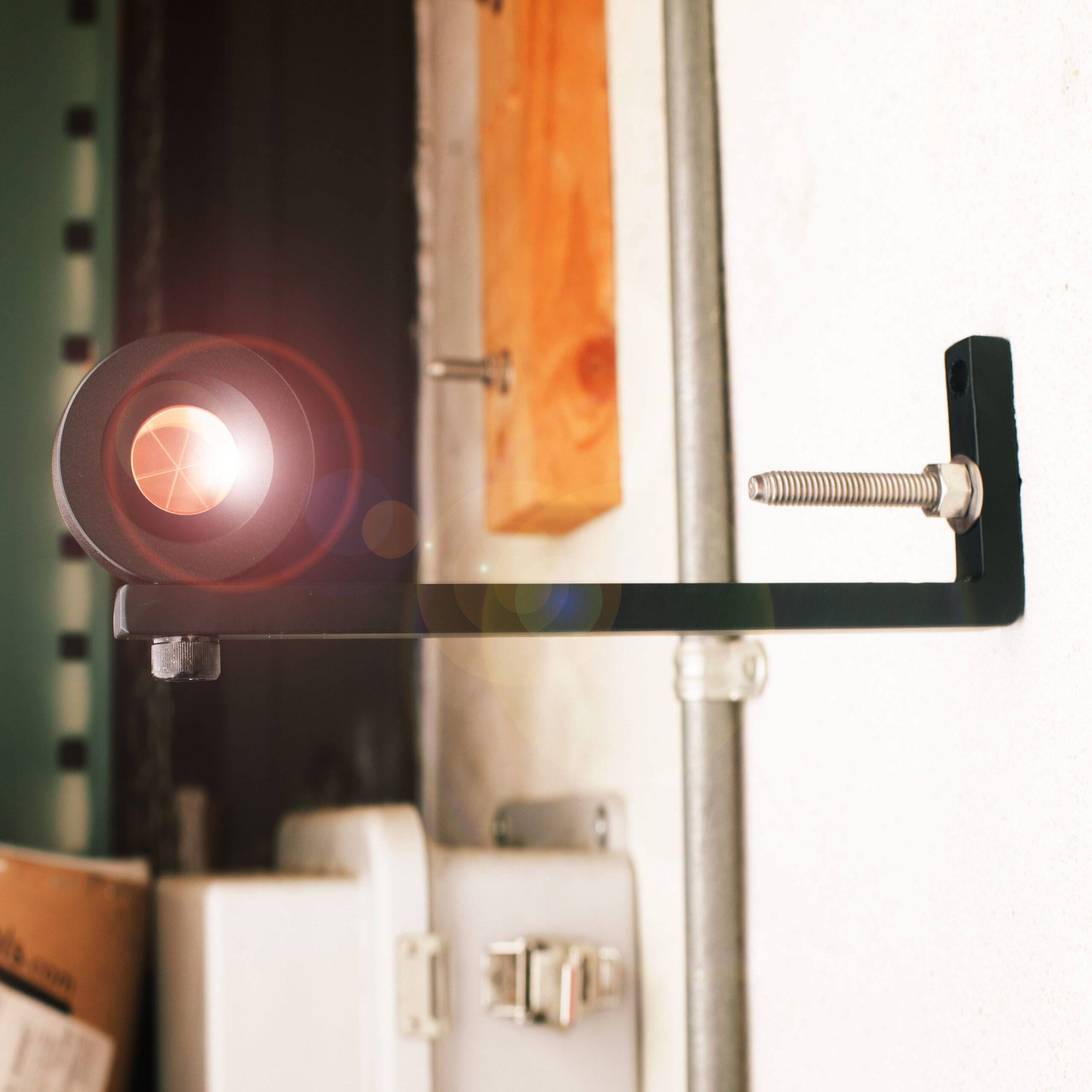

Optical Survey Prism with 9-inch Extended L-bar mount

Optical Survey Prism with 9-inch extended L-bar mount for use with Topcon, Sokkia, Leica, Trimble and other total stations


Availability: 54 in stock

Product Information

The L-bar prism is mounted in a hermetically sealed metal holder. The L- bracket has 1 hole for ease in mounting. The prism offset is dependent on the mounting position. The prism is ground to 2 arc seconds which affords you to obtain maximum distance 2000m (7000ft) under normal conditions. The “L-Bar” and prism housing is constructed of anodized aircraft-grade aluminum

  We carry stock of this item and same-day shipping or pickup is available!


Product Features:

  • Aluminum
  • Offset is dependent on mounting position
  • Range 2000m (7000ft)
  • 25.4mm
  • 25.4mm diameter prism, 19.8mm height
  • Accuracy: 5 arc seconds

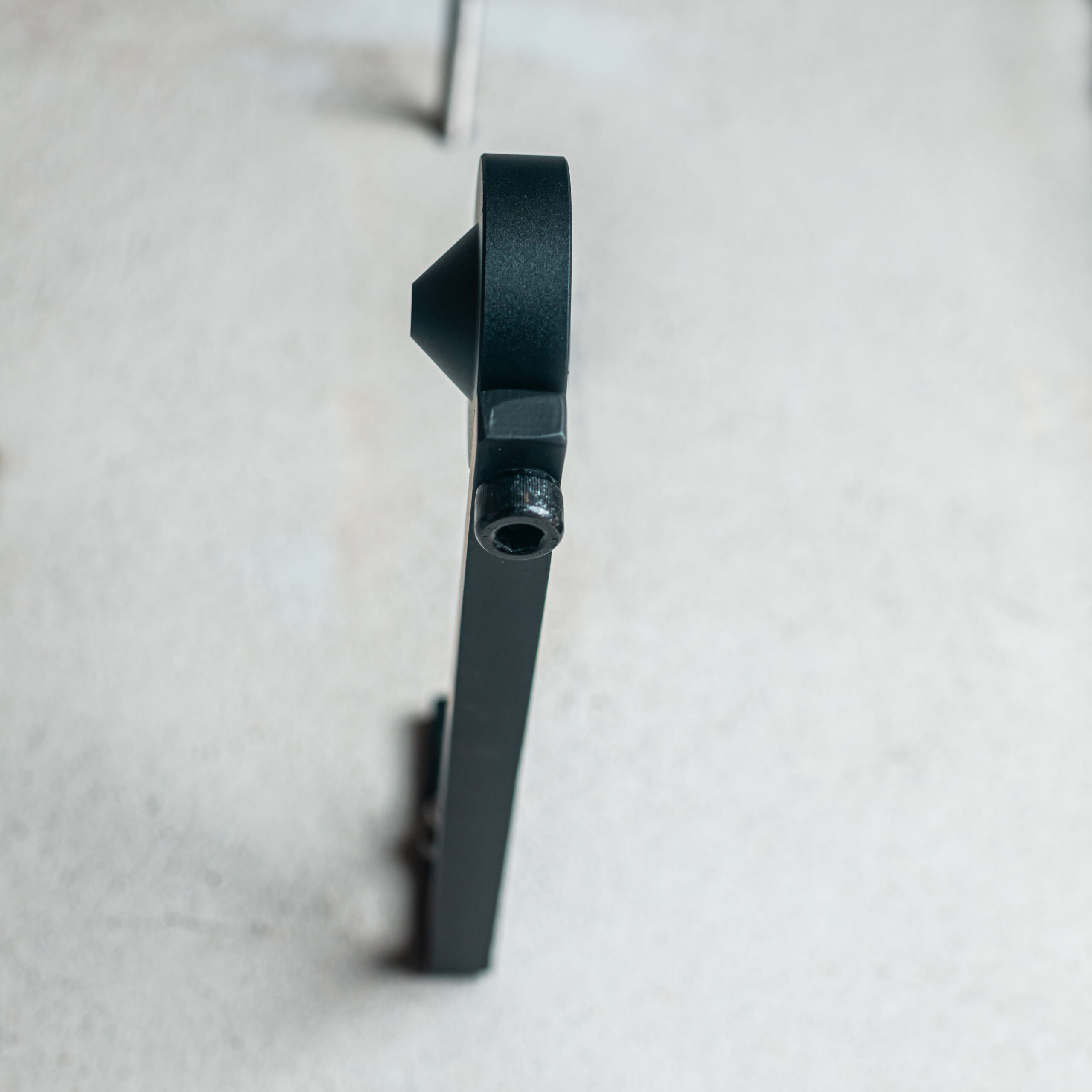

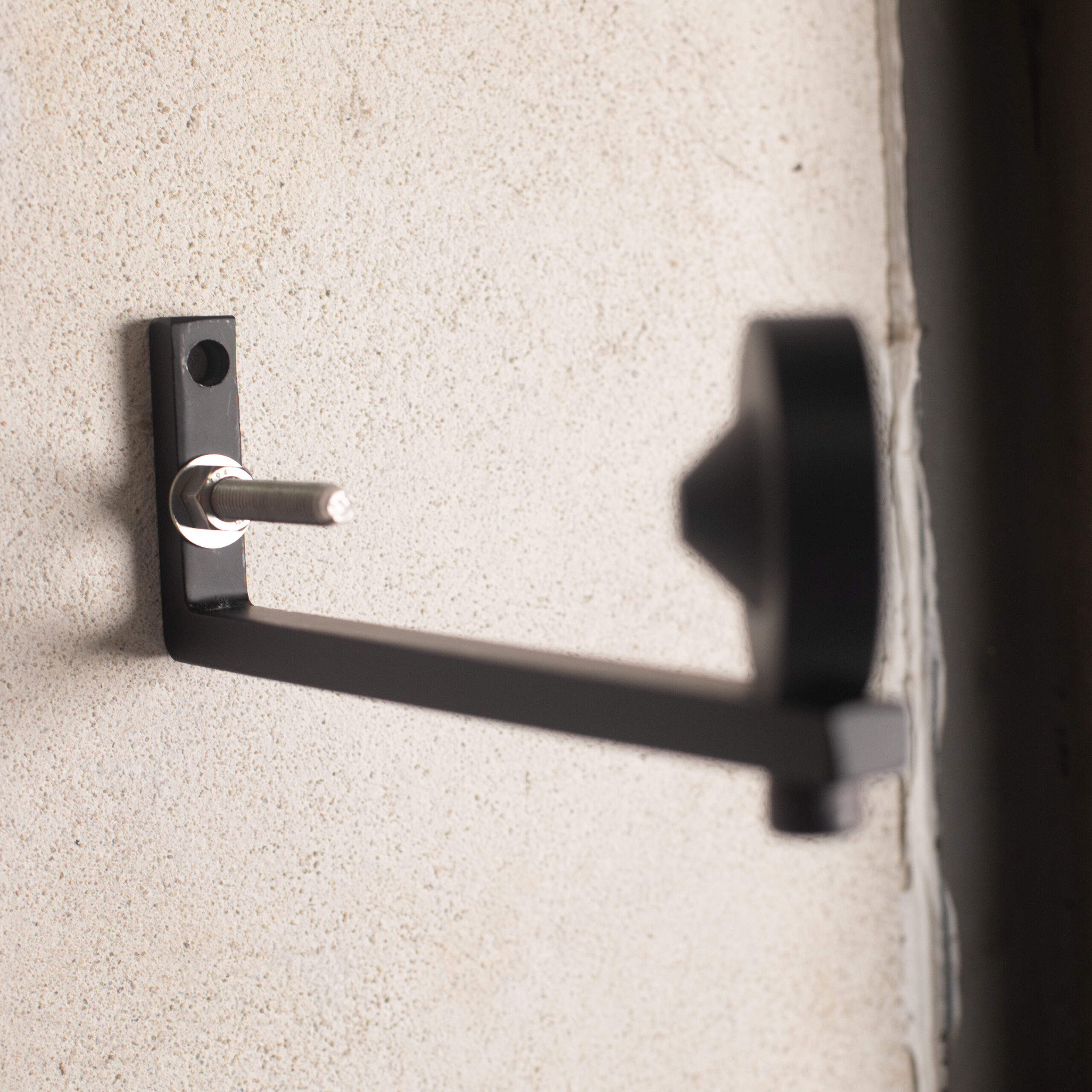

  • L-bracket has 8mm hex bolt to adjust angle & a 10mm hole for mounting
  • Absolute Offset/Constant (Topcon & others): -25.4
  • Prism Offset/Constant (Leica): +8.92mm
  • Range 1000m (3000ft)
  • Prism surface finish: 60-40
  • Reflectivity: 95%
