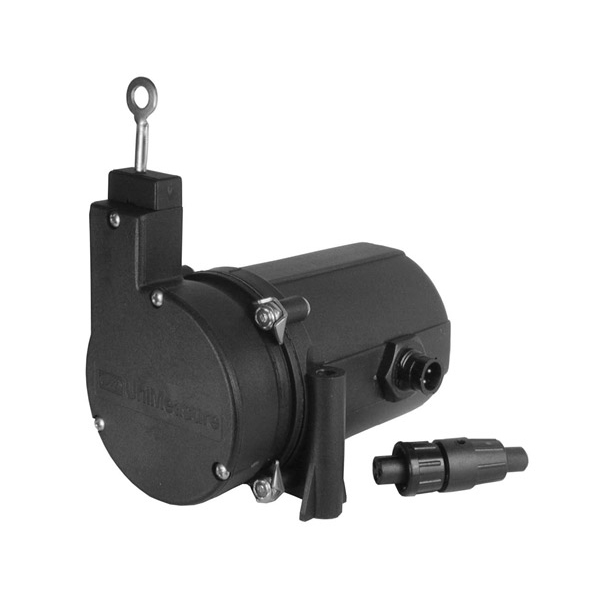

UniMeasure String Potentiometer

Product Information

The string potentiometer is composed of a measuring cable, a spring loaded spool and a rotational potentiometer. The stainless steel measuring cable is wound on the precision machined spool that turns as the cable extends or retracts. The device converts the linear movement of the cable into rotation and then into an electrical signal proportional to the movement.

String potentiometers, also known as displacement potentiometers, are durable, easy to install, simple to use and inexpensive. They may be used to monitor displacements during pile load tests or to monitor movements across cracks and joints. They may be easily read by most dataloggers.

   Same-day shipping or pickup is available!

Product Features

  • Available with voltage divider output
  • 4.7 inch stroke range
  • Accuracy of 1% of full scale
  • Easy to install
  • Free release tolerant
  • Cable tension 8 oz
  • Polycarbonate enclosure comes with handy stainless steel mounting bracket
  • Compatible with Loadsensing and Campbell Scientific dataloggers


UniMeasure String Potentiometer Data Sheet

User Manual

UniMeasure String Potentioemeter User Manual
