SM70 sensor module: 0-0.15 ppm Ozone

Shop

Product Information

SM70 sensor module: 0-15 ppm Ozone from Specto Technology

PRODUCT FEATURES:

• Low cost and feature-packed designed for a wide range of indoor and industrial applications.

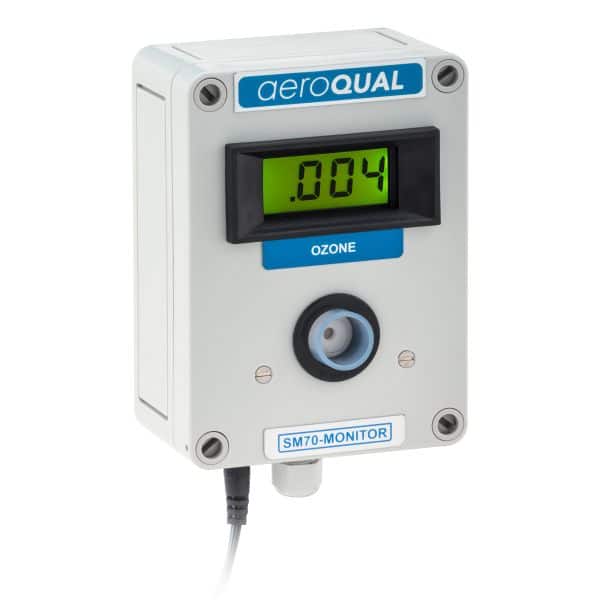

• The gas monitors come with an integrated LCD display, RS232 and RS485, 0-5V outputs and audible alarm, which can be configured to a user defined set point.
View More
They also come with a 12VDC power supply that plugs directly into the monitor and mains power allowing for easy set up and installation.

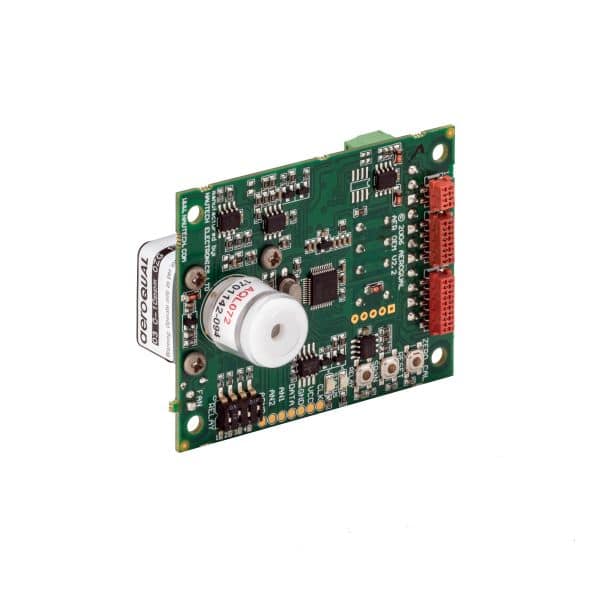

The gas sensor board is factory set to one of three optional firmware settings to control the relay and alarm functionality:

1. Alarm above (AA) – The relay is programmed to energise above your defined set point. Typical applications include health and safety alarm warning systems and switching external equipment on and off.
2. Alarm below (AB) –  The relay is programmed to energize below your defined set point. Typical applications include fail safe warning systems and control of an ozone generator.
3. Control 10% (C10) – The relay is programmed to open and close ±10% within your defined control band. Typical applications include maintaining a specific gas concentration between user defined levels via the control of an external device e.g. an ozone generator.

PRODUCT BENEFITS:

• Plug and play monitor
• Real-time gas concentrations shown continuously on display
• Multiple outputs for control of external devices e.g. an ozone generator
• Alarm options to signal gas exceedances for health and safety
• Active sampling for improved accuracy
• Replaceable gas sensor board
• Compatible with three ranges of ozone sensors

TYPICAL APPLICATIONS INCLUDE:

• Leak detection
• Health and safety monitoring
• Industrial Process control
• Indoor air quality monitoring
