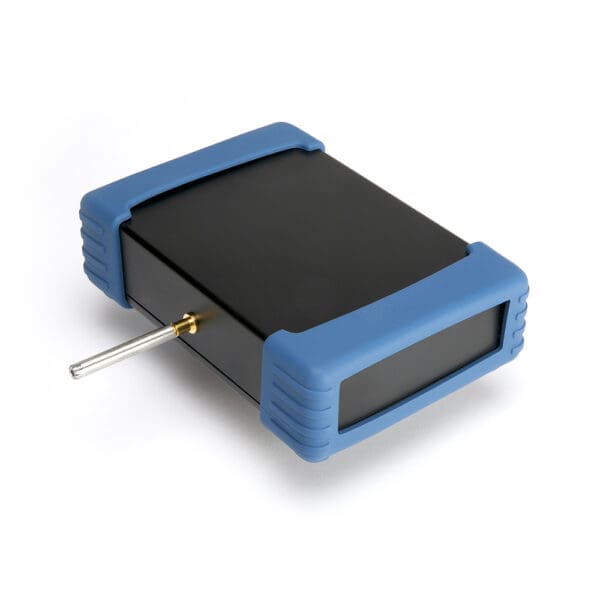

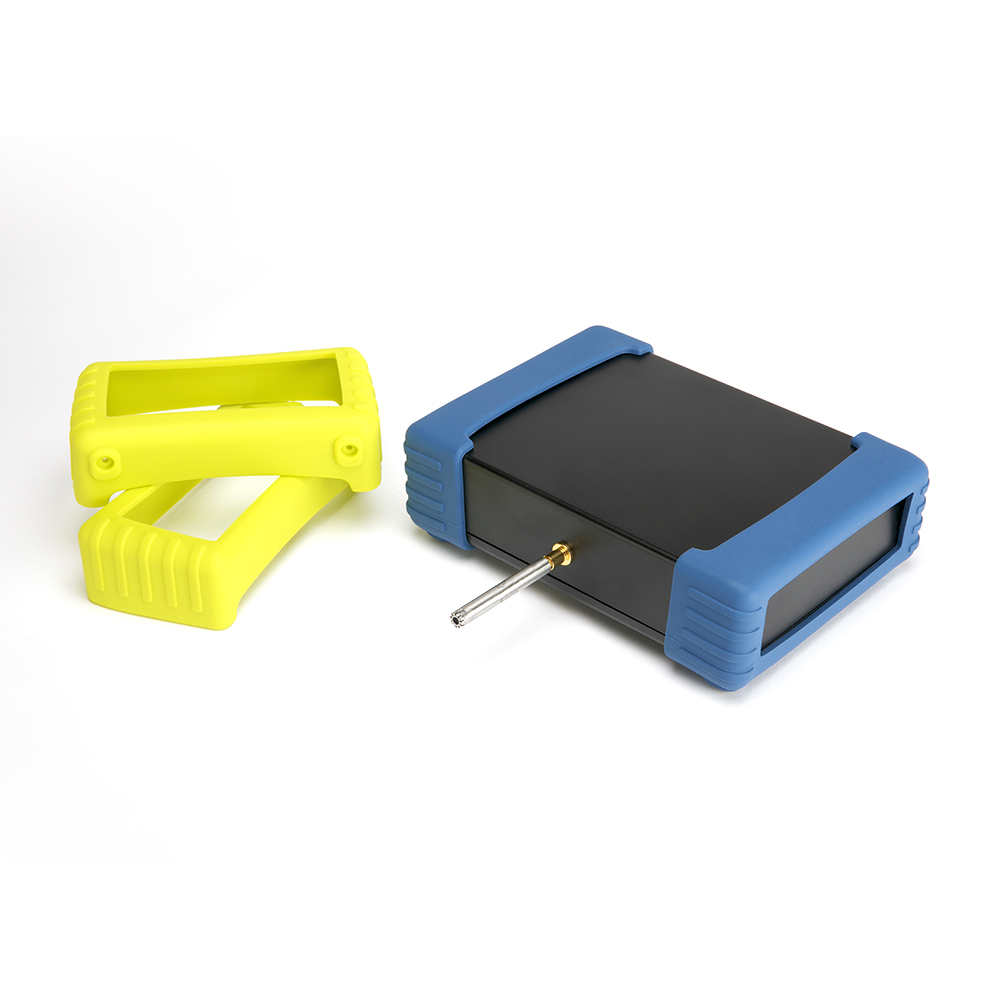

Sonitus Sonisens Sound Level Monitor (Indoor Class 1)

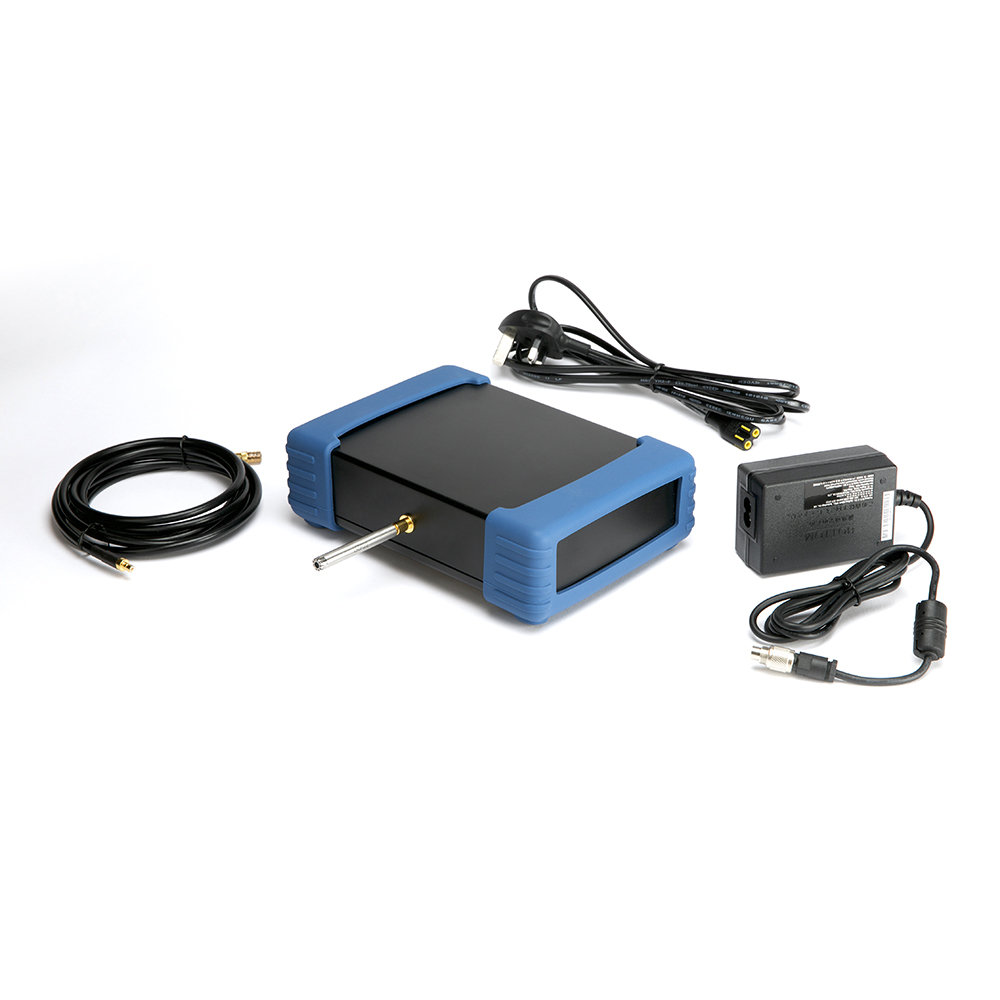

Indoor sound monitoring system that includes Class 1 microphone & AC power supply. Option to include a 4G modem or an ethernet port to connect to local LAN.

Product Information

The Sonitus Sonisens Indoor Sound Level Monitoring System (Class 1) with 4G supports your sound level measurement requirements for basic noise measurement, environmental noise assessments, product quality checks and evaluation of noise reduction engineering.

Product Features

  • SOUND LEVEL MEASUREMENT
    • Accuracy: IEC 61672 Class 1
    • Dynamic range: 30 to 121dB(A)
    • Frequency range: 20Hz to 20kHz
    • Frequency weighting: A and C weighting Parameters: LEQ, L05, L10, L50, L90, L95, LMAX
  • POWER REQUIREMENTS
    • Power input: 110V-240V AC
    • Sonisens: 8 – 16V DC
    • Power consumption: 2 Watts
  • COMMUNICATONS
    • Ethernet
    • Wi-Fi (2.4GHz)
    • 4G modem (optional extra)

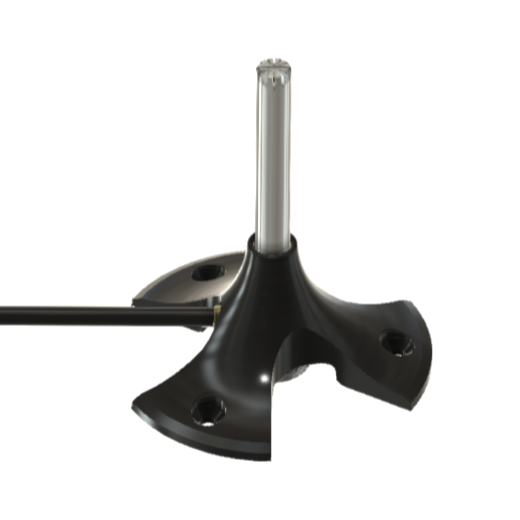

  • MICROPHONE
    • Sensitivity: 45mV/Pa
    • Connection: SMB to SMB (2m cable as standard)
    • Power supply: Constant current ICP, 18V 4mA

Product Benefits

  • LOGGING
    • Measurement period: 1, 5, 10, 15 or 30 minutes
    • Data storage capacity: 5 years (5 minute logging)
    • Procedure: Automatic measurement and logging
  • SONITUS CLOUD
    • Includes 2 years subscription to Sonitus Cloud (online data hosting, presentation and analysis)

TYPICAL APPLICATIONS INCLUDE:

  • Basic noise measurement
  • Environmental noise assessment
  • Product quality check
  • Evaluation of noise reduction engineering
  • Ambient Monitoring
  • Environmental Surveys
  • Fenceline Monitoring

Sonitus Cloud Demo

Link: app.sonitussystems.com

Username: demo@sonitussystems.com

Password: demo4321



Articles

Sonitus Systems & Specto Technology

Datasheet(s)

Sonisens AS180 Spec Sheet

Manual
