Auto-Level Tribrach

  • Auto-Level Tribrach (AD-12) is designed to specifically for use with AMTS and total station units. Rugged and stable design; they are intended to be installed in outdoor environments.
Category:
Shop

Shop

Product Information

Product Information

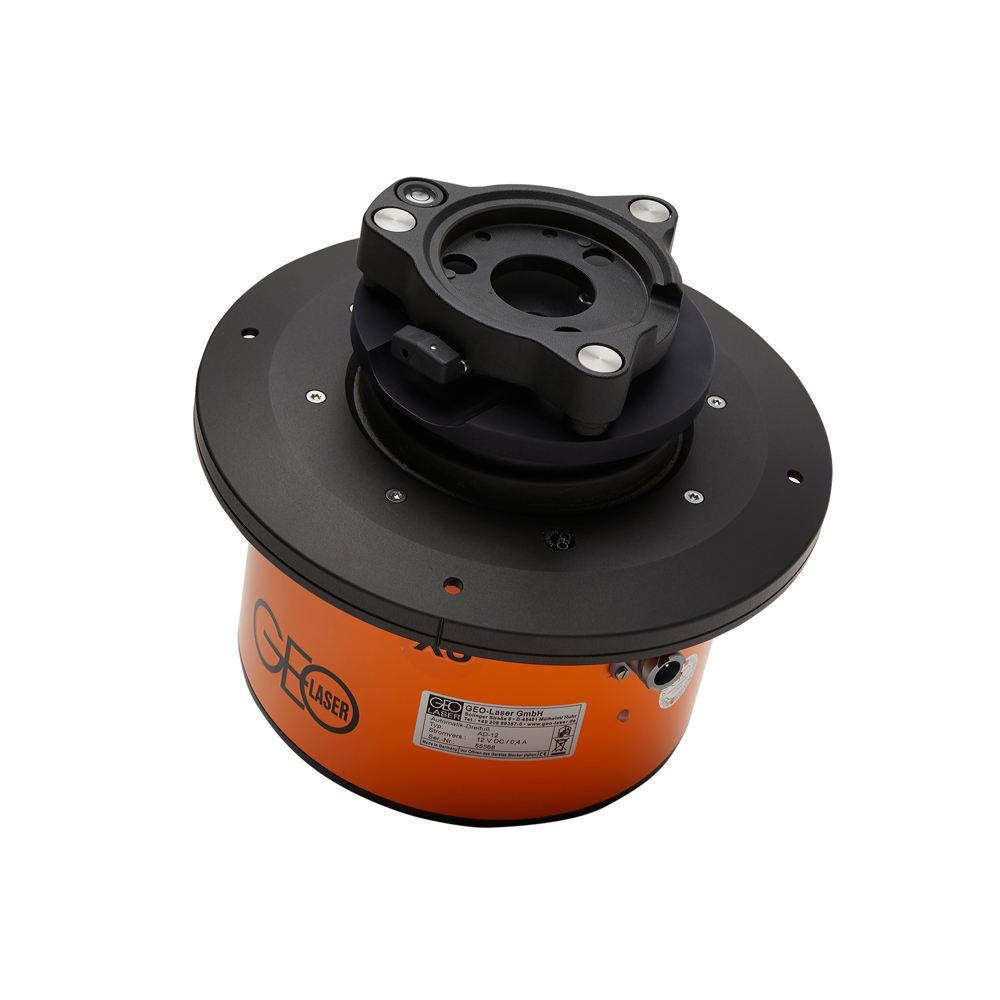

Auto-Level Tribrach for Automated Motorized Total Stations (AMTS)

Specto Technology carries stock of Auto-Level Survey Tribrach. It is designed specifically for use with AMTS and total station units.

PRODUCT FEATURES:

  • Leveling range of +/- 12 gon
  • Continuous leveling with an accuracy of 10 mgon
  • Automatically levels devices with weight up to 22lbs
  • Waterproof housing of all components including the servomotors, adjustment units, inclinometers and measuring and control electronics
  • Proven use cases for auto leveling of  Topcon, Sokkia, Leica and Trimble Total Stations
View More
Helpful Videos

Helpful Videos

Datasheet(s)

Additional Information on Auto-Level Tribrach

  • The Auto-Level Tribrach (AD-12) is fastened to a stand or platform with a central retaining screw 5/8".
  • Orientation of the horizontal axes is possible via notch markings.

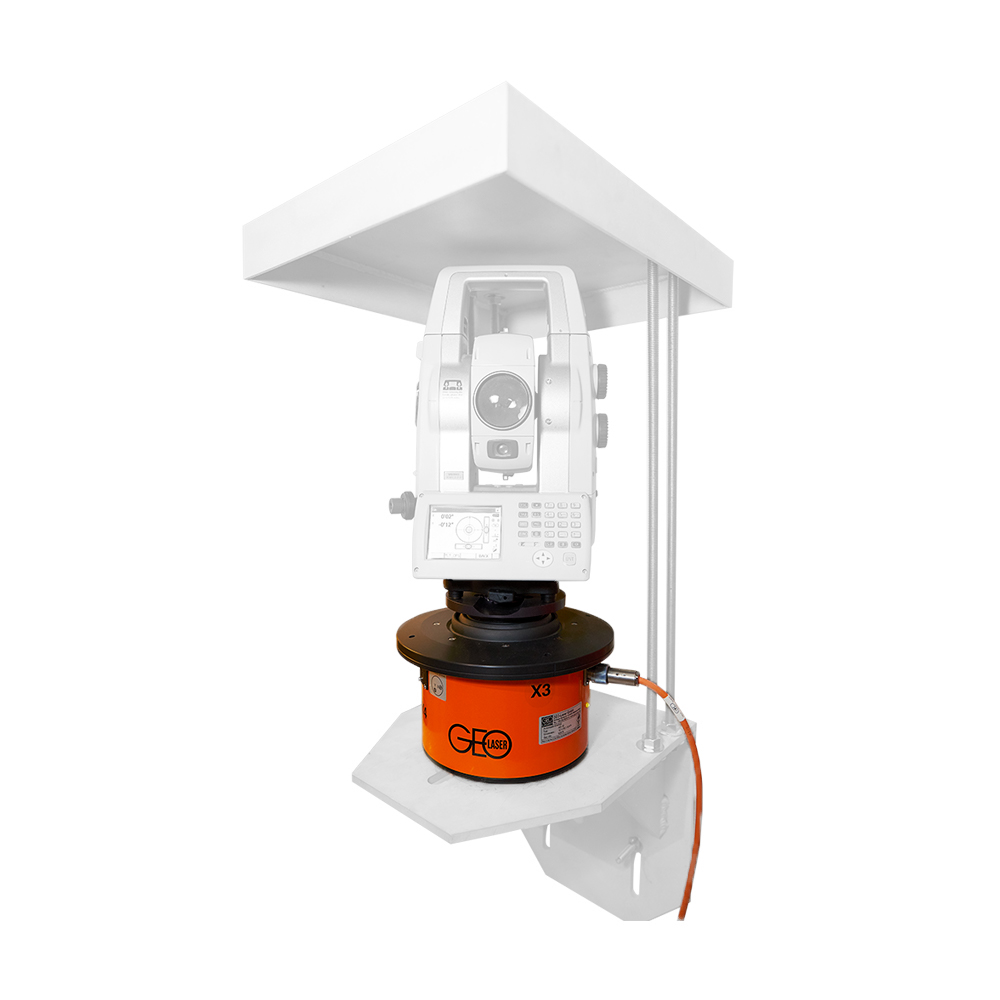

  • The theodolite or total station is placed in the tripod positively centered and locked in position.

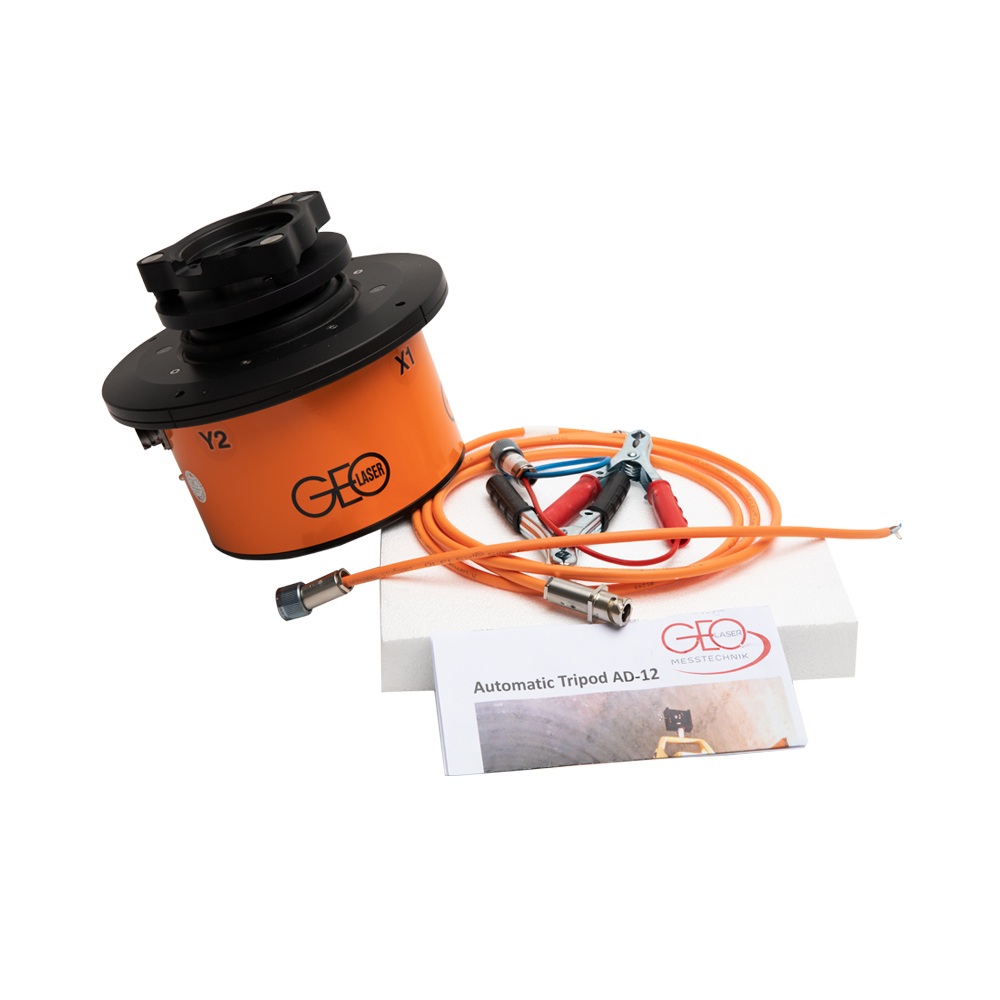

  • The power supply of the Auto-Level Tribrach is done via an connection cable either to an optional available 12 V rechargeable battery (EB-12) or to a power pack (NE-12/2A).
  • The Auto-Level Tribrach requires no special maintenance. It should, however, be protected from excessive dust ingress.
  • This automatic tripod is used for automatic leveling of surveying and laser instruments - especially our automated total stations.
  • The Auto-Level Tribrach (AD-12 Geo) can also be used for the automatic leveling of other devices with weights up to 10 kg.
  • The leveling range is +/- 12 gon.
  • Continuous leveling with an accuracy of 10 mgon
  • .
  • All components including the adjustment units, inclinometers, servomotors, and control and measuring electronics are integrated into a dust and waterproof housing.
  • The automatic tripod can be fastened to a platform or stand using a central retaining screw 5/8″.
  • Convenient notch markings for orientation of the horizontal axes.
  • The total station or theodolite can be placed in the tripod positively centered and in a locked in position.
  • The Geo-Laser AD-12 power supply is connected through a connection cable to an AC outlet or 12V battery.
  • Our Auto-Level Tribrach is the most reliable on the market - whether you are measuring subsidence measuring of buildings, monitoring of soil injection and tunnel construction, snow load measuring on roofs, bridge renovation, structure relocation, or automatic traversing.(AD-12 Geo)
  • In many areas of structural monitoring, walls, the subsidence of load-bearing structures, or the surrounding area is of vital interest.
  • A horizontal plane of reference can be created quickly and easily with one of our self-leveling rotary lasers.
  • Depending on your requirement - the structural element to be monitored is equipped in one or more places with laser receivers.
  • Our best-in-class laser receivers offer a precise resolution of 1/10 or 1/100 mm and a zero offset. They also connect to an external power supply and capture internal storage of measurement data, as well as data transmission via radio signal to a PC.
  • The Auto-Level Tribrach (AD-12 Geo) offers a competitive advantage over permanently installed systems.
  • When you work with robotic stations or in automatic traversing for long-term measurements you have to ensure that your measuring instrument is in the recommended working range of its compensator.
  • Through reference measurements - small deviations in absolute coordinate can be determined and even a small tilt can move it out of the working range, making a manual readjustment necessary.
  • This is where the Specto Technology Auto-Level Tribrach (AD-12 Geo) comes to the rescue.
  • The Auto-Level Tribrach (AD-12 Geo) was specially designed for automatic leveling of measuring and laser devices - automated total stations (AMTS) in particular.
  • Specto's Auto-Level Tribrach (AD-12 Geo) comes with an optional Transport case - great for moving from project to project.
  • Other devices with a weight of up to 10 kg can be automatically leveled in the +/- 12 gon range as well.
  • Specto Technology is proud to offer the Auto-Level Tribrach - AD-12 Geo with transport case.
  • Our Auto-Level Tribrach (automatic tripod AD-12 Geo) is used for automatic leveling of laser and surveying instruments, most importantly, automated total stations. You can also use it for the automatic leveling of other devices with weights up to 10 kg. The leveling range is +/- 12 gon. Leveling is continuous with an accuracy of 10 mgon. All components including the inclinometers, servomotors, adjustment units, and control and measuring electronics are integrated into a waterproof and dust proof housing. The AD-12 Geo has an optional Transport case.
