FIELD-READY VIBRATION MONITORING RENTALS
Vibration Monitoring Equipment Rentals
Rent field-ready vibration monitoring systems configured around your project, with the equipment, power, connectivity, software, alerts, reporting and specialist support required for practical deployment.
Field-ready monitoring systems. Not just equipment.
Same-Day Quotes
For most standard requests
Field-Ready Preparation
Configured, tested and packed for the project
Next-Day Mobilization
Shipment or local courier delivery available
Expert Support
Engineers and scientists with field experience
Vibration monitoring equipment
Svantek and Instantel provide the core vibration monitoring technology. Specto configures it into a field-ready rental system with the power, connectivity, software, reporting and project components your site requires.

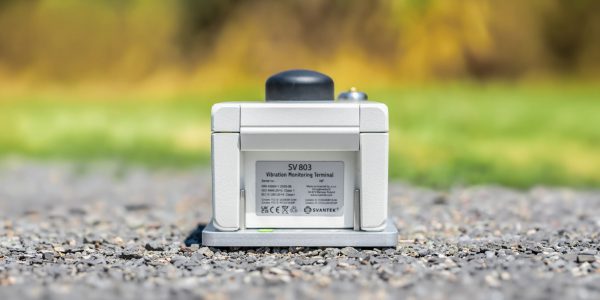

Svantek SV 803
Specto configures the SV 803 with suitable mounting, battery or solar power, SvanNET dashboards, event alerts and project reporting. Add an SV 303 noise terminal for a compatible combined system.

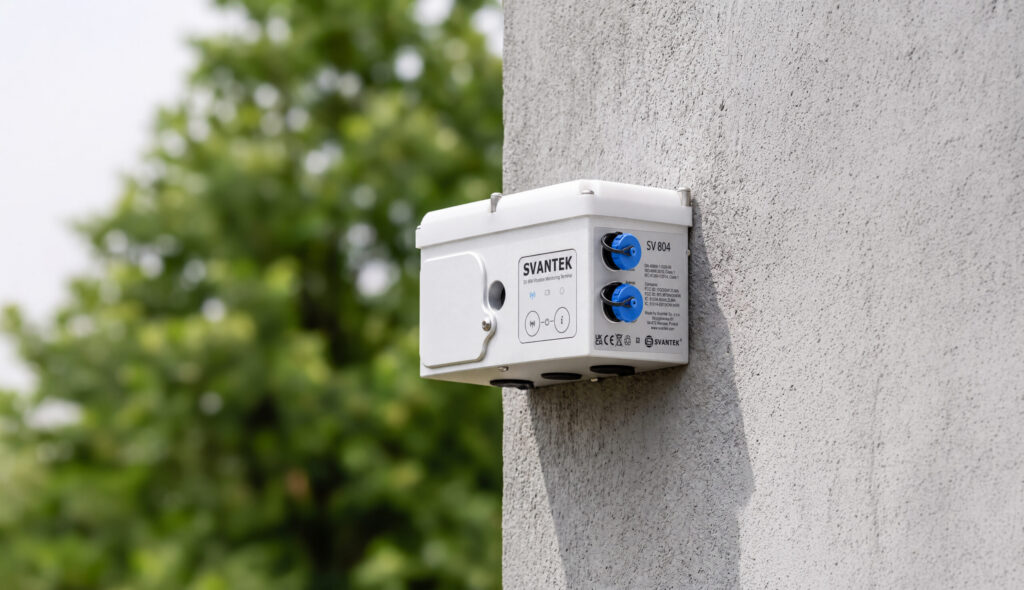

Svantek SV 804
The SV 804 provides a compact configuration for mounting to walls, beams and other structures. Specto prepares the communications, power and SvanNET workflow, with an SV 303 noise option where required.

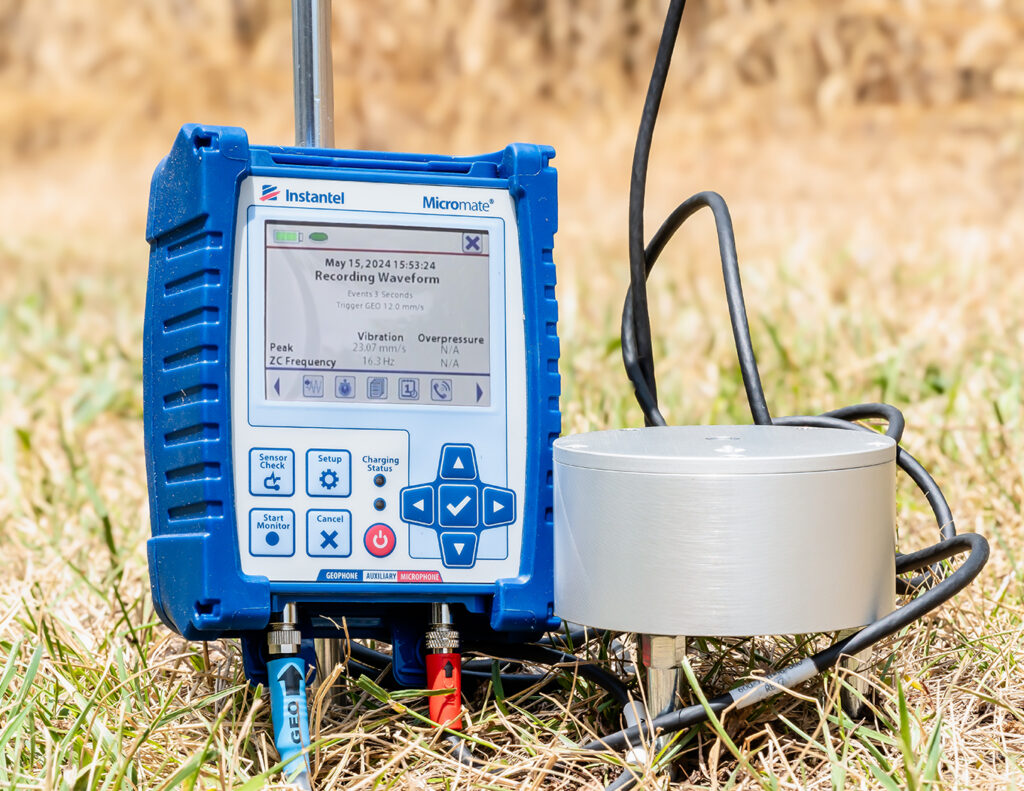

Instantel Micromate
Specto configures the Micromate with an external geophone, power, telemetry and the Instantel reporting workflow. Select a sound-level microphone or a linear air-overpressure microphone for the measurement required.
Build the monitoring system around your project
We configure and prepare your system before shipment, including project setup, alerts and reporting.
Field-Ready Vibration Monitoring System
Start with a Svantek SV 803, SV 804 or Instantel Micromate, configured and prepared by Specto for your project.
Prepared for deployment
Measurements
Vibration
Triaxial vibration · Peak Particle Velocity (PPV) · Dominant Frequency · Waveforms
Svantek analysis
RMS · VDV · FFT · 1/3 octave · VC / user-defined curves
Noise options
SV 303 with SV 803 / SV 804; compatible sound-level microphone with Micromate.
Blast air overpressure
Available for Instantel and Svantek monitors.
Power & Connectivity
Power
AC / DC · Battery · Solar · PoE (SV 803 & 804 option)
Connectivity
4G (SV 803 / SV 804); external modem (Micromate); LAN option for SV 803 & 804.
Software & Reporting
Software & workflows
SvanNET · SvanPC++ · THOR · Vision II · Auto Call Home · Tableau · eagle.io and iTwin project dashboard
Data, alerts & reporting
Dashboards · PPV Trends · Event Reports · Daily PDF Reports · Waveforms · Excel Tables · Advanced Charts · Configured Alerts
WHAT THE DATA GIVES YOU
Vibration data from the field to the project team
Keep each instrument connected to the right data workflow, with events, alerts and reports configured around your monitoring requirements.
Svantek workflow
Use SvanNET for connected SV 803 and SV 804 data, alerts and reporting, with SvanPC++ for detailed post-processing.
Instantel workflow
Use the configured Micromate telemetry and Auto Call Home workflow with THOR or Vision II for event management and reporting.
Events & thresholds
Review PPV, frequency and event histories against the criteria selected for the project.
Project data delivery
Bring reports and selected monitoring data into a project dashboard or wider reporting workflow where configured.
A rental experience built around real project schedules
We manage rentals like projects, not transactions — with hands-on support from quote through return.
Same-day quotes
Most standard rental requests are quoted the same business day.
Field-ready preparation
Systems are assembled, configured and tested before shipment, with calibration completed or verified where applicable.
Next-day mobilization
Next-day shipment or local courier delivery is available for most projects.
Project setup & onboarding
One hour of online project setup and onboarding is included per project. Dashboards, alerts and reporting are configured where supported.
Flexible rental terms
Short- and long-term options. Monthly rentals cover a full calendar month, not a 28-day cycle. Rental pauses of up to one month are available by agreement.
Customer success
Project check-ins, technical support, replacement coordination, return logistics and project closeout support.
Vibration monitoring applications and project requirements
Explore monitoring for construction, structural response, blasting, infrastructure and sensitive project environments.
Vibration examples and resources
See how Specto brings vibration monitoring into a field-ready project system, with appropriate power, connectivity and data workflows.

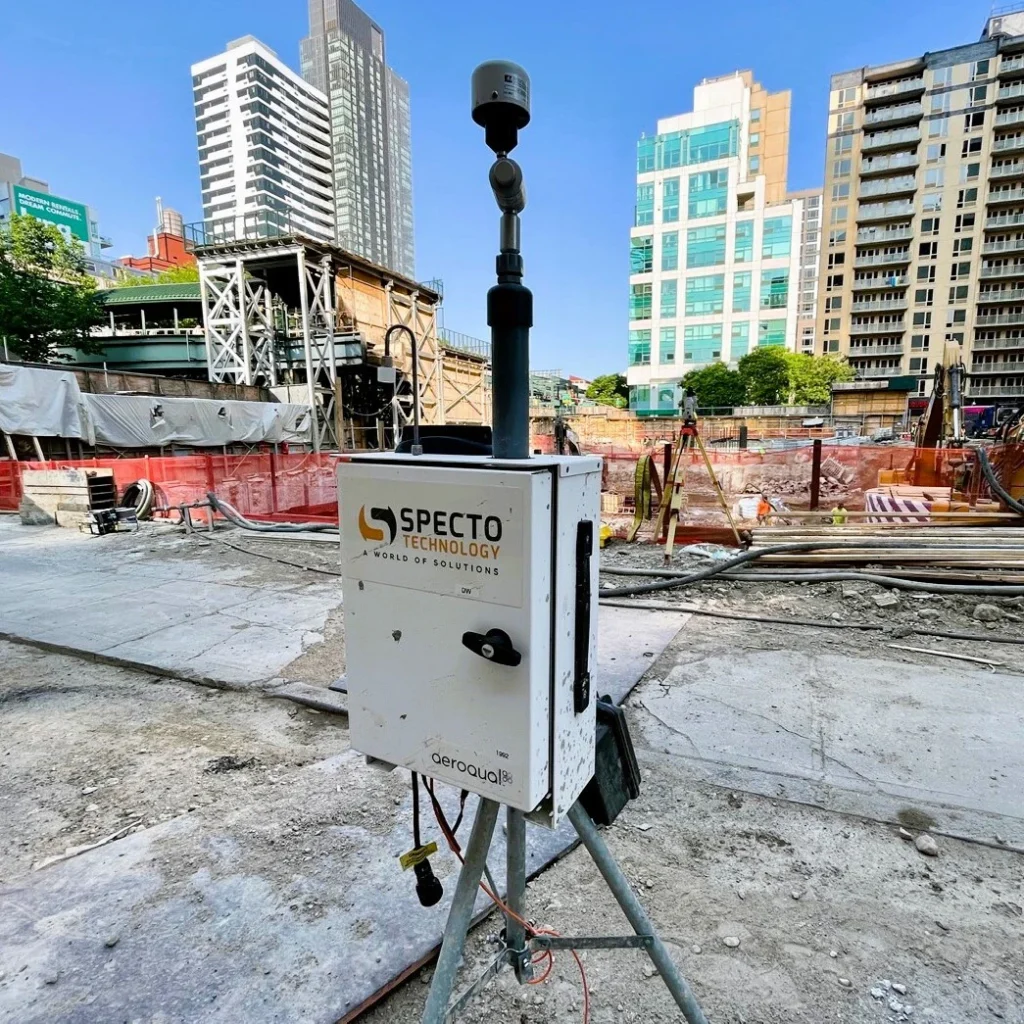

PROJECT EXAMPLE · CALIFORNIA

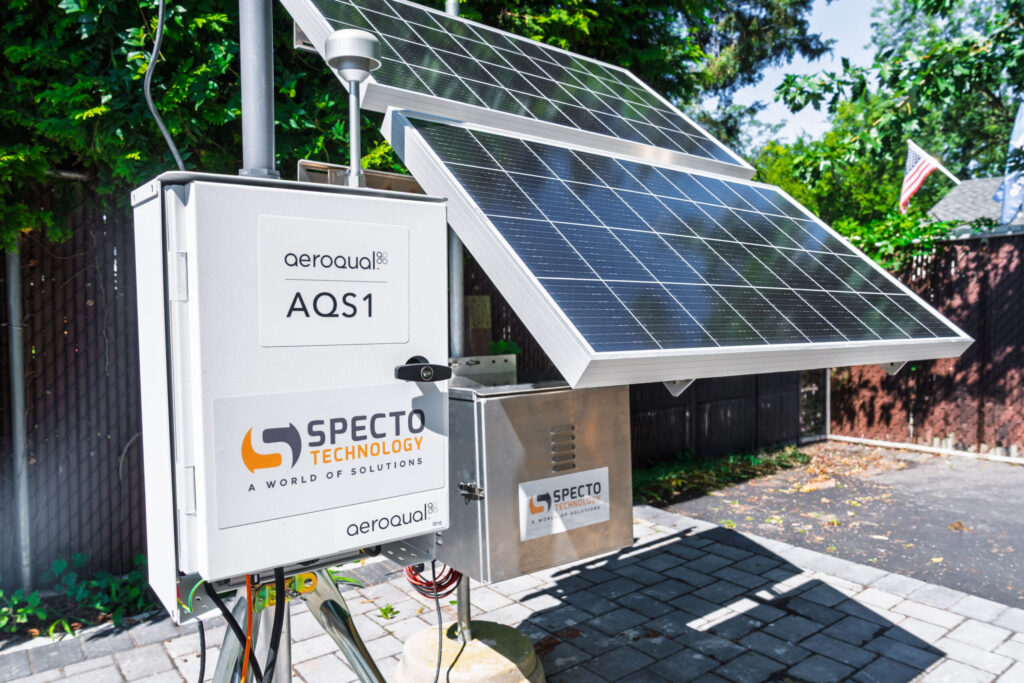

Haynes Generating Station
A published demolition example combining dust and vibration monitoring with project power and data management.
RELATED SYSTEM · TECHNICAL RESOURCE

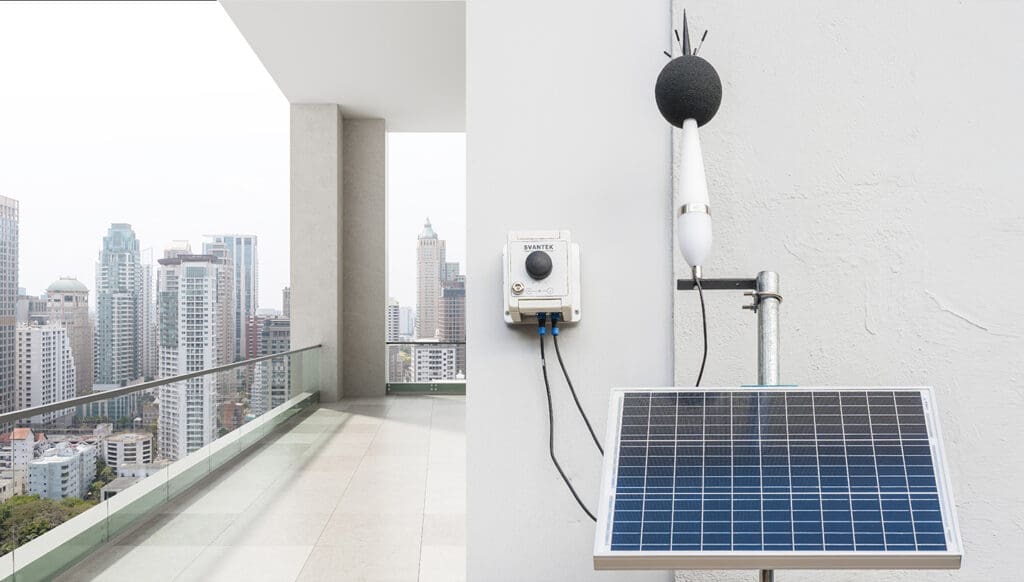

Combined noise & vibration
Explore the SV 303 noise terminal and how noise measurement can be included in a compatible vibration rental system.
CASE STUDY LIBRARY
More project examples
Browse Specto’s published monitoring project examples, including construction, demolition, blasting and multi-technology projects.
Questions about vibration monitoring rentals
Practical answers about selection, system configuration, data and mobilization.
Still planning the project?
Tell us the location, activity, vibration criteria, start date, expected duration, mounting conditions and reporting requirements.
What vibration monitoring equipment can I rent?
Specto rents field-ready vibration monitoring systems built around the Svantek SV 803, Svantek SV 804 and Instantel Micromate. We configure the mounting, power, communications, software, reporting and compatible microphone options for your project.
How do I choose between the SV 803, SV 804 and Micromate?
The SV 803 supports connected ground and building vibration projects. The SV 804 is a compact direct-mount option for structures. The Micromate supports vibration, blasting and sound workflows with an external geophone and selected microphone. Specto helps match the platform to the required measurements and field setup.
Can I monitor noise and vibration with the same system?
An SV 303 noise terminal can be integrated with an SV 803 or SV 804 for combined sound and vibration monitoring. A Micromate can use a compatible sound-level microphone. These are different configurations; tell us the required sound and vibration measurements so we can specify the appropriate combination.
Is a sound-level microphone the same as a blast microphone?
No. Environmental sound-level measurement and blast air-overpressure measurement use different microphone configurations and reporting methods. For Micromate rentals, identify which measurement your project requires rather than treating the microphones as interchangeable.
Can I receive alerts and event reports remotely?
Yes, with the selected communications and software setup. The SV 803 and SV 804 use the SvanNET workflow. Micromate remote reporting uses configured telemetry and the selected Instantel or Specto-hosted workflow. Report timing and notifications are set for the project.
Can I monitor human response or sensitive equipment?
Selected Svantek configurations support metrics and analyses such as VDV, RMS, FFT, 1/3 octave and user-defined or VC criteria. Tell us the assessment method and required limits so Specto can match the instrument and analysis functions. These functions should not be assumed to apply identically to every rental model.
Does a field-ready system still need site installation?
Yes. Specto prepares and tests the rental before shipment, but the project team still needs to place, mount or couple the sensor correctly, confirm its orientation and verify the site setup. Share the mounting conditions and access constraints before the rental is prepared.
Can the system run on battery or solar power?
Battery and solar configurations are available for the project systems. Power requirements depend on the instrument, communications, accessories and operating schedule. Power over Ethernet is a specific SV 804 option rather than a universal feature of all three platforms.
How quickly can the system be quoted and mobilized?
Most standard rental requests are quoted the same business day when the project information is available. Next-day shipment or local courier delivery is available for most projects, depending on request time, inventory, configuration and destination.
Can I rent for less than a month or pause a rental?
Short- and long-term rentals are available. Monthly rentals cover a full calendar month, not a 28-day cycle. By agreement, rental charges can be paused for up to one month during significant downtime or between projects while you retain the equipment. Your quote sets out the rental duration and applicable terms.
What support is included during the rental?
Specto provides project check-ins and technical support from engineers and scientists with field experience, available 7:30 a.m. to 6:30 p.m. Eastern Time. Our team coordinates replacement equipment, return logistics and project closeout support. Replacement equipment is shipped overnight free of charge across the United States; contact our team to arrange the shipment.
Explore related monitoring rentals
Request a Vibration Monitoring Rental Quote
Share the location, activity, vibration criteria, start date, expected duration, mounting conditions and reporting requirements. Specto will recommend the equipment and field-ready configuration for your project.
