Thread Solar Power Kit (Large)

Product Information

PRODUCT INFORMATION:

This turnkey solar power kit is sized for geographical areas with moderate solar exposure. Utilizing high efficiency components, advanced technology to allow reliable operation and easy troubleshooting and a best-in-class light weight, heavy duty LiFePO4 battery, this system is designed to be mounted on the ground.

PRODUCT FEATURES:

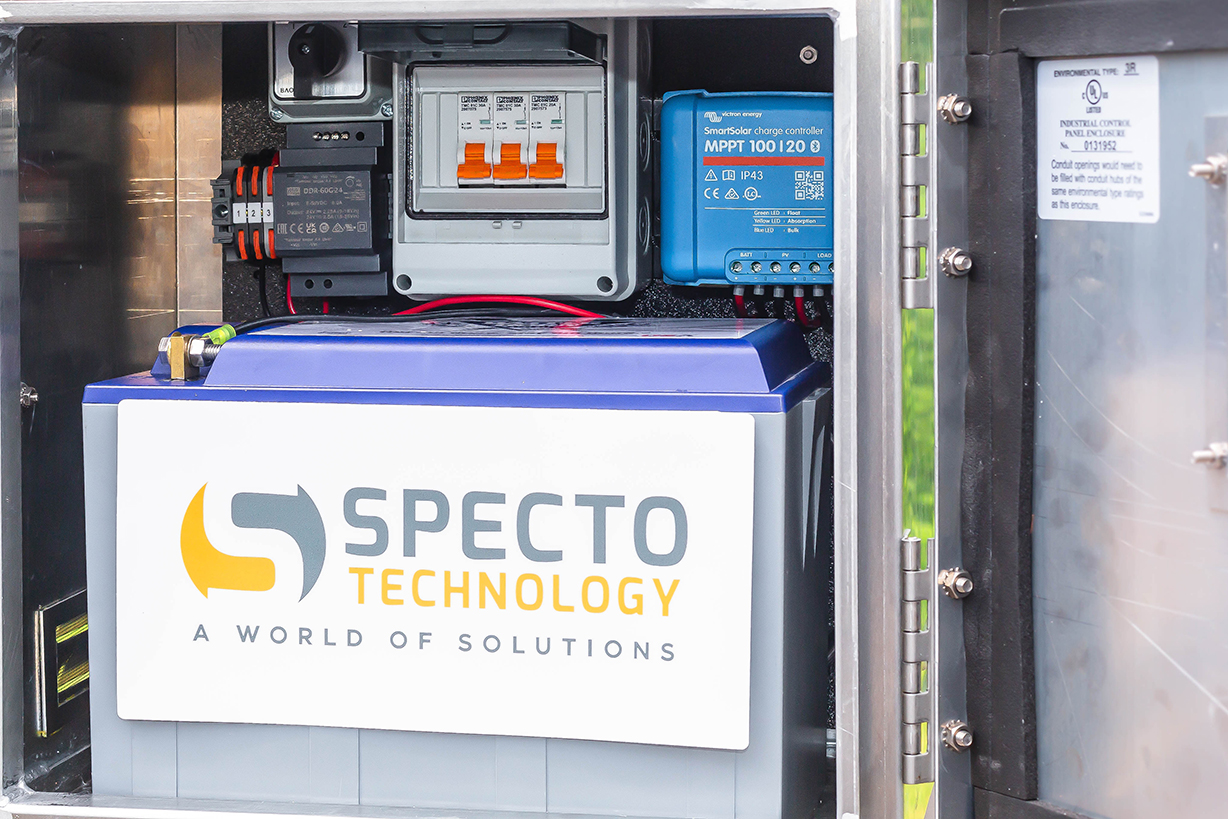

  • Aluminum battery enclosure, back panel
  • On-site battery capacity, voltage input/output monitoring
  • Pad-lockable latch

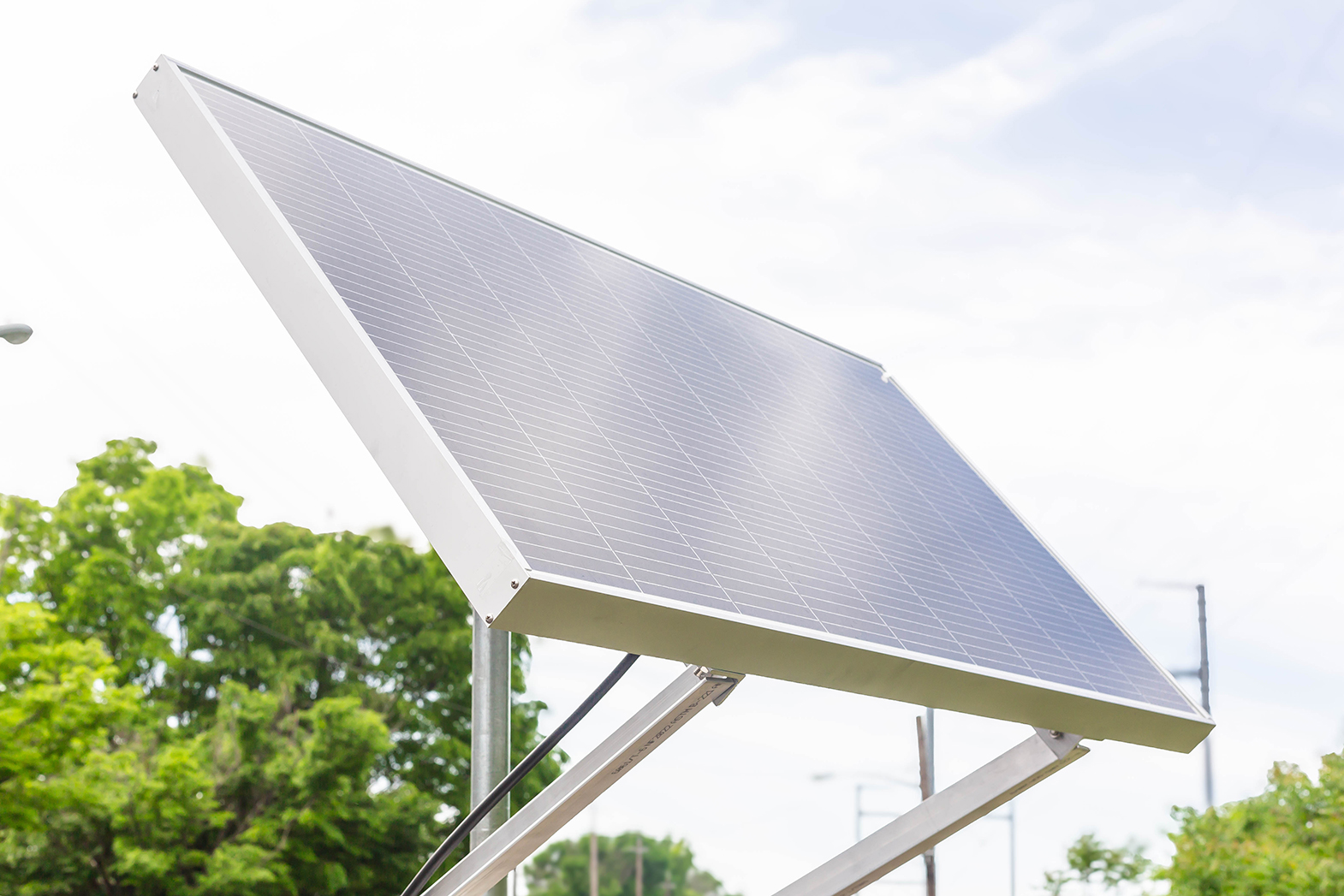

  • 2 x 150W 12V Solar Panels

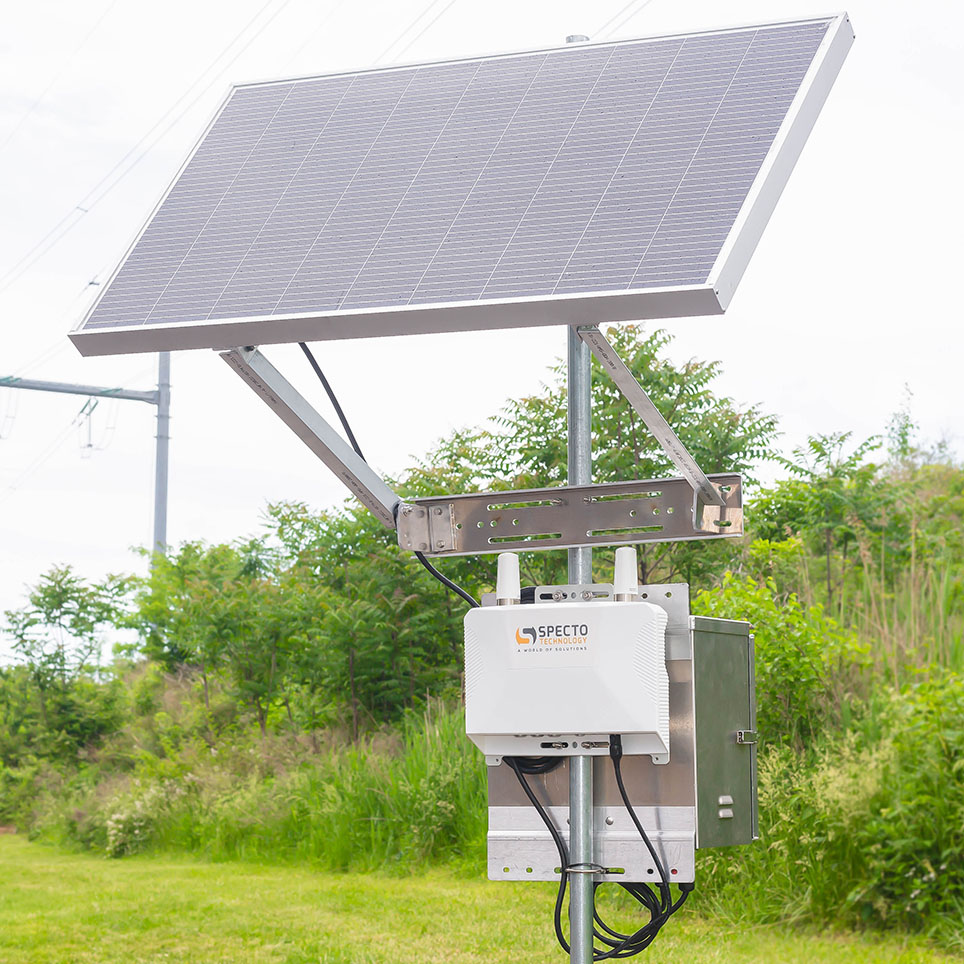

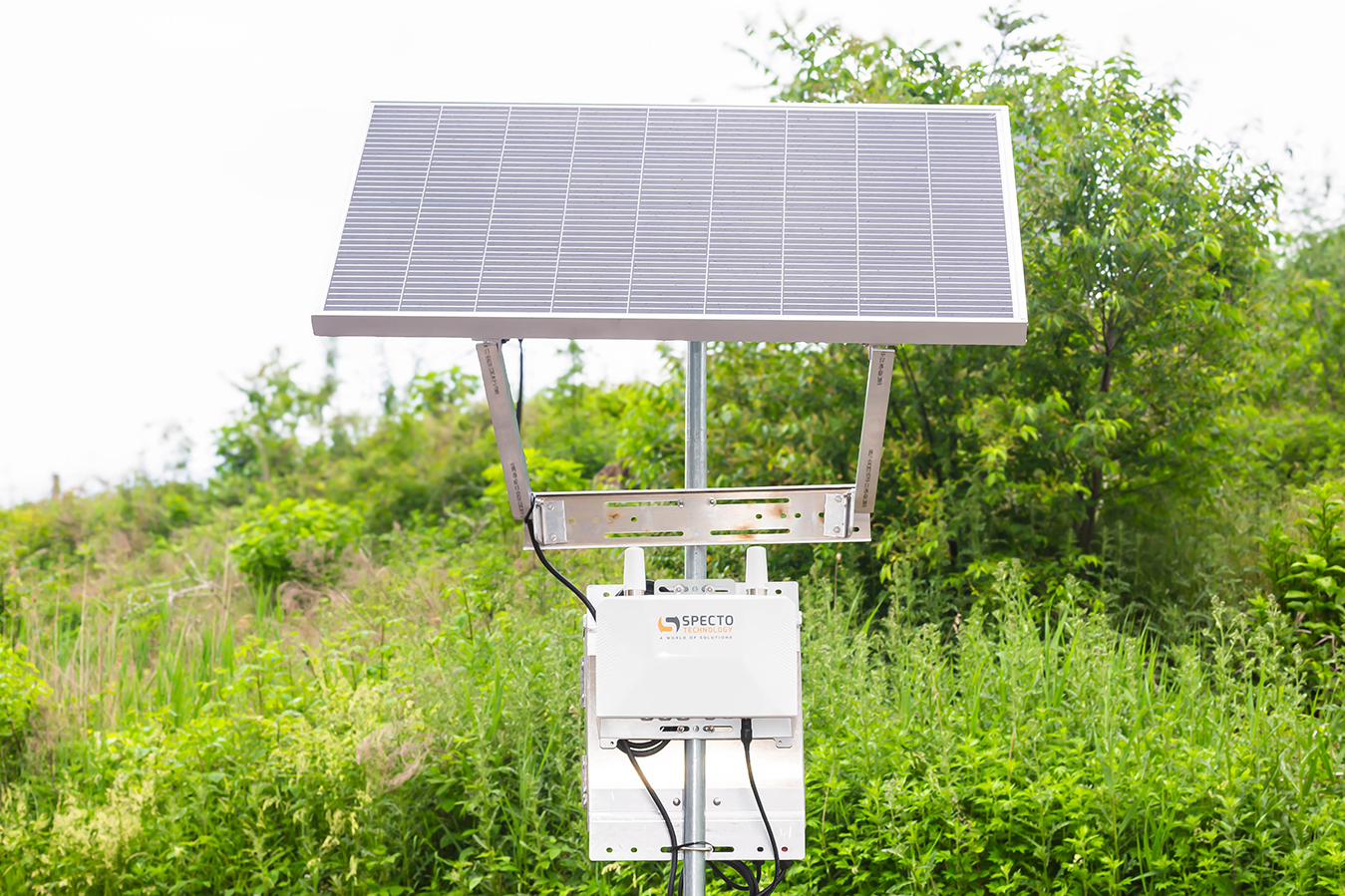

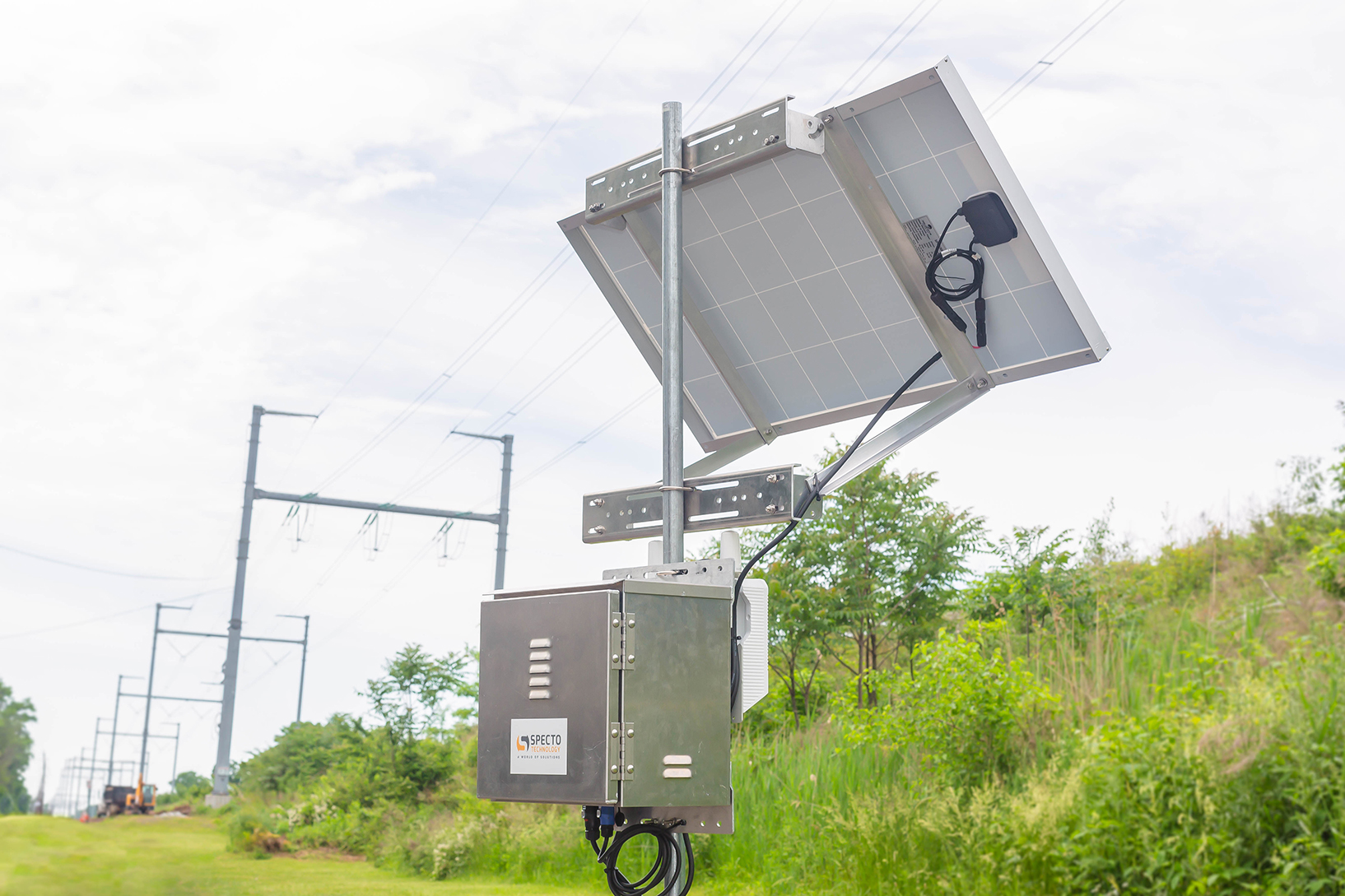

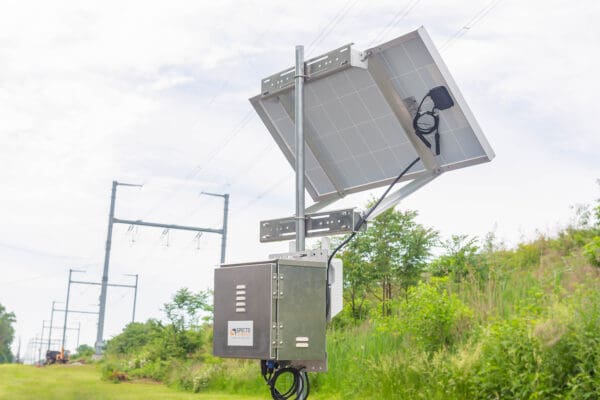

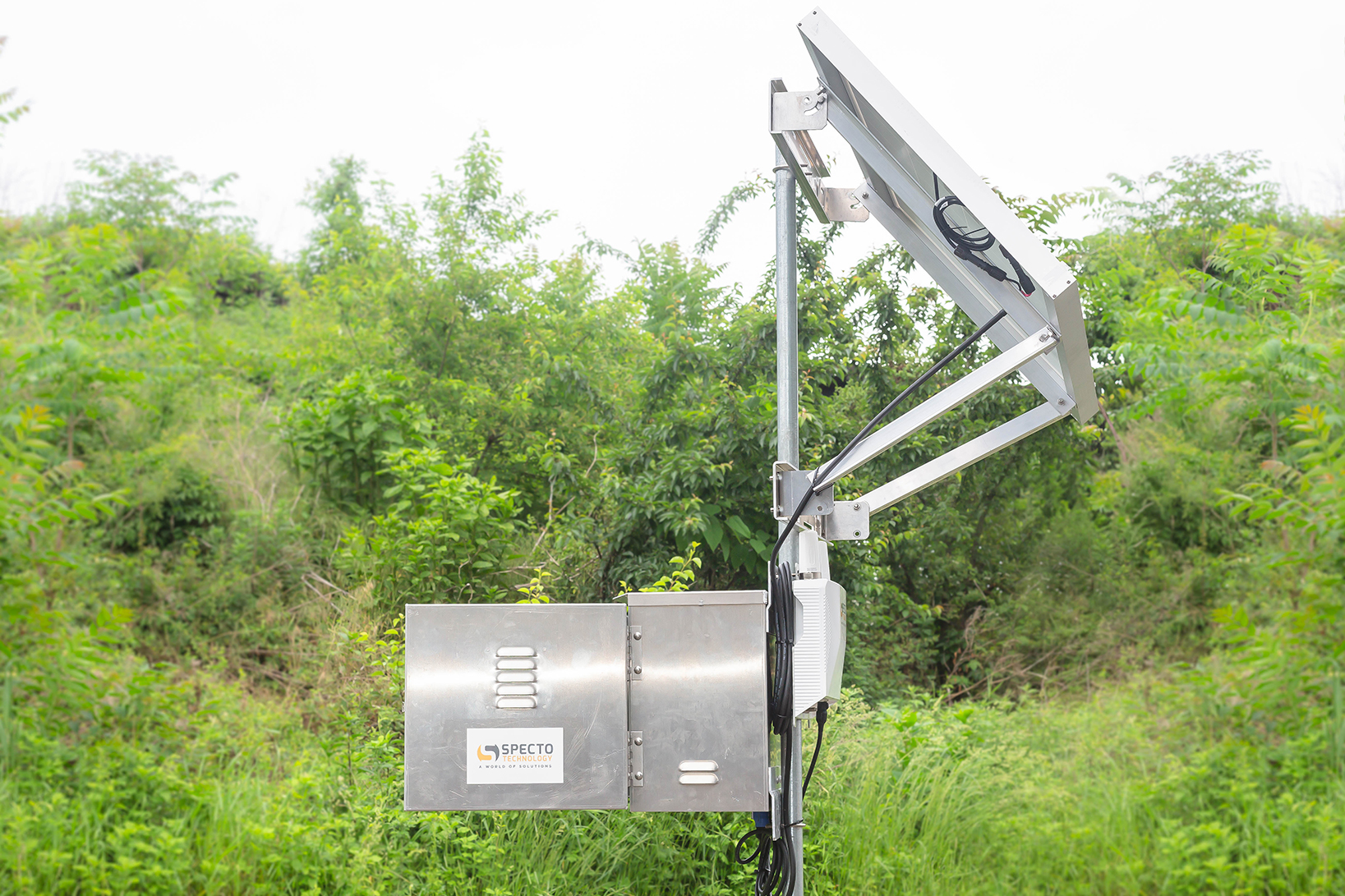

  • Ground Mount/Pole Mount kit for solar panels

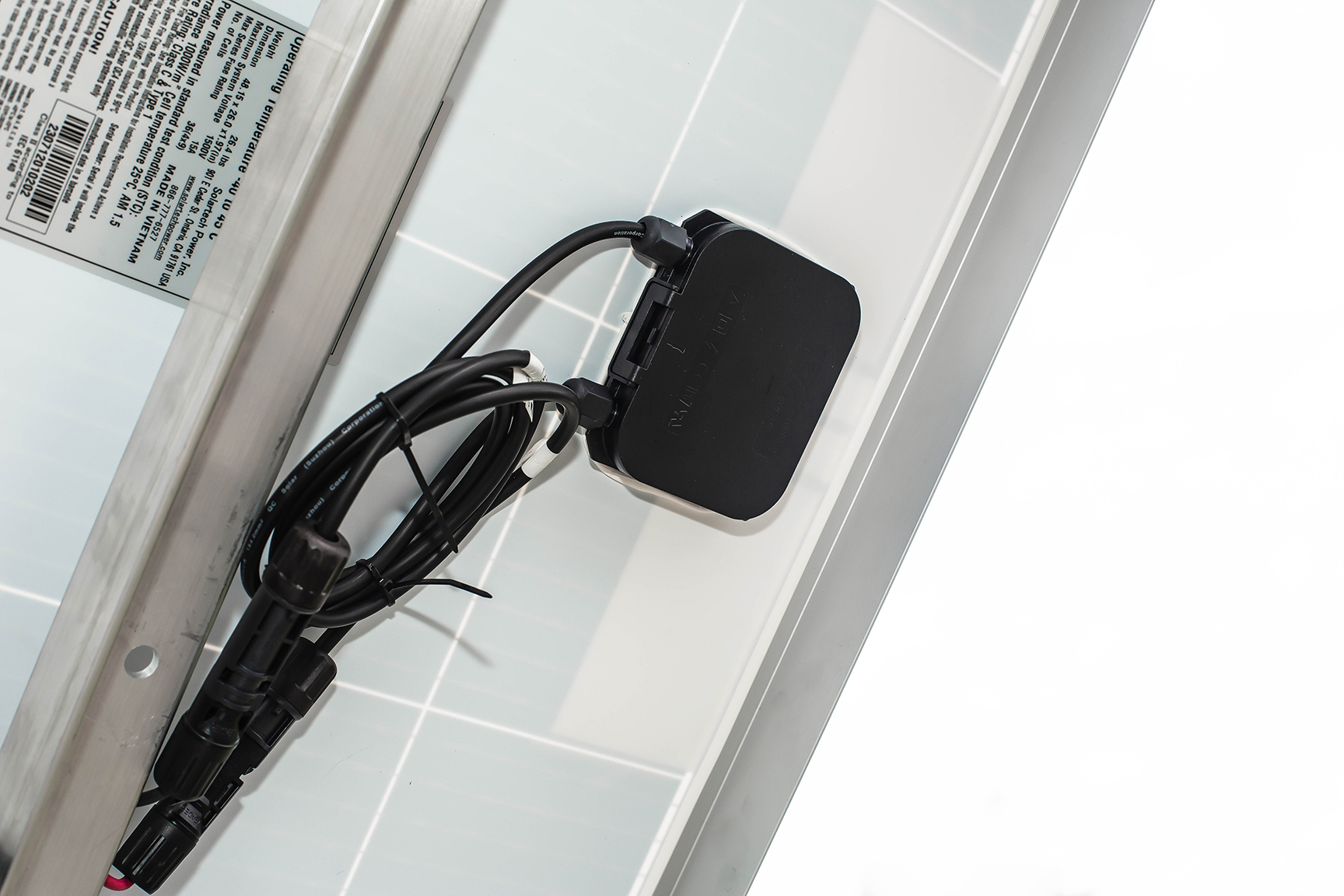

  • 20ft Extension Cable for Solar Panels

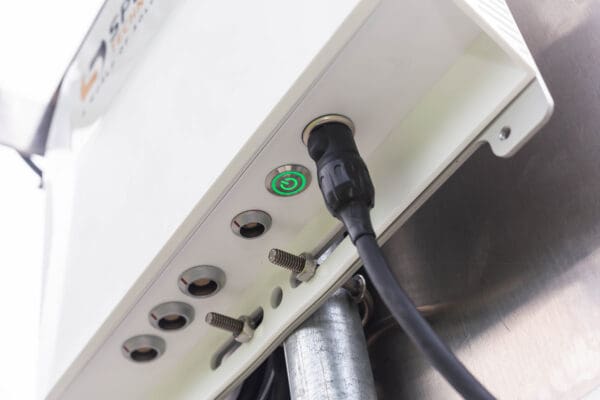

  • SMART Solar Controller with connection cables/plugs
  • High capacity/quality MPPT Solar charge controller 20Amp (bluetooth enabled)
  • Circuit breakers & cables
  • 2 x 100Ah 12V LiFePO4 deep cycle batteries
  • Assembly & Testing

PRODUCT BENEFITS:

  • Quick setup time
  • Compatible with most data acquisition systems
  • Ideal for long-term, outdoor monitoring projects
  • Bluetooth app allows detailed system monitoring of charge controller

TECHNICAL SPECIFICATIONS:

  • Enclosure Size: 22.625” x 19.25” x 19.625”
  • Enclosure Material: Aluminum
  • System Weight: 35lbs (without battery), 97lbs (with battery)
  • Circuit Breakers: 20Amp, 100V
  • Solar Panel: 2x 150W, 24V

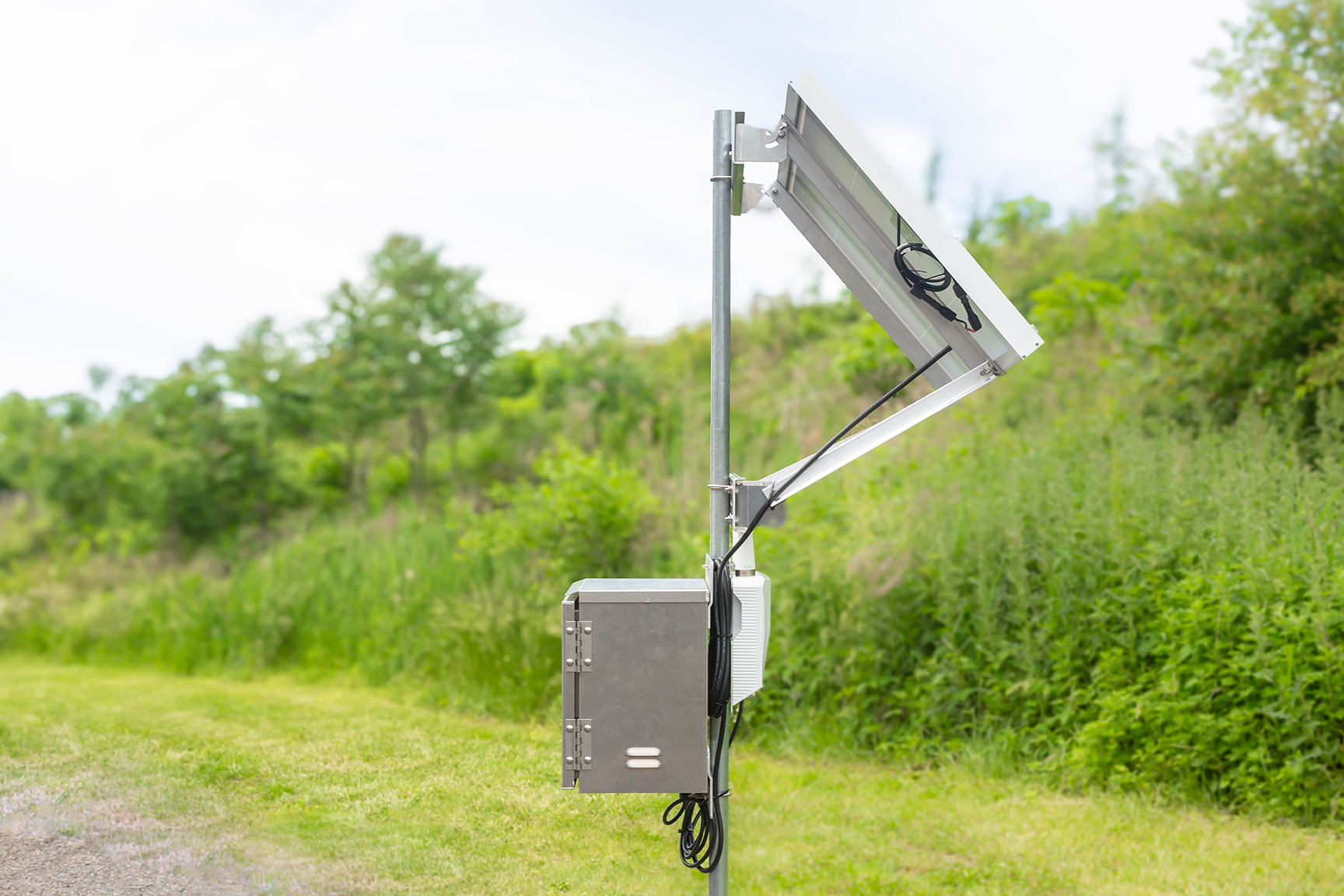

  • Panel Mount: Fits 2” pole or vertical surface (Customers are responsible for providing the necessary mounting hardware when using a Non-Specto mounting location.)
  • Battery Capacity: Recommended 2 x 100Ah, 12V LiFePO4*
  • *System can be configured for Lead Acid battery upon request

Datasheet(s)

Thread Solar Power Kit (Large) Datasheet
