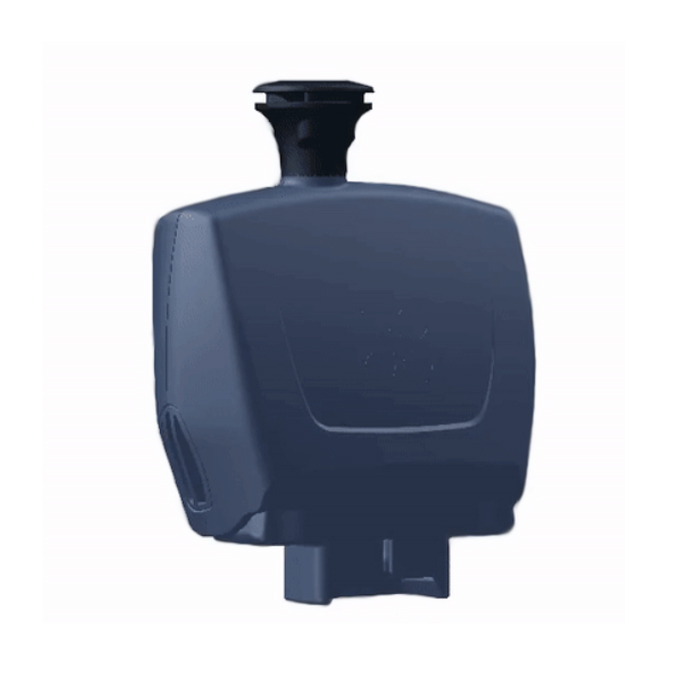

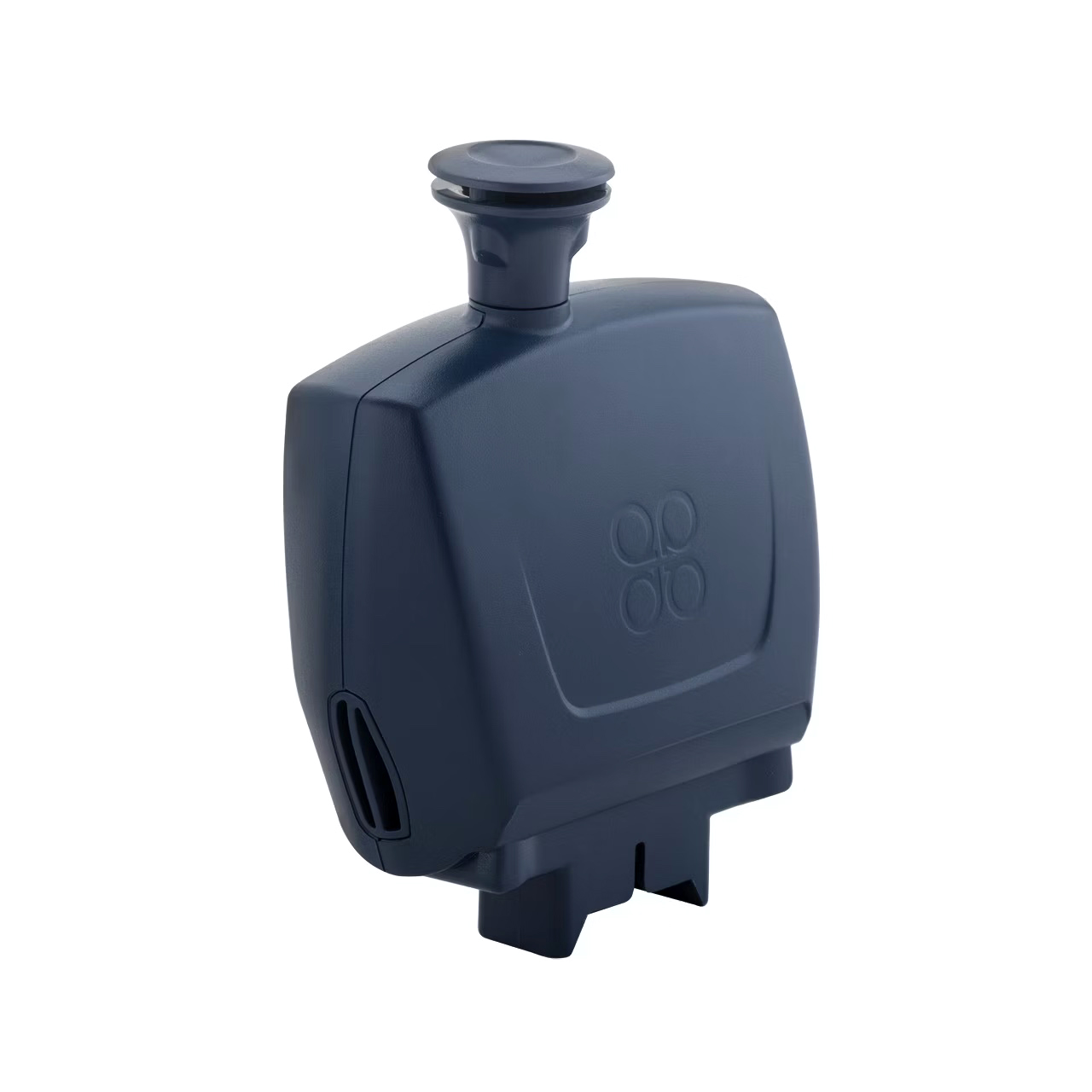

PMX Sensor Head (PM1, PM2.5, PMresp, PM10, & TSP)
$1,460.00
Availability: 10 in stock
Product Details
The PMX sensor head features an optical particle counter that sizes and counts particles by measuring scattered light. The scattered light is converted into a voltage pulse, with the pulse amplitude corresponding to the particle diameter. Particles are then categorized into one of six particle count channels based on their size. A proprietary algorithm is used to convert the particle counts in each size fraction into mass measurements for PM1, PM2.5, PMresp, PM10, and TSP.

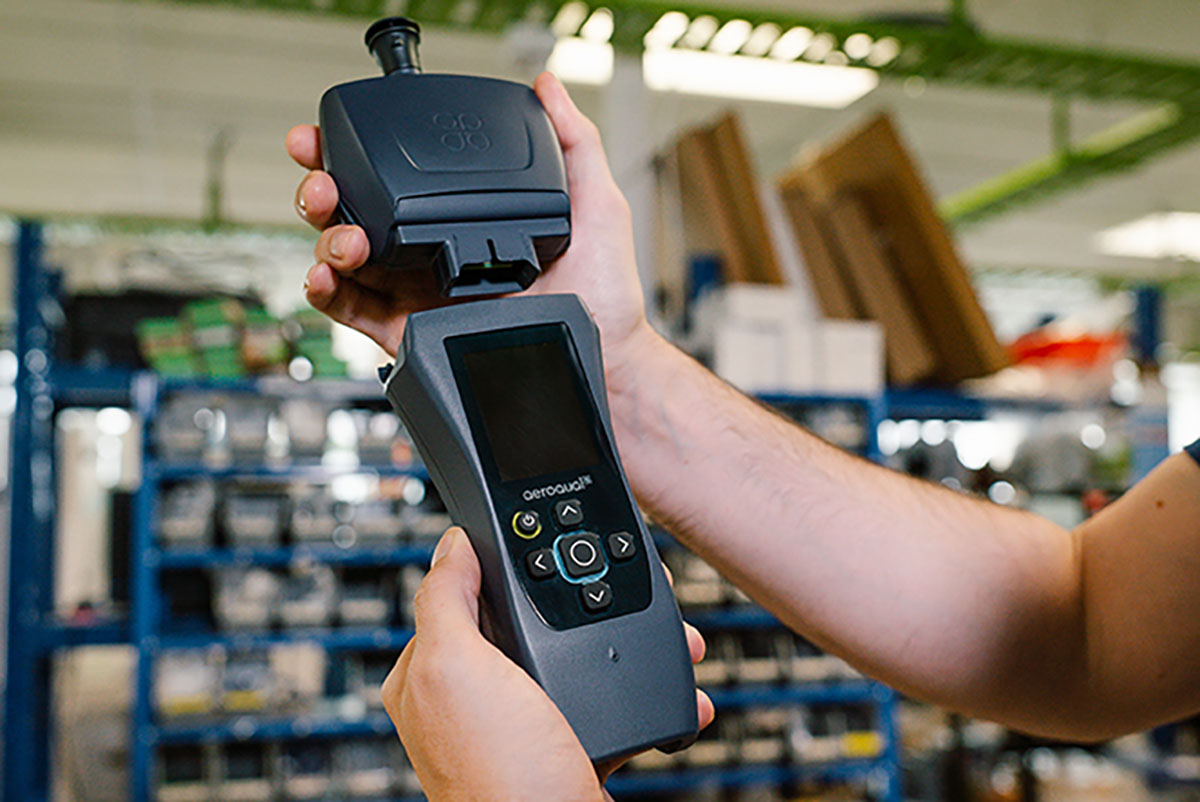

The PMX sensor head is compatible with Aeroqual Ranger.
- Never lose data again and access more information for less effort with Ranger Cloud’s real-time data and alerts, enabled from anywhere using Wi-Fi capability
- Simultaneously display and measure PM1, PM2.5, PMrsp, PM10, and TSP fractions
- Enjoy zero downtime on factory calibrations with Hot-swap service
- Suitable for diverse projects, with support for 27 gas sensor heads and 15 gases (sensor heads available separately)
What can it measure?

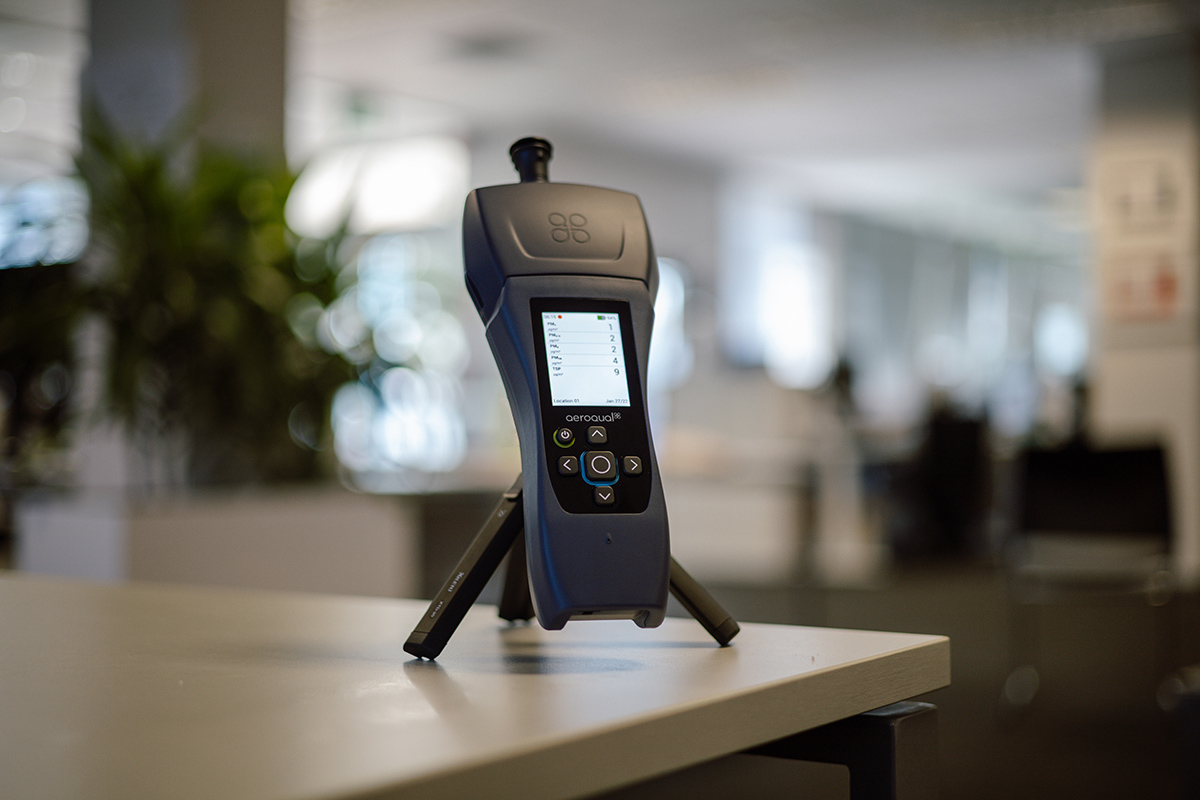

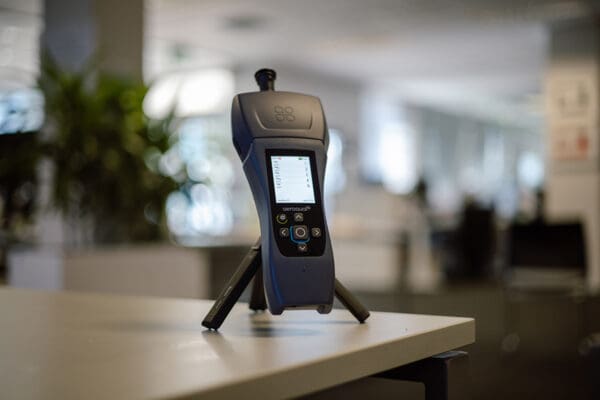

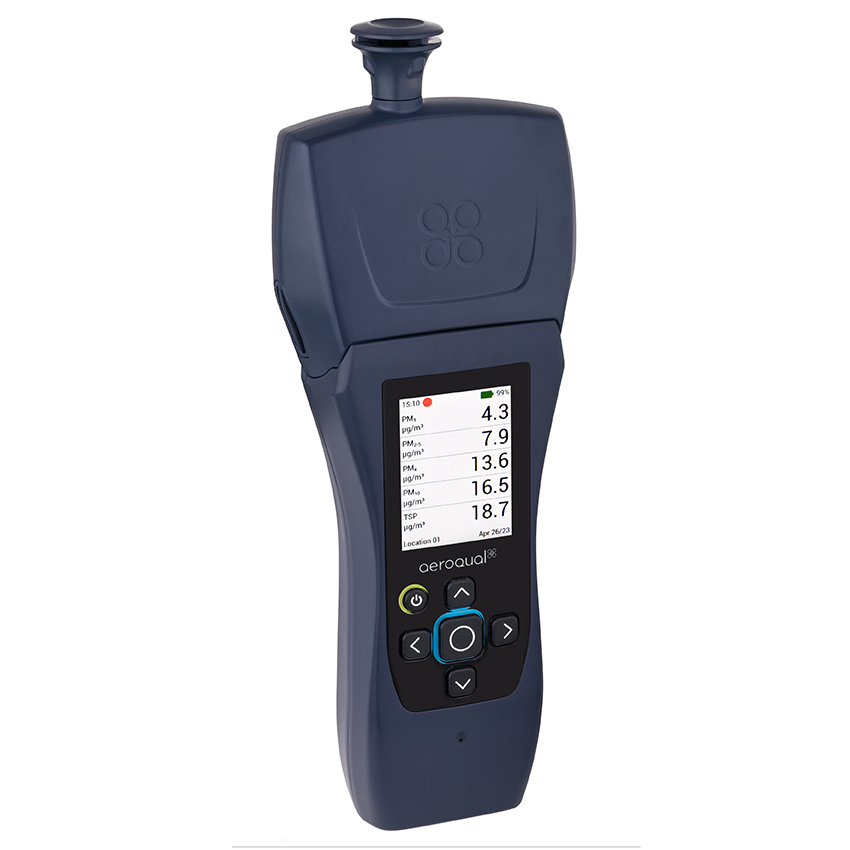

The Ranger | Dust is a real-time, active sampling monitor equipped with a laser optical particle counter and particle binning technology. It simultaneously samples, logs, and displays PM1, PM2.5, PMrsp, PM10, and TSP, with mass calculations adjusted using Kohler theory. The device also features an omnidirectional inlet, ensuring accurate sampling from any angle.
For environmental applications, Ranger provides a color-coded air quality index based on the U.S. AQI standard.
This product includes:
- Ranger monitor base
- Active-sampling laser particle counter (LPC) sensor head: PM1, PM2.5, PMrsp, PM10 and TSP
- Calibration certificate
- USB-C power and data cable
- USB-C power charger
- Zero calibration kit
Who is it for?
Industrial and occupational hygienists, air quality consultants, indoor air quality professionals, building certifiers and environmental health and safety (EHS) professionals use Ranger | Dust.
Practical applications for Ranger | Dust include:
- Industrial and occupational hygiene monitoring
- Personal exposure monitoring
- Indoor and outdoor air quality assessments
- Environmental impact assessments
- Ambient air quality monitoring
- Engineering control assessments
