Trimble Settop M1 Controller
Product Information

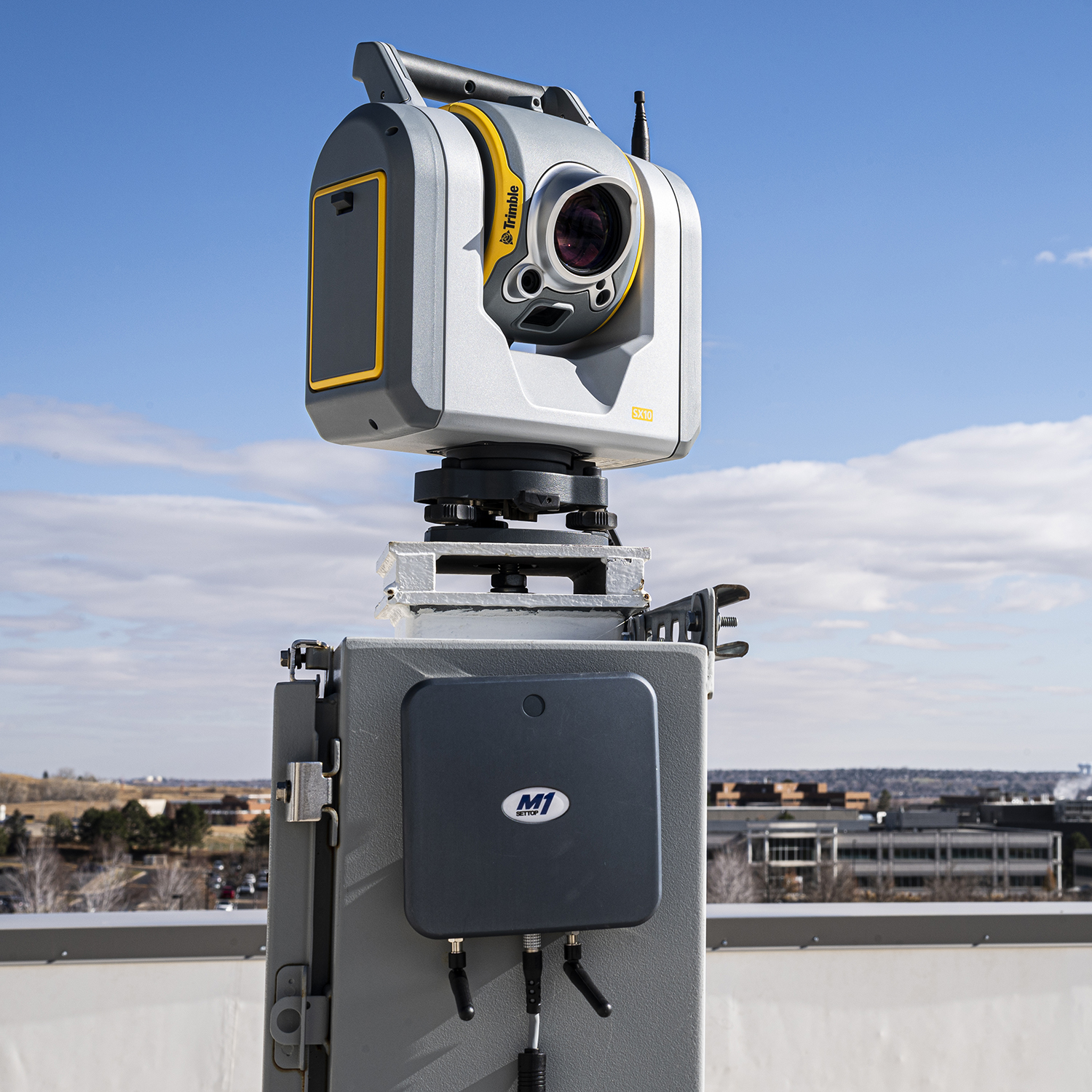

The Specto Technology team is proud to offer the Trimble Settop M1 Monitoring Controller, a robust solution for remotely managing and automating Trimble® total stations in real-time monitoring applications. When paired with Trimble 4D Control™ (T4D), the Settop M1 reliably delivers continuous, high-quality measurement data to support confident decision-making in mining, construction, civil, and structural monitoring projects.
By combining the functionality of a field computer, device server, router, Wi-Fi access point, 4G modem, and remote power switch into a single device, the Settop M1 dramatically simplifies field installation and reduces the amount of equipment required. Its onboard memory ensures uninterrupted data collection—measurement cycles continue even during communication outages, and stored data is automatically transmitted once connectivity is restored.
The Settop web interface provides full remote access for configuring measurement cycles and checking instrument status. Through the IST Connect Cloud Service, users can securely reach the system from anywhere without needing a static IP or complex IT setup.
This online portal also allows field personnel to train or update monitoring points directly on the AMTS—without requiring access to the secured T4D server—making field adjustments faster, safer, and fully permission-controlled.
Key Features
- Integrated field computer, device server, router, 4G cellular modem, Wi-Fi access point, and remote switch for simplified field setup
- Continuous data collection with onboard storage to bridge network interruptions
- Free IST Connect Cloud Service for straightforward, secure central-server connection
- Remote configuration and status checks via user-friendly web interface, available in the field or through the cloud
Product Benefits
- No static IP required
- Intelligent Settop Connect (IST Connect) for simplified remote administration
- Watchdog system and energy-management tools for increased system reliability
- Autonomous scheduling and monitoring directly from the Settop M1
- Low data consumption—sends only processed measurement results
- Internal backup of all measurement data
- Automatic total station detection and reconnection after outages
- Reliable data recovery after any loss of internet connectivity
Typical Applications
- 24/7 automated total station control and measurement scheduling
- Remote power management and continuous system uptime
- Wireless communication to Trimble 4D Control via 4G LTE and integrated Wi-Fi
- Data buffering and local storage to protect against communication disruptions
