Vibration Fundamentals Guide
What Vibration Is (Physics Definition)
- Vibration is periodic motion around a fixed point. It is described by:
- Frequency (Hz): Cycles per second.
- Amplitude: The magnitude of motion.
- Phase: The position within the cycle relative to a reference.
- These parameters determine how vibration interacts with materials, structures, and systems.
- Vibration occurs everywhere, from a pendulum’s swing, to seismic waves from earthquakes and rotating machinery. It is not an abstract concept; its energy transmission with measurable effects.
Why It’s Essential
Vibration can be classified by origin:
Natural Sources
- Earthquakes: High-energy ground motion that impacts large structures.
- Wind loads: Induce oscillations in bridges and tall buildings.
- Ocean waves: Affect marine and offshore infrastructure.
Man-Made (Anthropogenic) Sources
- Machines: Rotating and reciprocating parts.
- Vehicles: Road and rail traffic induce repetitive vibration.
- Human activity: Footsteps, tools, and construction actions.
Vibration also varies by duration:
- Short-term transients: Impact events (e.g., hammer strikes).
- Continuous: Rotating equipment and traffic.
And by affected object:
- Human vibration: Whole-body and hand-arm exposure.
- Machine vibration: Operational condition indicators.
- Structural vibration: Response of buildings and civil works.
- Ground vibration: Propagation through earth and soil layers.
How Vibration Transmits Energy
Vibration is energy in motion. The kinetic energy associated with oscillation can impart stress on materials and structures, affecting integrity and fatigue life. Quantifying vibration energy helps engineers assess resilience and durability.
Vibration and Sound
Vibration becomes sound when oscillatory motion disturbs air pressure, generating pressure waves that travel to a receiver (e.g., a microphone or human ear). Pitch and loudness correlate with frequency and amplitude of the underlying vibration.
Primary Vibration Parameters
- Displacement, Velocity, and Acceleration
- These are the key physical parameters used to describe vibration:
- Displacement (mm): Absolute motion of a point.
- Velocity (mm/s): Rate of change of displacement; often used in structural vibration compliance.
- Acceleration (mm/s² or g): Rate of change of velocity; used in high-frequency and machine diagnostics.
- Velocity and acceleration are preferred in measurement because they produce flatter frequency spectra, improving instrument dynamic range.
Parameter Conversions:
- Velocity = Acceleration ÷ (2πf) for sinusoidal signals.
- Displacement = Velocity ÷ (2πf) or Acceleration ÷ (2πf)².
- These conversions are standard practice in spectral analysis.
Measurement Units
- Metric units apply per ISO standards:
- Displacement: mm
- Velocity: mm/s
- Acceleration: mm/s² or g (~9.81 m/s²)
- Units are consistent across structural, machine, and environmental vibration contexts.
Amplitude and Severity Indicators
Amplitude describes the extent of motion and correlates with severity.
The RMS (Root Mean Square) value is most relevant for energy content—it integrates the time history and correlates directly with potential material fatigue and damage. Higher RMS values signal greater destructive potential.
Peak & Peak-to-Peak:
- Peak shows maximum instantaneous motion.
- Peak-to-Peak shows total swing from positive to negative extremes—useful for stress and clearance checks.
Frequency Analysis and Diagnostics
Frequency analysis breaks down a vibration signal into its constituent components, revealing the sources of vibration and their operational characteristics. A spectrogram or FFT helps isolate machinery faults or structural resonance.
This is essential for targeted mitigation strategies and compliance verification because raw time-domain signals alone do not clarify causal mechanisms.
Vibration Meters (Measurement Instruments)

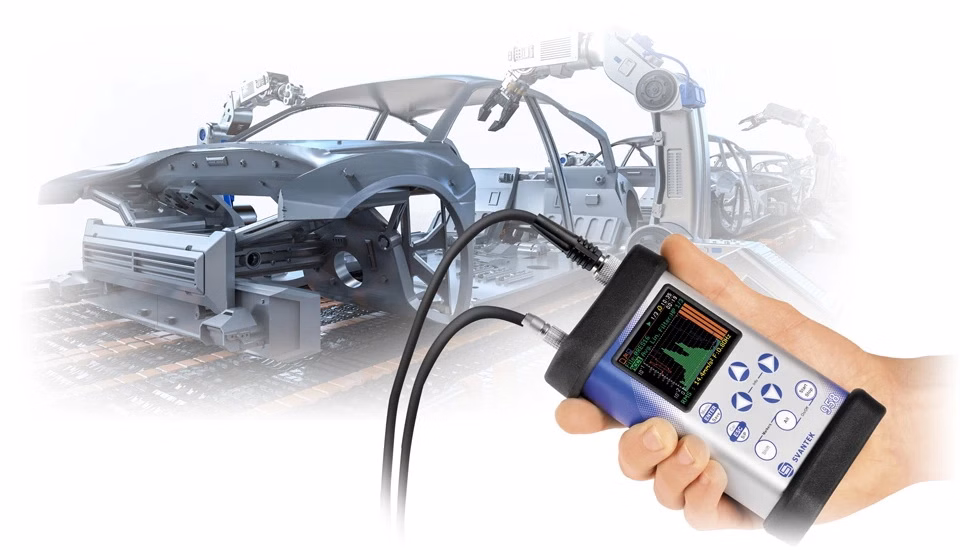

A vibration meter is the central instrument that conditions, processes, and records vibration signals from one or more transducers. Beyond sensing motion, the meter determines how vibration is quantified, stored, analyzed, and reported.
A compliant vibration meter must:
Types of Vibration Sensors
Measurement depends on sensor choice:
- Accelerometers: Measure acceleration across wide frequency ranges; work well for machine and high-frequency vibration.
- Velocity sensors (geophones): Capture velocity directly; ideal for low-frequency structural and ground vibration.
- Displacement sensors: Measure actual motion, useful in structural deformation analysis.
- Laser vibrometers: Non-contact measurement, valuable where physical coupling is impractical.
- Strain gauges: Provide deformation info under vibrational stress.
- MEMS sensors: Compact accelerometers for portable and embedded systems.
Sensor choice must match the frequency range and application context to produce defensible results.
Vibration Testing
Vibration testing evaluates a product’s ability to withstand anticipated forces. It identifies resonant frequencies and potential failure modes, informing design adjustments for durability and safety before deployment.
Testing is a core part of product development for automotive, aerospace, manufacturing, and structural components, and it ensures reliability under operational or environmental vibration loads.
Vibration is oscillatory motion defined by frequency, amplitude, and energy. Its measurement uses displacement, velocity, and acceleration to assess severity, identify sources, and guide mitigation. Frequency analysis, correct sensor selection, and standardized units form the backbone of accurate, defensible vibration assessment.
