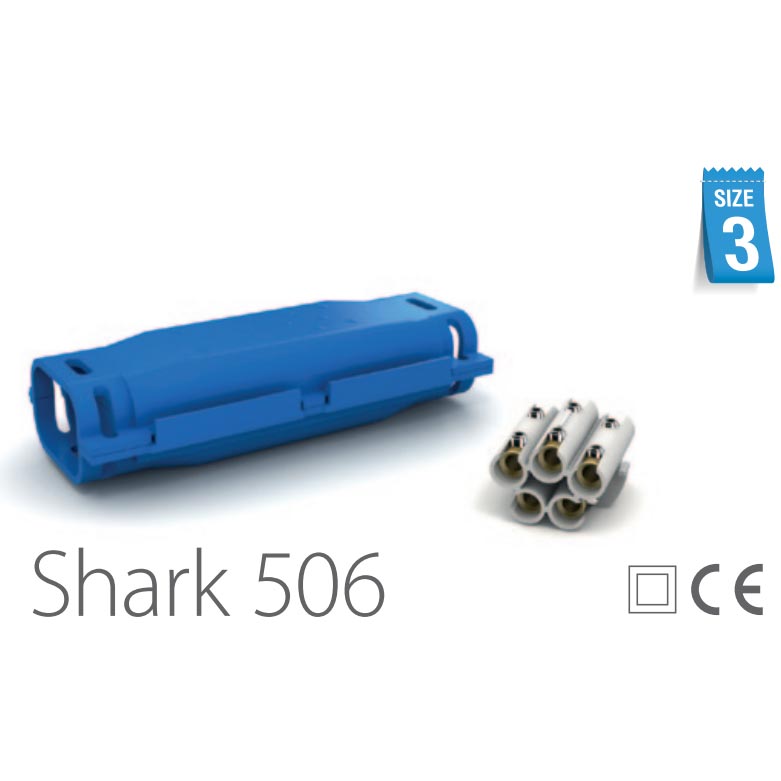

Etelec SHARK 506WS Classic Series Gel Insulated Joint for Straight Connections 0.6/1 KV [1pc, 5 core

Suitable for the straight connection of single-core cables, and for the connection and insulation of electronic boards and components.

$33.00

Availability: 9 in stock

Product Information

SHARK® Classic Series gel insulated joints can be used to make straight connections on 0.6/1 kV single or multicore low voltage cables with up to four cores.

  • Thanks to the greater space available inside the joint, the versions without terminal blocks are suitable for the straight connection of single-core cables, and for the connection and insulation of electronic boards and components.

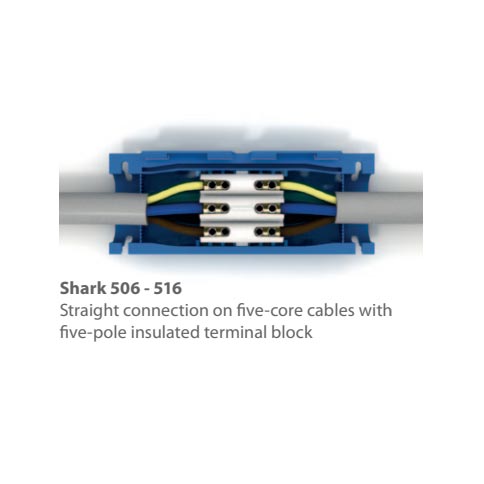

  • The versions with terminal block allow the straight connection with double insulation of cables with up to five cores and are available with tin-plated aluminum connectors for copper-copper, aluminum-aluminum, and copper-aluminum connections on request.

PRODUCT FEATURES:

  • Compliant with CEI EN 50393 standard for low voltage joints
  • Self-extinguishing in accordance with EN 60695-2-11 standard
  • Low smoke and toxic gas emission in accordance with CEI 20-37/2-1 and CEI 20-37/4 standards
  • Protection level: equivalent to IPX8 (CEI EN 60529) tested in water at a depth of one metre (CEI EN 50393 par. 8.6.3)
  • No accidental contact with live parts: the cable ties supplied prevent the reopening of the joint without the use of tools, as required by CEI 64-8 standard
  • Operating temperature: -20° C to 90° C
  • Compliant with directive 2011/65/UE (RoHS 2)

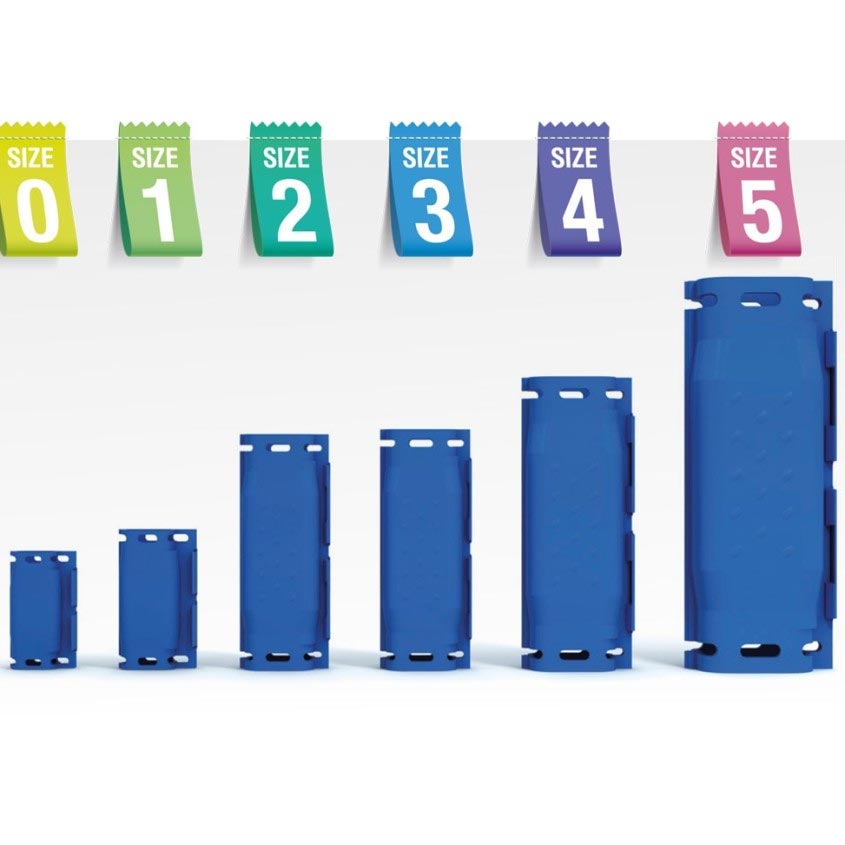

  • 6 sizes for use with a wide range of cables
  • No expiry date

PRODUCT BENEFITS:

  • Ready to use
  • Re-enterable
  • No resin mixing and casting
  • Usable immediately
  • Excellent electrical insulation
  • Good mechanical resistance

TYPICAL APPLICATIONS INCLUDE:

    • Straight connections of single and multicore cables with up to 5 cores
    • Versions without terminal blocks: insulation of joints on multi-paired telecommunications cables and insulation of electronic boards and components
    • Installation in cable ducts, underground, overhead, or underwater
    • Street lighting systems
