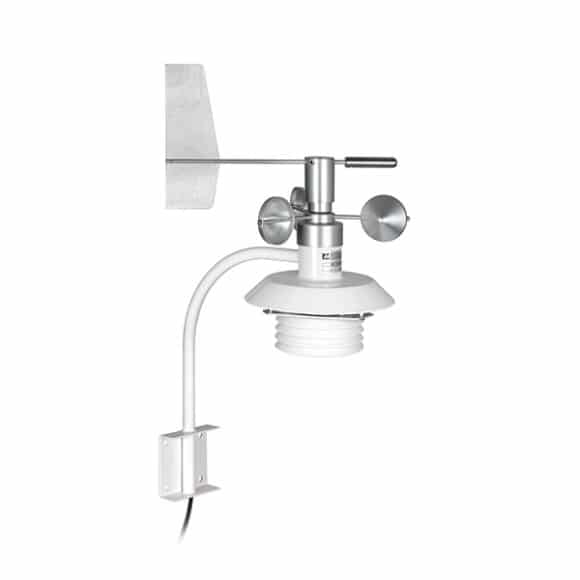

Met One MSO Weather Sensor

Met One MSO Weather Sensor

  • The Met One MSO Weather Sensor measures wind speed and wind direction using conventional cup and vane techniques.
  • All other measurements are housed in a multi-plate naturally aspirated radiation shield to reduce solar radiation errors
Description

Met One MSO Weather Sensor from Specto Technology

Specto Technology is proud to offer the Met One MSO Weather Sensor,  an integrated 5-parameter Weather Station featuring rugged all metal housing.

PRODUCT FEATURES:

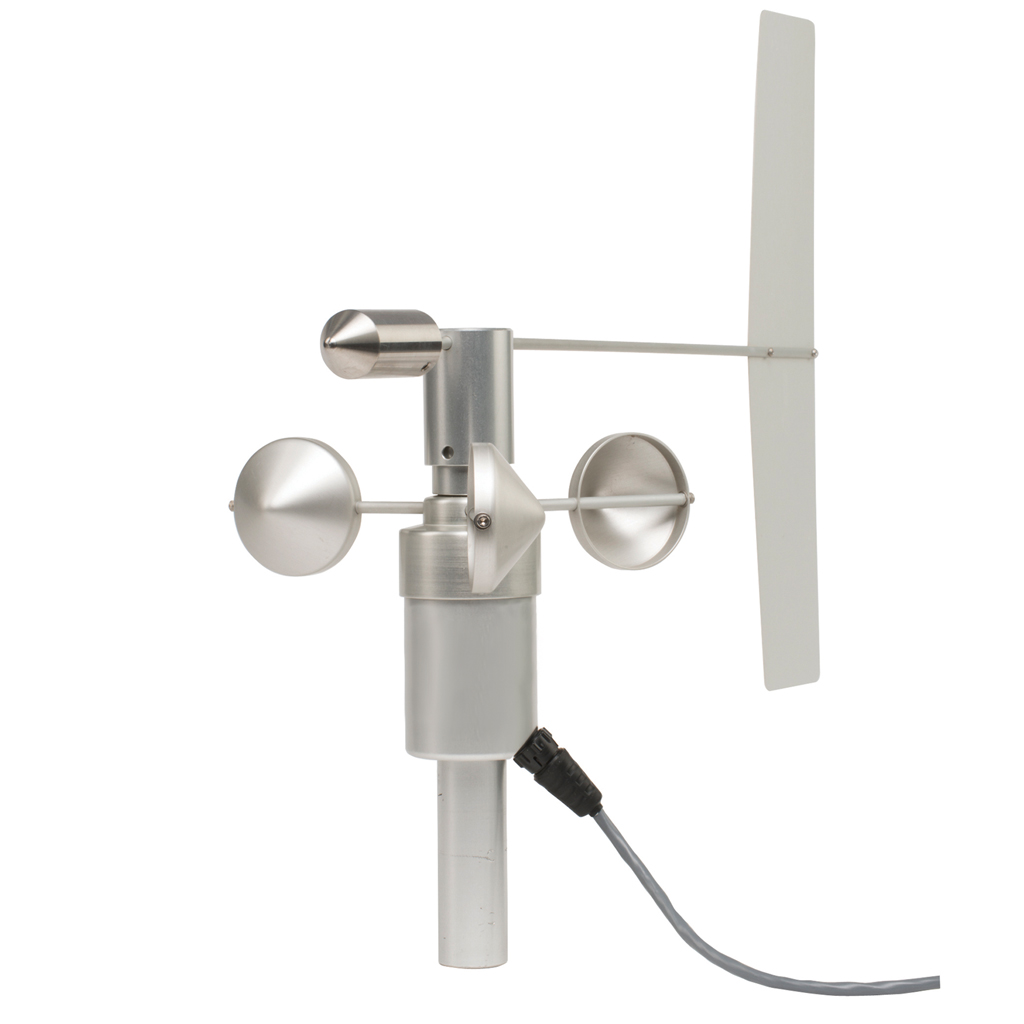

  • Wind Speed and Wind Direction are measured using conventional cup and vane techniques.
  • All other measurements are housed in a multi-plate naturally aspirated radiation shield to reduce solar radiation errors.
  • The temperature sensor is a platinum RTD class 1/3B. Relative humidity is a based on our very accurate solid state sensor designed for continuous exposure to adverse climates.
  • The barometric pressure sensor is a piezo-resistive device designed for robustness, high accuracy needs, as well as long term stability.
  • Offers SDI12, RS232, RS485 outputs.
  • Utilizes Met One 7500 Protocol.
  • Features Integrated Mount and 50ft Cable.
  • Compatible with the following Aeroqual products:
    • AQM 65 compact air quality station
    • Dust Sentry dust and particulate monitor
    • Dust Profiler dust and particulate counter

PRODUCT BENEFITS:

  • Shield is constructed of a series of concentric white aluminum plates, which allow air to fl ow through the shield, while blocking direct solar rays
  • Digital outputs are presented as a data stream every second, or upon command by data system
  • Designed for robustness, high accuracy needs, as well as long term stability

TYPICAL APPLICATIONS INCLUDE:

  • Ambient Monitoring
  • Environmental Surveys
  • Fenceline Monitoring
  • The Met One MSO delivers the following measurements all in one package:
    • Wind speed
    • Wind direction
    • Air temperature
    • Relative humidity (RH)
    • Barometric pressure
