VW Analyzer Readout

Product Information

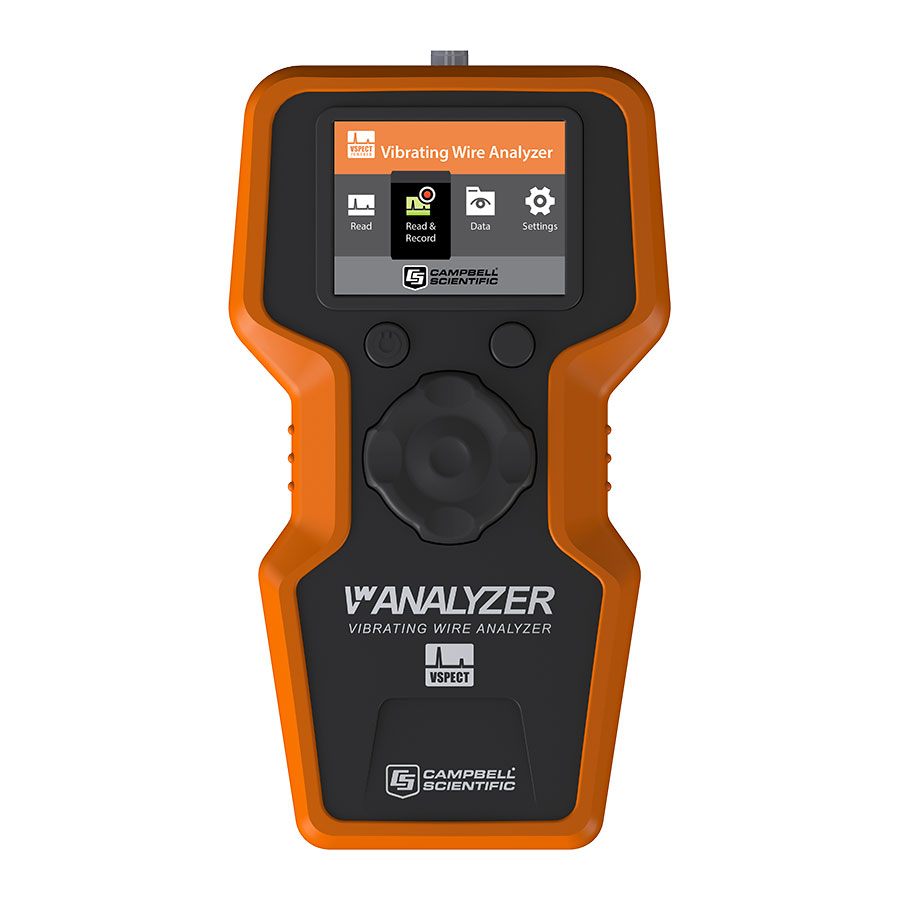

The Vibrating-Wire Analyzer (VWA) is the most innovative vibrating-wire field reader available. Field ready to quickly measure a sensor, save data, and communicate results with custom PDF reports and spreadsheet output. VWA measurements are geolocated with an integrated GPS, allowing the device to verify and provide guidance to sensor locations. The VWA uses spectral-analysis technology (VSPECT™) to provide the best vibrating-wire measurement possible while filtering out environmental and electrical noise. The large color display offers an easy-to-view graphical presentation of the data.

Product Benefits & Features

  • VSPECT™ measurement quality
  • PDF report output
  • Field ready
  • Integrated GPS
  • Easy to use
  • Graphical display
  • Measures all vibrating-wire sensors
  • Low-power operation

Overview

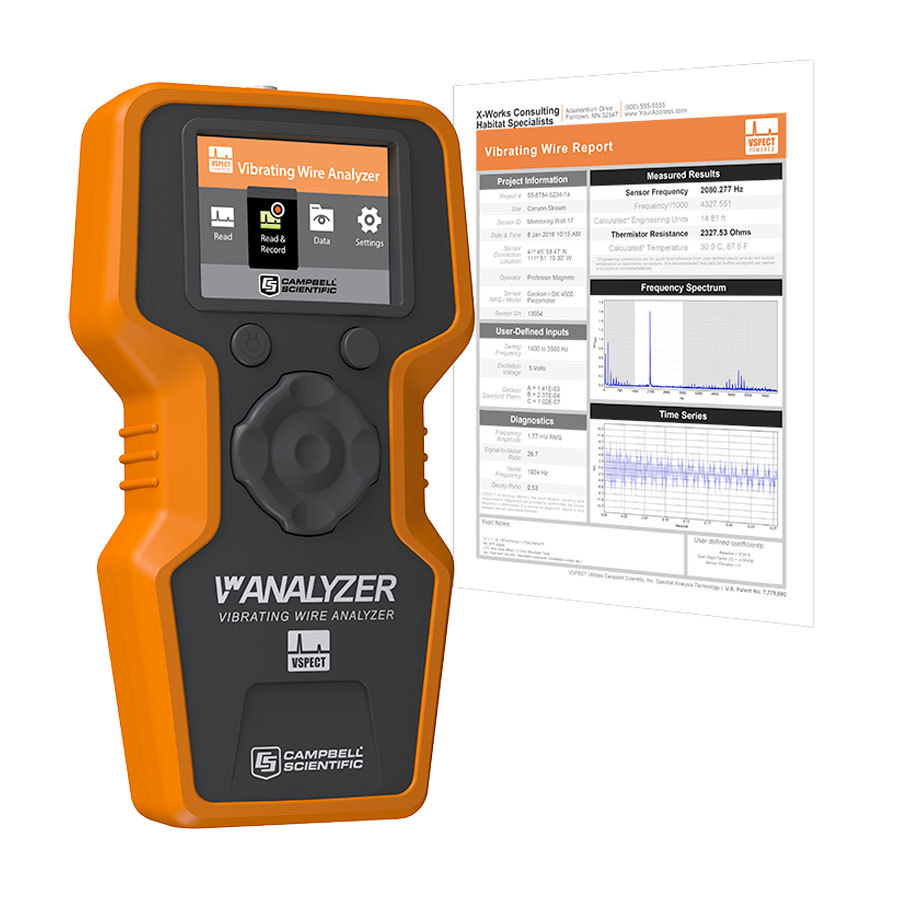

The Vibrating-Wire Analyzer (VWA) uses patented VSPECT™ technology for the most reliable vibrating-wire measurements available. The VWA converts measurements to engineering units, generates a printable PDF report, and saves a CSV summary file. The graphical display allows confirmation of sensor output and operation. VSPECT™ technology eliminates disruptive noise interference and provides sensor diagnostics for the best measurement possible. VSPECT™ noise immunity allows gages that are otherwise unreadable to be evaluated with confidence.

A Project File maintains Site/Sensor information for 40 unique sites with 22 sensors per site. Site/Sensor locations are geolocated, allowing the internal GPS to guide a user directly to a sensor location. Site/Sensor and user information can be created or edited on the device or with a computer using the free VwProjects software.

Note: The VWA can be connected to a computer and is treated like an external memory device (flash memory drive) to transfer data.

Compatibility

The Vibrating-Wire Analyzer (VWA) can measure all vibrating-wire sensors including, but not limited to, strain gages, piezometers, pressure transducers, tiltmeters, crackmeters, and load cells. The VWA has an integrated sensor library that contains common sensors from common vibrating-wire manufacturers; use of the sensor library allows the VWA to output data using engineering units.
